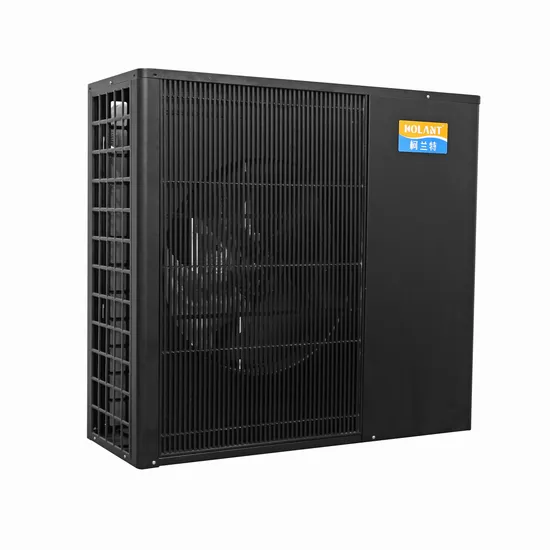

6kw, 9kw, 12kw, 16kw, 19kw Kolant Polarheat Heating Cooling Hot Water High Temperature R290 Air Source Heat Pump
| US$1,000.00-1,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
RJP-60H/N9-BPR
Cop
5.98
Noise
46 ~ 50 dB (a)
Compressor
Mitsubishi
Compressor Type
Twin Rotary
Max.Water Tempe
60 Degrees Celsius
Running Temperature
-25 ~ 43 Degrees Celsius
Transport Package
Carton
Specification
6kw ~ 19kw
Trademark
Kolant
Origin
Guangzhou, China
HS Code
8418612090
Product Description
Specifications:
| Model name | RJP-60H/N9-BPR | RJP-90H/N9-BPR | RJP-120H/N9-BPR | RJP-160H/N9-BPR | RJP-120H/SN9-BPR | RJP-160H/SN9-BPR | ||
| Power supply | V / Ph / H | 220V / 50Hz | 380V/50Hz | |||||
| Heating A 7/6ºC W 30/35ºC | Capacity | kW | 6.40 | 9.15 | 12.20 | 16.00 | 12.20 | 16.00 |
| Rated input | kW | 1.33 | 2.03 | 2.70 | 3.41 | 2.70 | 3.41 | |
| COP | 4.81 | 4.51 | 4.51 | 4.69 | 4.51 | 4.69 | ||
| Heating A 7/6ºC W 40/45ºC | Capacity | kW | 5.71 | 8.17 | 10.89 | 14.29 | 10.89 | 14.29 |
| Rated input | kW | 1.58 | 2.41 | 3.21 | 4.05 | 3.21 | 4.05 | |
| COP | 3.62 | 3.39 | 3.39 | 3.53 | 3.39 | 3.53 | ||
| Heating A 7/6ºC W 50/55ºC | Capacity | kW | 5.52 | 7.89 | 10.52 | 13.79 | 10.52 | 13.79 |
| Rated input | kW | 1.92 | 2.92 | 3.89 | 4.91 | 3.89 | 4.91 | |
| COP | 2.88 | 2.70 | 3.21 | 2.81 | 3.21 | 2.81 | ||
| Heating A -7/-8ºC W 30/35ºC | Capacity | kW | 5.20 | 7.44 | 9.92 | 13.01 | 9.92 | 13.01 |
| Rated input | kW | 1.44 | 2.19 | 2.93 | 3.69 | 2.93 | 3.69 | |
| COP | 3.62 | 3.39 | 3.39 | 3.53 | 3.39 | 3.53 | ||
| Heating A -7/-8ºC W 50/55ºC | Capacity | kW | 4.49 | 6.41 | 8.55 | 11.21 | 8.55 | 11.21 |
| Rated input | kW | 2.07 | 3.16 | 4.21 | 5.31 | 4.21 | 5.31 | |
| COP | 2.17 | 2.03 | 2.03 | 2.11 | 2.03 | 2.11 | ||
| Heating A -12/-14ºC W 30/35ºC | Capacity | kW | 4.74 | 6.78 | 9.04 | 11.85 | 9.04 | 11.85 |
| Rated input | kW | 1.52 | 2.31 | 3.09 | 3.89 | 3.09 | 3.89 | |
| COP | 3.12 | 2.93 | 2.93 | 3.05 | 2.93 | 3.05 | ||
| Heating A -20/-ºC W 30/35ºC | Capacity | kW | 4.03 | 5.75 | 7.67 | 10.06 | 7.67 | 10.06 |
| Rated input | kW | 1.58 | 2.41 | 3.22 | 4.06 | 3.22 | 4.06 | |
| COP | 2.54 | 2.39 | 2.39 | 2.48 | 2.39 | 2.48 | ||
| Cooling A35/24ºC W 12/7ºC | Capacity | kW | 6.25 | 8.85 | 10.80 | 14.85 | 10.80 | 14.85 |
| Rated input | kW | 1.42 | 2.28 | 2.88 | 3.97 | 2.88 | 3.97 | |
| EER | 4.40 | 3.88 | 3.75 | 3.74 | 3.75 | 3.74 | ||
| Seasonal space heating energy efficiency class | LWT at 35ºC | A+++ | A+++ | A+++ | A+++ | A+++ | A+++ | |
| LWT at 55ºC | A++ | A++ | A++ | A++ | A++ | A++ | ||
| SCOP | LWT at 35ºC | 4.75 | 4.68 | 4.50 | 4.68 | 4.50 | 4.68 | |
| LWT at 55ºC | 4.12 | 4.06 | 3.90 | 4.06 | 3.90 | 4.06 | ||
| SEER | LWT at 7ºC | 4.72 | 4.65 | 4.47 | 4.65 | 4.47 | 4.65 | |
| MOP(Maximum overcurrent protection) | A | 11.5 | 17.2 | 22.9 | 28.9 | 7.9 | 9.9 | |
| Water pressure drop | kPa | 50 | 50 | 50 | 50 | 50 | 50 | |
| Refrigerant system pressure (Max. / Min.) | 3.1 MPa/1.5MPa | |||||||
| Refrigerant | Type | R290 | ||||||
| Charged | kg | 1.1 | 1.2 | 1.4 | 1.6 | 1.4 | 1.6 | |
| GWP value | 3 | |||||||
| Equivalent CO2 | Ton | 0.0033 | 0.0036 | 0.0042 | 0.0048 | 0.0042 | 0.0048 | |
| Compressor | Type | DC inverter | ||||||
| Brand | MITSUBISHI | |||||||
| Model | SPB280F | MPB42 | MPB42 | LPB65 | MPB42 | LPB65 | ||
| Quantity | 1 | 1 | 1 | 1 | 1 | 1 | ||
| Capacity | kW | 5.30 | 7.70 | 7.70 | 11.90 | 7.70 | 11.90 | |
| Input | kW | 1.44 | 2.20 | 2.20 | 3.40 | 2.20 | 3.40 | |
| Air side heat exchanger | Material | Fin copper tube | ||||||
| Rows | 2 | 2 | 2 | 2 | 2 | 2 | ||
| Tube size | mm | Φ7 | Φ7 | Φ7 | Φ7 | Φ7 | Φ7 | |
| Fan motor | Fan type | Axial Fan | ||||||
| Motor type | Brushless DC motor | |||||||
| Motor Quantity | 1 | 1 | 1 | 2 | 1 | 2 | ||
| Speed | rpm | 300~850 | ||||||
| Throttle type | Electronic expansion valve | |||||||
| Water side heat-exchanger | High efficiency tank | |||||||
| Sound power level6 | dB | 45 | 46 | 46 | 48 | 46 | 48 | |
| Water resistance | IPX4 | |||||||
| Water pipe connection | Inlet | mm | DN25(1'') | DN25(1'') | DN25(1'') | DN25(1'') | DN25(1'') | DN25(1'') |
| Outlet | mm | DN25(1'') | DN25(1'') | DN25(1'') | DN25(1'') | DN25(1'') | DN25(1'') | |
| Net/Gross weight | Net | kg | 68 | 75 | 98 | 108 | 98 | 108 |
| Dimension (L×H×D) | Net | mm | 1115×425×855mm | 1115×425×855mm | 1115×425×1055mm | 1115×425×1405mm | 1115×425×1055mm | 1115×425×1405mm |
| Packing | mm | 1135×490×1013mm | 1135×490×1013mm | 1135×490×1213mm | 1135×490×1563mm | 1135×490×1213mm | 1135×490×1563mm | |
| Loading quantity (20GP/40GP) | sets | |||||||
| Operating temperature | Cooling | ºC | - 5 to 43 | |||||
| Heating | ºC | - 30 to 35 | ||||||
| DHW | ºC | -30 to 43 | ||||||
