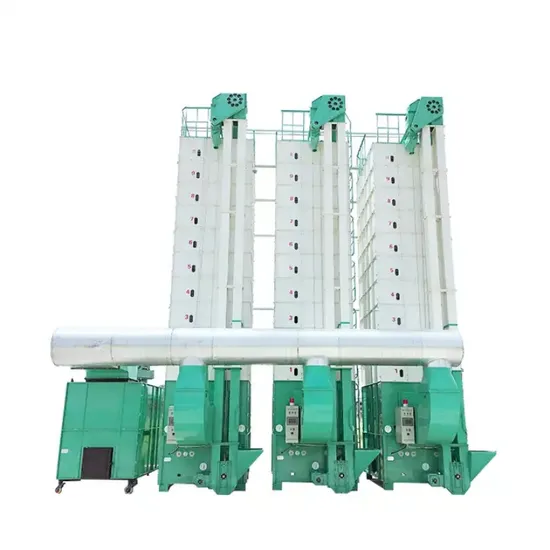

High Capacity Batch Circulating Grain Dryer Rice Paddy Dryer Agriculture Mechanical Drying Machine Price

Product Description

The grain dryer is an ideal drying equipment for drying grain and grain. It can be used for one machine. Dry rice, rapeseed, soybean, wheat, corn, peanut and other grains can be dried on the same equipment to meet different grain seasons. Drying, drying of feed grain, commercial grain and seed grain can be carried out to improve the utilization rate and reduce the idle time of equipment. The drying equipment is very suitable for use in food processing plants, lexical processing plants, farms, grain stations, grain farmers, cooperatives, grain depots, grain and oil processing plants and other user groups.
1.put grain into the dryer in batch then circulate orderly by the interaction of electric parts and structural parts.the hot air from the husk burner gets into the Mixed-flow type structure layer to across and hest the grain under thr action of two electric fans.the air flows and takes off the moisture of the grain.the exhaust gas is excluded out of the machine by the exhaust fan. when the moisture reaching to the set value.the machine stops working.
2.The hot blast stove equipped with the grain drying equipment is an energy-saving and environment-friendly hot blast stove. The hot blast stove supplies heat to indirectly dry the grain. During the drying process, the grain continuously circulates and the grain rubs against each other. The awns, velvet hair, etc. on the surface of the grain are removed, and the dust is removed from the machine to improve the cleanliness of the dried grain. The production cost of this grain dryer is low. The supporting drying oven can use coal, electricity, natural gas and such as rice husk, corn broken shaft, wood foot and so on as dry heat source, dry Low cost, energy saving and environmental protection
Product Parameters

model	15T
structure	Batch type circulating
capacity	15ton per batch
Total weight	3000kg
dimension	4320*2492*10090mm
Rated air flow	6677-13353m^3/h
Fuel consumption(rice hull)	30-40kg/h
fuel	Rice hull/firewood/straw/anthracite
Total power	15kw
Loading time	50-70min
Unloading time	50-70min
Drying rate	0.5-0.7%/h
Safety device	Grain temperature sensor,fault alarm,full load buzzer,over otemperature alarm,thermal-over relay,hot air temperature sensor,overload protection device,leakage protection device
Standard device	Online moisture monitor,conveying system,unloading system,drying system,tempering system.elevator,exhaust fan in low noise,automatic control system

1.Advanced batch type and low temperature circulation
dryingtechnology in counter flow Improve the drying
speed and qualityefficiently
2.Updated unloading structure design Avoid blocking, leakage, grain remaining efficiently and ensure customers' earnings
3.The quality of the dried grain , is better than national standard ( JB/T10268) It's proved that the crack rate is less than 3% and the grind rate is less than 0.5%,which are both superior to the national standard.
4.Advanced indirect heating technology which is non-pollution and can remove dust of the grain.
5.Wide applied range Widely used for drying paddy ,wheat,corn, rapeseed and other seeds.
