Affordable 400t 700 Gram Water Bottle Production Equipment

Product Description

Product Description

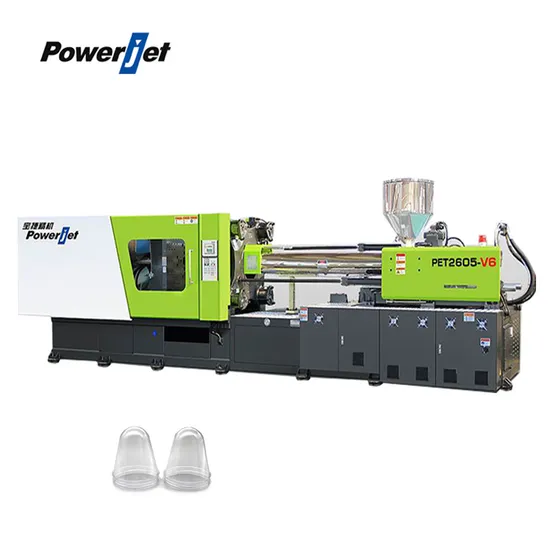

PET PREFORM INJECTION MOLDING MACHINE
Powerjet PET Preform Injection Molding Machines are specialized for different sizes of PET preforms. With PET special screw, it highly increases the plasticizing speed and shot weight.

Shoot Weight - 4975g(Max)
Clamping Force - 128~680(Ton)
Motor Type - Servo Or Variable
Applications - Specialized For Different Sizes Of PET Preform

FEATURES:
1:PET Special Screw
PET screw highly increases the plasticizing speed and shot weight, lowers the plasticizing temperature and AA value, also achieves better product transparency.
2:Energy-Saving 30%~50%
The servo motor control system can save energy by 30%~50%, while the variable pump control system can save energy by 25% ~ 45%.
3:Pressure Synchronization System
Optional with pressure holding and charge at the same time, which can increase productivity by 15%~25%.
4:Max Shot Weight
Different models are available for the choice of customers, Max shot weight: 5000g

Machine Details

	DESCRIPTION	UNIT	PET4500L-V6/S6
CLAMPING UNIT	Clamping force	KN	4000
	Opening stroke	mm	710
	Max.datlight	mm	1440
	Platen size	mm	1050*1050
	Space between bars	mm	740*720
	Max.mold height	mm	730
	Min.mold height	mm	300
	Ejector stroke	mm	210
	Ejector force	KN	182
INJECTION UNIT	Screw diameter	mm	100
	Shot volume	cm3	3966
	Screw stroke	mm	505
POWER UNIT	Hydraulic system Pressure	MPa	17.5
	Pump motor power	KW	55/25.3+30.8
	Heater power	KW	42
