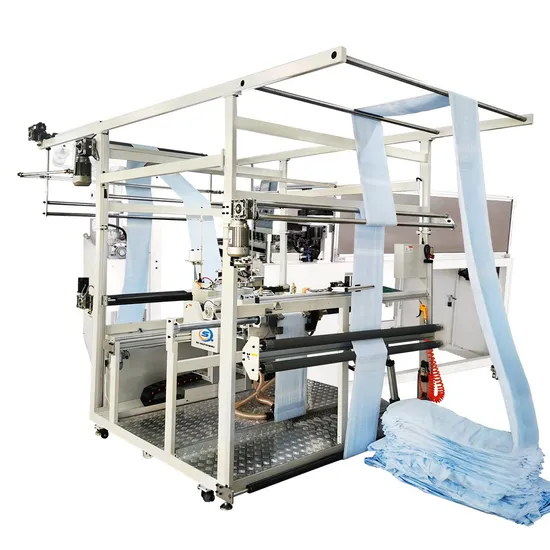

Sq Brand Terry Towel Length Hemming Machine with Folded Label Attachment

Product Description

Product DescriptionSpecification
1.Sewing width: 260mm-1000mm(machine working width 1200mm,the final towel width 25cm-108cm)
2.Three needle and five thread stitching, using optical fiber to detect the edge of the towel, and the sewing machine automatically follows the edge of the towel. 3.Automatically adjust the feeding direction to center the towel. 4.Multiple sets of servo motor systems with fully synchronized technology, sewing, traction, and conveyor rollers are fully synchronized, and the towel sewing process has a smooth material surface (a unique technology of the company that other manufacturers do not possess). 5.The sewing machine and the traction feed roller are completely separated and pulled separately by two servo motors, so it is possible to set the sewing needle code freely, with simple settings and touch screen parameter settings (a unique technology of the company that other manufacturers do not have) 6.Left and right sewing system, using separate servo motors for traction, can easily adjust the synchronization of left and right sewing speed (touch screen parameter setting) 7.All traction, conveying, and discharging speeds of the equipment can automatically follow the sewing machine speed without the need for setting. 8.The folding length of the discharge towel can be set from 0-1.2 meters (touch screen parameter setting) 9.Sewing speed up to 15 meters per minute, stable operation at 12-13 meters per minute (depending on needle size) 10.Automatic parking without fabric on the fabric side. 11.Remote control of high and low speed switching, remote control of parking function (personnel can also operate the machine while on the feeding or discharging side, for safety reasons, remote control does not have the function of starting equipment) 12.Total power of the equipment: 4.9kw,380V,50HZ

13.Equipment gas usage: 5 bar
14.Curling width 7mm
15.Machine size:4800*1800*3000

16.machine weight:1000KG
Production of Longitudinal hemming machine
Stock machine is available.Very fast delivery time. Automatic length hemming machine
Working width 20-125cm (adjustable)
Speed 15-18m/min
Package size 2.3x2.x2.3m (L X W X H)
Standard configuration: sewing machine single needle Ronbow brand,China,double head
single needle chain stitch lock stitch Double needle chain stitch
Cross Hemming Machine Specifications1,Auto thread cutting(thread-ends within 2MM)extraordinary quality.
2,Auto four-side folding and sewing,faster speed.
3, Auto label-sewing(multiple labels)
4, Auto fabric cutting and thread trimming
5, Auto Stack-up
6, Intelligent Touch Operating System
7,SPV Data Management System(Cloud Management)
8, Auto Button-Start,Convenient Operation
9, Auto Edge-cutting,Size-Standardizedtowel cutting machine,with 5 or 6 knives(customized)
Product Parameters

Main Parts Name	Brand	Original
Sewing Machine-Right	Pegasus	Japan
Sewing Machine-Left	Own brand	China
PLC	Siemens	Germany
Touch screen	Siemens	Germany
Low voltage electrical appliances	Schneder	France
Optoelectronic sensors and fiber optic sensors	Panasonic	Japan
Proximity switch	IFM	Germany
Servo System	Weichuang	China
Pneumatic components,	Airtank	Taiwan
Bearings	Harbin	China
Linear guide rail	Cyber	China
Edge cutting knife:processed with special tungsten steel technology, wear-resistant and durable		China

Our AdvantagesMain Maintenance Cost is lower
User-Friendly Operation
Competitive Pricing,the best price in China
We are manufacturer of terry towel,also produce the machine for weaving towel and towel sewing machine.
We can supply whole production line for terry towel
After Sales Service1.full communication before making contract Comminicate on time after making contract
2.Arrange visa and air ticket in advance when the goods arrive at customer's factory.
3.Send good engineer to guide customer to install the equipment and trial the machine.
4.10days more Training guidance is available after installation trial.
5.Customer can send 2-3 engineer to China,we will arrange them to get trainning in good factory,to learn management,working skill,and operation training.
6.Online service is available Spare parts for reservition:we will advise customer to buy,also will give some for free.
SQ full product list

Name	Model	Usage	Advantages
air jet loom	SQ930	weave all fabric	High speed,low price
air jet loom	SQ910	calico or gauze fabric	low price
air jet loom	SQ710	gauze fabric	lower price
air jet loom	SQ720	glassfiber fabric	high output
air jet loom	SQ930M	terry towel	high output,low price
air jet loom	SQ810	velvet fabric	high output,low price
water jet loom	SQ822	filament heavy fabric	low price
water jet loom	SQ408	light weight fabric	high speed
water jet loom	SQ8100	high quality polyester fabric	good quality
water jet loom	SQ857	PP PE fabric for tarpaulin	good quality,low price
warping machine	SQ-YGA	Direct warping,for gauze	good quality
split warping machine	SQ188	for mono yarn	low price
sizing machine	SQ-HT	cotton yarn,blend yarn,short fiber yarn	good quality,low price
sizing machine	SQ-JSD	filament yarn	good quality
medical gauze production line		weaving-bleaching-final packing	more experience
terry towel production line		warping-weaving-dyeing-sewing	save customer time
cotton/rayon fabric production line		warping-sizing-weaving-packing	save customer engergy
shemagh loom		shemagh yashmagh Arab scarf weaving machine	more experience
leno loom		leno fabric weaving machine	more experience

Terry Towel Production Line
Warping-Weaving-Dyeing-Sewing
Normal Fabric Production line
Warping - Sizing - Weaving (with all assistant equipment)
Medical gauze production line
Warping - Weaving - Bleaching - Gauze machine(cutting,folding,rolling,packing machine)
