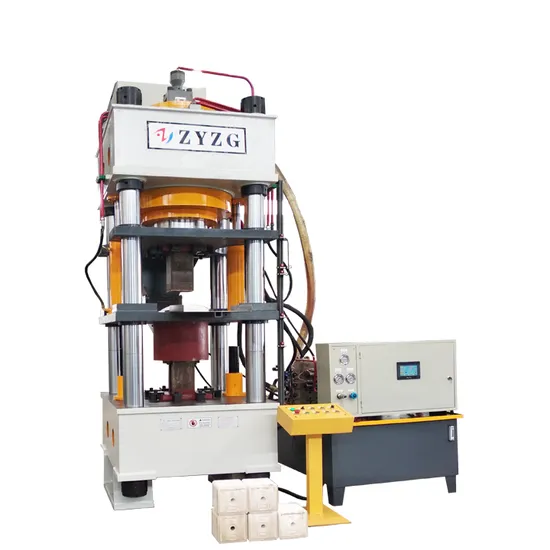

Animal Feed Process Mineral Block Making Machine
| US$10,000.00-30,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
YQ32 salt block press machine
Processing Object
Mixed Feed
Processing Technics
Mixing-before-Crushing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Screw Granulator
Bulking Machine Type
Twin Screw Bulking Machine
Expanding Method
Dry Expansion
Condition
New
Applicable Materials Shape
Powder
Warranty
1 Year
Color
White Hydraulic Press Briquetting Machine
Name
Animal Feed Process Mineral Block Making Machine
Voltage
220V or 380V
Package
Container
Function
Mineral Block Making Machine for Birds/Deer/Horse
Keyword
Salt Licking Block Hydraulic Press
Power Source
Cattle Breeding Farming Block Making Machine
Usuage
Automatic Hydraulic Press
Transport Package
by Ship/by Container
Specification
1350*1050*3700mm
Trademark
CNZY
Origin
China
HS Code
8462919000
Production Capacity
100 Sets Per Month
Product Description
animal feed process mineral block making machineparameter of mineral block making machine
| parameter name | Unit | YQ32-63A | YQ32-63B | YQ32-100A | YQ32-100B | YQ32-160 | YQ32-200A |
| Nominal force | KN | 630 | 630 | 1000 | 1000 | 1600 | 2000 |
| Hydraulic system maximum pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 |
| Max opening height of the slide | mm | 500 | 700 | 800 | 800 | 800 | 800 |
| Max stroke of the slide | mm | 360 | 400 | 500 | 500 | 500 | 400 |
| Workbench effective area | mm | 410×450 | 610×500 | 630×550 | 750×700 | 660×600 | 800×800 |
| Ejector cylinder nominal force | KN | 100 | 100 | 200 | 200 | 400 | 400 |
| the stroke of the eject | mm | 160 | 160 | 200 | 200 | 200 | 220 |
| Slider speed | down mm/s | 100 | 100 | 100 | 100 | 100 | 100 |
| press mm/s | 5-10 | 5-10 | 5-10 | 5-15 | 5-10 | 5-10 | |
| return mm/s | 90 | 90 | 90 | 90 | 90 | 90 |
Characteristic of animal feed process mineral block making machine:
The main components of the mineral block making machine are:
1 Main machine: It consists of frame, main hydraulic cylinder, pusher hydraulic cylinder, bottom plate hydraulic cylinder, matching mold frame, mold and indenter.
2 Hydraulic station: It consists of motor, hydraulic pump, pump protection device, control valve block and piping system for connecting briquetting machine.
3 console: consists of an electrical system and a plc control system.
animal feed process mineral block making machine advantage:
Salt brick machine features
1. Easy to operate, clean and convenient.
2, full-featured, to solve the needs of different users.
3, the application of more raw materials, to meet the diversified demand for salt bricks.
4. The quality of the salt bricks is pure and nutritious.
5, pure physical suppression, safety and health.
6, adjustable compression
function of mineral block making machine for birds/deer/horse/goats
| Four column hydraulic press machine | function of machine |
| deep drawing press machine | deep drawing tray/wheelbarrow deep drawing water/kitchen sink deep drawing Aluminum pan/pot deep drawing iron pot/basin deep drawing Vessel dish end |
| stamping machine | stamping shovel making machine stamping coin making machine metal sheet/tag stamping machine stainless steel utensils stamping stainless steel pipe stamping steel door stamping machine metal plate/steel hole stamping |
| powder forming press machine | Aluminum/Metal Chip Briquette melamine dinner set making machine salt lick mineral block making machine |
pressed product:
The animal feed process mineral block making machine is a series of animal husbandry products of hydraulic briquetting machine launched by our company. It is specially designed for the development of cattle and sheep livestock industry and is a professional production equipment for mineral nutrient salt blocks on the modern market.
