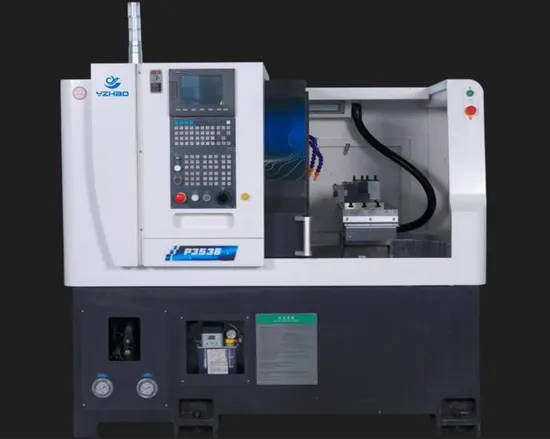

Hot Selling in North America Durable and Sturdy CE Certified Heavy P3538 CNC Metal Lathe

Product Description

Detailed Photos


Product Parameters

Parameter

Unit

P3538

Max. Swing Diameter Over Bed

mm

360

Max. Turning Diameter

mm

200

Max. Turning Length

mm

380

Center Height from Spindle to Tool Table

mm

50

Center Height from Spindle to Ground

mm

≈1080

X Axis Travel

mm

320

Z Axis Travel

mm

415

Spindle Nose Size

N/A

A2-5

Hydraulic Clamping

collet

35

Spindle Bore Diameter

mm

47

Max. Bar Capacity (inner/outer)

mm

35/25

Spindle Motor Power

kw

8.5

Spindle Rated Speed/Max. Speed

r/min

3700/6000

Spindle Rated Torque/Max. Torque

N

22/84

X/Z Axis Rapid Traverse (GO)

m/min

20

Tool Holder Quantity

Piece

5

Tool Shank Size

mm

16

Boring Tool Holder

mm

φ20

X/Z Axis Rapid Traverse (GO) axis Repeatability

mm

0.003

Cooling Tank Capacity

L

42

Hydraulic Tank Capacity

L

20

Machine Full Loading Power

kw

12

Dimension(L x W x H)

mm

1795 x 1428 x 1928

Total Machine Weight

kg

1550

Warranty

Month

18

Standard Configuration

No.

Item

Brand/Model

From

Qty

1

Lathe bed

Horizontal flat bed HT300 casted iron

China

1

2

CNC system

Syntec 22TA

Taiwan

1

3

Servo Motor

Syntec

Taiwan

1

4

Main spindle

Gongtie Motorized Spindle

China

1

5

Spindle driven motor

Syntec SMH Series

Taiwan

1

6

Spindle coder

Syntec

Taiwan

1

7

Spindle bearing

KOYO

Japan

5

8

Spindle coolant system

Xinfu

China

1

9

Screw

PMI 2508 ball screw

Taiwan

2

10

Guide way

PMI 25 roller linear guide way

Taiwan

4

11

Axes motor

Syntec AM3

Taiwan

2

12

Hydraulic System

Seven Ocean

Taiwan

1

13

Lubrication System

Ishan

Taiwan

1

14

Cooling system

Luikar

Taiwan

1

15

Tool box

Gongtie

China

1

16

Low pressure electrics

Schneider

France

1

Delivery item with machine
No.		Item									Qty.					Remark
1		Operating manual									1
2		Certification									1
3		Packing list									1
4		Electric schematic diagram									1
5		CNC system operating manual														PDF
6		Maintain manual														PDF
7		Parameter manual														PDF
