New Design19"Desktop Capacitive Touch Monitor HDMI Waterproof and Vandalproof
Basic Info.
Model NO.
CDT190E-CPF05
Touch Screen Type
Capacitive
Type
Color
Response Time
30ms
Viewing Angle
IPS
Display Technology
TFT
DOT-Matrix Graphic LCD Module Type
Row/Column Control Type
LCD Drive Mode
Multiplex Drive LCD Module
Customized
Non-Customized
Transport Package
One Unit in One Carton
Trademark
CJTouch
Origin
China
HS Code
8528591090
Production Capacity
200PCS/Week
Packaging & Delivery
Package Size
53.00cm * 23.00cm * 51.00cm
Package Gross Weight
10.000kg
Product Description
Product Description19"Desktop touch monitor with VGA and HDMI Waterproof and Vandalproof
Advantage of our projected capacitive touch monitor:
· Industrial Desgin With Excellent Durablity
· PCAP Technology Multi Touch 5 Touch Points OR 10 Touch Points
· IP68 Touch Screen Surface Water-Proof Sealled
· 3MM Enhanced Glass With Vandal Proof Resistance
· High Light Transmission Clear Glass
· Easy to Use:Plug and Works on Windows/Linux/(Android)
· Perfect Solutions For Use In Public
· VESA Mounting and Rear Mounting
· Elo PCAP Open Frame Dimension & Fixation Compatiblity
· 18 Month Warranty
· OEM/ODM& Customized Option: Brightness/Computer Integrated Inside/Etc
· Factory Competitive Price & Fast Delivery

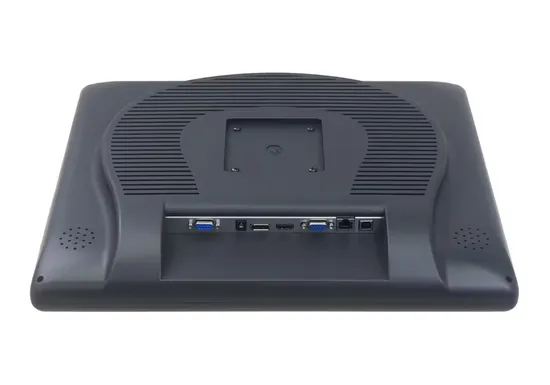

Detailed Photos
Product Parameters
Open Frame Touch Monitor Parameters
| General | |
| Model | CDT190E-CPF05 |
| Series | Water-proof and Open frame |
| LCD Type | 19" Active matrix TFT-LCD |
| Video Input | VGA, HDMI |
| OSD controls | Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External brick Input (line) voltage: 100-240 VAC, 50-60 Hz Output voltage/current: 12 volts at 4 amps max |
| Mount Interface | VESA 75mm and 75mm Mount with base |
| LCD Specification (Please refer to this model--M195RTN01.0) | |
| Active Area(mm) | 376.32 × 301.06mm (H×V) |
| Resolution | 1280×1024 |
| Dot Pitch(mm) | 0.294×0.294 mm |
| Nominal Input Voltage VDD | 5.0V (Typ.) |
| Viewing angle (v/h) | 85/85/80/80 (Typ.)(CR≥10) |
| Contrast | 1000 : 1 (Typ.) |
| Luminance(cd/m2) | 250 (Typ.) |
| Response Time(Rising) | 5 ms |
| Support Color | 16.7M (6-bit + Hi-FRC) |
| Backlight MTBF(hr) | 50000 |
| Touchscreen Specification | |
| Type | Projected Capacitive touch screen |
| Multi touch | 10 points touch |
| Touch Life Cycle | 10 millions |
| Touch Response time | 8ms |
| Touch System Interface | USB interface |
| Power consumption | +5V@80mA |
| External AC Power Adapter | |
| Output | DC 12V /4A |
| Input | 100-240 VAC, 50-60 Hz |
| MTBF | 50000 hr at 25°C |
| Environment | |
| Operating Temp. | 0~50°C |
| Storage Temp. | -20~60°C |
| Operating RH: | 20%~80% |
| Storage RH: | 10%~90% |
What We can offer ?
IR touch screen/Frame
SAW touch screen
PCAP touch screen panel
4wire/5wire resistive touch screen
PCAP/NANO touch foil/film
PCAP flat screen touch monitor
SAW touch screen monitor
IR Open frame touch display
Desktop touch monitor
Desktop all in one touch PC
PCAP all in one touch computer
Bar lcd panel
High brightness advertising player/advertising machine
Curved touch display
Full bonding TFT lcd panel with touch screens
Touch monitor with mirror
OEM/ODM/Customization
