High Performence Milling and Digging Machine

Product Description

Product Description
Product description.

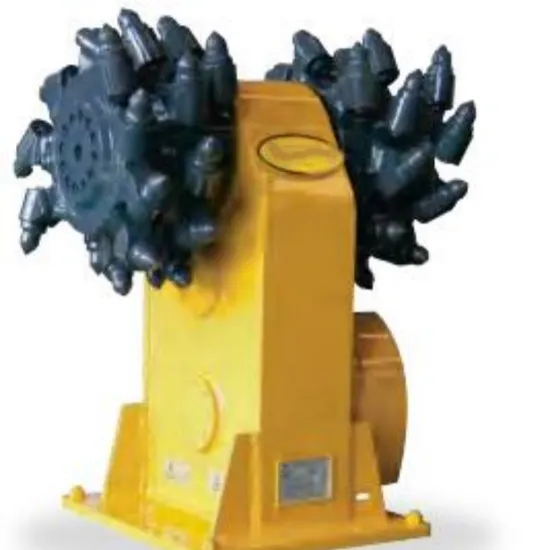

Milling machine
Milling machine is divided into transverse milling machine and longitudinal milling machine. It is widely used in open pit coal mine, tunnel driving and contour correction, channel groove milling, asphalt concrete pavement milling, rock and frozen soil milling. Tree root milling and steel industry, forestry and other construction fields.

Model number	MD80	MD150	MD240	MD350
Operating weight(kg)	372	845	1340	1860
Input power(kw)	25	30	52	60
Maximum power(kw)	34	40	6.2	70
Maximum working pressure(bar)	350	350	350	350
Flow rate(I7mn)	30-50	60-90	80-140	140-210
Cutting speed(rpm)	120-200	90-130	65-113	50-9
Cutting head torch(Nm)	3200	5800	10900	24000
Tool diameter(mm)	360	460	590	6.20
Load(tons)	3.0-8.0	8.0-15.0	15.0-24.0	18.0-35.0

Longitudinal milling and digging machine
Scope of application:A small amount of reinforced concrete, medium hardness rock, weathered rock, gypsum, coal rock, iron slag, etc.
1, low noise, low vibration.
2, the construction is safe, high efficiency, milling and digging out small particles, can be directly as the back filler.
3, the application is flexible, according to the working environment, can replace different milling and digging cutter, ditch milling and digging wheel, rock saw disk, etc. Easy to replace.
