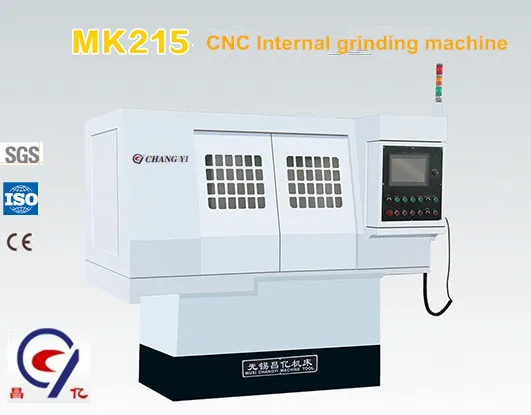

CNC Inner Bore Grinding Machine Tool Mk215
Basic Info.
Model NO.
MK215
Abrasives
Grinding Wheel
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
CNC Internal Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Roundness of Internal Hole
2um
Cylindricity of Internal Hole
2um
Surface Roughness of Internal Hole
Ra0.4um
Transport Package
Waterproof Film Wrapped, Wooden Case Package
Specification
2000x1600x1000mm
Trademark
CHANGYI
Origin
Wuxi, China
HS Code
8460292
Production Capacity
20 Sets Per Year
Product Description
* Main characteristics of this machine tool
* This machine tool is mainly used for grinding internal hole, internal end face, external end face and stepped hole of work piece.
* Setting and adjustment of machine tool parameters adopts touch screen, Human-machine dialogue can be realized.The operation is intuitive and convenient.
* Feed and reciprocating motion of machine tool adopt Siemens servo motor to drive ball screws to move through coupling. The guide rail adopts criss-cross steel rolling rail which is of high accuracy and good rigidity.
* The machine tool adopts fully-closed shell to ensure use security.
* As for clamping of machine tool work piece, several fixtures are available for user to select such as three-jaw chuck.pneumatic fixture,hydraulic fixture and diaphragm fixture.
* Grinding wheel spindle for grinding adopts high-speed motorized spindle and is controlled by static frequency converter, so as to realize stepless adjustment.
