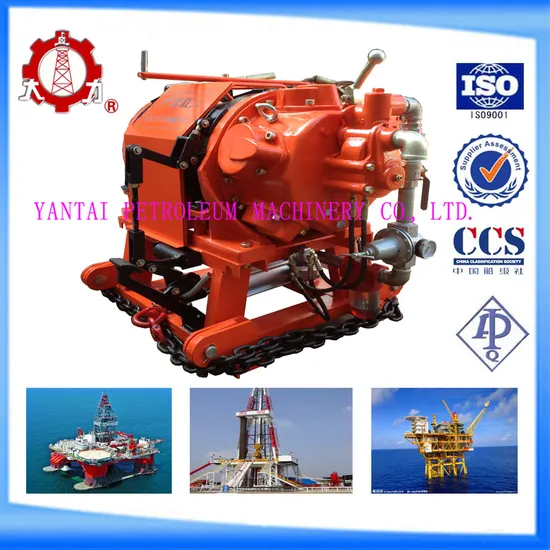

Jqh50*12 Air Winch Tugger with Hand Brake Auto Brake 50kn
Basic Info.
Model NO.
JQH50*12
Speed
Fast
Carrying Capacity
Middle-Level
Tonnage
5T
Reel Number
1
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE, API/ABS/Dnv
Standard
National Standards
Corlor
as You Like
Paint
Marine Grade Paint for Harsh Environment
Transport Package
Iron Boxes/Wooden Cases
Specification
1250*770*1016mm
Trademark
DALI
Origin
Shandong, China
HS Code
842539
Production Capacity
500
Product Description
Benefits & Features * Compact design with easy mobility*Designed for easy and safe operation
*High durability for applications in harsh environments
*Resistant to overheating damage and at overload capacity
*Continuous operation at full load
*Large drum diameter to prolong rope life
*Marine grade paint for harsh environment Worldclass Quality, Outstanding Performance *Poppet / spool valve construction to eliminate air leakages *Reverse rotation available. Valve handle operation allows free handling of the load as air flows into the control valve *Built-in radial piston air motor *Ball / roller bearings minimize friction *Set-up reduction ratio works on rope pull and line speed *Claw clutch mechanism allows safe, accurate handling in locked ON/OFF positions *Automatic or manual brake *Use sealed ball bearings to prevent oil leakage *Self closing throttle valve shuts off automatically when released
Specification
| Items | Parameters | Measurement Unit |
| Rated Working Pressure | 0.6-0.8 | Mpa |
| Rated Pull Force | 50 | KN |
| Rated Cable Speed | 12 | m/min |
| Piston Air Motor Model | TMH17 | ----- |
| Piston Air Motor Rated Power | 17 | kW |
| Piston Air Motor Air Consumption | 247 | L/S |
| Drum Diameter | 222 | mm |
| Drum Width | 335 | mm |
| Drum Wheel Diameter | 465 | mm |
| Cable Diameter | 15.875 | mm |
| Cable Storage | 120 | m |
| Air Inlet Diameter | 1 1/4 | in |
| Configuration | 1200*920*989 | mm |
| Weight | 498 | KG |
