CE a+++ R32 Solar Water Pump 24kw Split Heating System Heat Pump

Product Description

Product Description

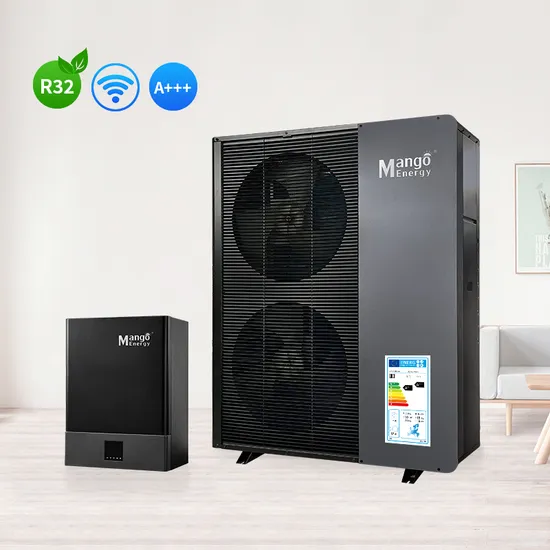

Mango Qii PRO Air Source DC Inverter Spilte-type Heat Pump 9kw 3HP

1	CE A+++ R32 solar water pump 24kw split heating system heat pump
2	E-heater, diverter valve,water pump,and expansion tank can be included
3	A+++ Energy Rating Level,with CE,TUV test report.
4	Low noise sound power level as low as 52dB(A)
5	Work down to -30 degree C
6	WIFI solution available,Carel controller.
7	Function: Heating +Cooling+ Hot water

DC details
A.Top SCOP Panasonic/Toshiba/Sanyo Inverter Rotary compressor and ECO R32/R410 refrigerant for max heat capacity and less
refrigerant, large volume of latent heat from the air via evaporator in coldest season.
B.Ultra frequency conversion technology
Based on the principle of proportional relationship between motor speed and input frequency of working power supply: n = 60f(1-s)/p and changing motor speed by changing working power frequency of the motor, it adopts AC-DC-AC power conversion technology, relying on our powerful control system with PWM generation ability, integrate V/F, vector control (VC) and direct torque control (DTC) to achieve control method of variable frequency PID calculus, mainly drive variable frequency by way of PWM synthesis drive, fully integrate power, electronics, microcomputer control and other technologies.
C.Advanced Carel Operate System, ultra intelligent
Especially superior heat dissipation circuit board design, longer service, over 3 time of other brand's, simple click and fully
play the characteristics of DC inverter frequency conversion system to achieve overlocking performance.
D.Multi-speed mute fan motor ROHS fan blades, ultra-low noise, durable & reliable, constant max air flow to satisfy heat supply.
E.Soft-start and soft-shutdown
Protecting both electrical system and all key parts, such a EEV, SANHUA 4-way valve, LG AC contactor & other World famous brand components ensure heat pump device 2-3 time longer service by 1) making output torque of the motor meeting the requirements of mechanical system for starting torque, ensuring smooth acceleration & smooth transition, and avoiding destructive torque impact;
2) achieving both starting current meeting the requirements of motor's bearing capacity, and the insulation damage or burnout caused when it starts. 3) reducing both voltage sag range and the content of high-order harmonics etc.
F.High-tech shock-absorption all copper construction piping
High-accurate completely automatic silver welding, easy maintenance.
G.High-density protective jacket for minimum heat lost
Aviation class insulation foam with outstanding sound absorption.
H.Classic European outlook forming
Fashion taste, never out of time.
I.Portable compact design
Saving room for installation & operation.
J.Fast heating and cooling speed Before the indoor temperature reaches the set value, the Panasonic rotary compressor delivers high levels of efficiency, enabling the unit to operate at high frequency so that it can heat water or provide house heating/cooling at a faster speed.
Specification of Mango all in one heat pump water heater DC inverter heat pump

Model				MGSDC-030IIC	MGSDC-050IIC	MGSDC-060IIC	MGSDC-080IIC	MGSDC-100IIC
HP				3HP	5HP	6HP	8HP	10HP
Power Supply		Indoor Unit	V/Hz/Ph	220-240V / 50hz / 1ph or 380-415V / 50Hz / 3ph
Ambient	Outlet	Outdoor Unit	V/Hz/Ph	220-240V / 50hz / 1ph or 380-415V / 50Hz / 3ph			380-415V / 50Hz / 3ph
+7°C	45°C	Heating Capacity	kW	9.51	16.33	19.70	24.90	30.70
		Power Input	kW	2.63	4.50	5.46	6.97	8.67
COP				3.61	3.63	3.61	3.57	3.54
-12°C	41°C	Heating Capacity	kW	6.76	11.35	13.36	16.40	20.52
		Power Input	kW	2.67	4.50	5.30	6.56	8.18
COP				2.53	2.52	2.52	2.50	2.51
-20°C	41°C	Heating Capacity	kW	5.68	9.41	11.68	14.32	17.24
		Power Input	kW	2.59	4.32	5.33	6.60	8.02
COP				2.19	2.18	2.19	2.17	2.15
-35°C	41°C	Heating Capacity	kW	3.52	5.83	7.62	8.88	10.85
		Power Input	kW	2.55	4.19	5.48	6.48	7.86
COP				1.38	1.39	1.39	1.37	1.38
+35°C	7°C	Cooling outlet	kW	7.51	13.10	16.11	20.38	23.59
		Power Input	kW	2.59	4.50	5.57	7.15	8.28
EER				2.90	2.91	2.89	2.85	2.85
Compressor			-	Panasonic Twin Roter DC Inverter Compressor with EVI System
Refrigerant			-	R32
Fan Motor			-	Nidec DC Brushless Motor
Controller			-	Touchscreen LCD Controller with WIFI and 13 Languages
Water Heating Exchanger			-	Cooper Brazed Plate Heat Exchanger
External Cabinet			-	1.5MM Galvanized Steel With Powder Coating
EEV			-	Dunan
Certificates			-	CE	FCC	UKCA	ISO9001	ERP A++
Rated Water Flow Rate			m³/h	1.5	2.4	2.8	4.1	5.2
Rated Pressure Drop			kPa	30	45	45	40	47
Max Working Pressure		Refrigerant	Bar	44 Bar
		Water	Bar	7 Bar
Water Connection		Inlet&Outlet	inch	1"	1"	1"	1"	1-1/4"
Noise Level		Indoor Unit	dB(A)	42	42	42	42	42
		Outdoor Unit	dB(A)	52	56	58	59	61
Net Dimension W*D*H		Indoor Unit	mm	522*296*863.5	522*296*863.5	522*296*863.5	522*296*863.5	602*308*880
		Outdoor Unit	mm	950*445*800	976*410*1273	940*448*1365	1150*480*1565	1405*590*1626
Net Weight		Indoor Unit	kg	55	55	55	55	70
		Outdoor Unit	kg	58	90	100	120	175
Remark		1.The values of heating(cooling) capacity/power input/COP(EER) are based on measurement of EN14511 standard.Usage environment, such as operation of the heat pump, room temperature and controller adjustments, may cause disparities between practically determined and these values; 2.Sound pressure level measured at distance of 1m from the device; 3.For wall-mounted type, the compressor is located in the outdoor unit;

Mango all in one heat pump water heater DC inverter heat pump 1) More compact with slim body; 2) Much lighter for transportation & stallation; 3) Dual rotary, more stable operating & lower operate noise, more ECO; 4) Permanent magnet, no power driving, rapidly ware & tear decreasing, higher efficient. 5) R32, R410, R290 refrigerants are capable, green enough for the world.
Carel smart controller: 1;Mango dc inverter heat pump with intelligent CAREL controller with RS485 is adopted to realize the
linkage control between the heat pump unit and the terminal application end. 2;With the Cascade function, multiple heat pumps can
be controlled at once for greater all day operating efficiency.
3;With WIFI APP enables users to operate their units through a smart phone wherever and whenever they are.
