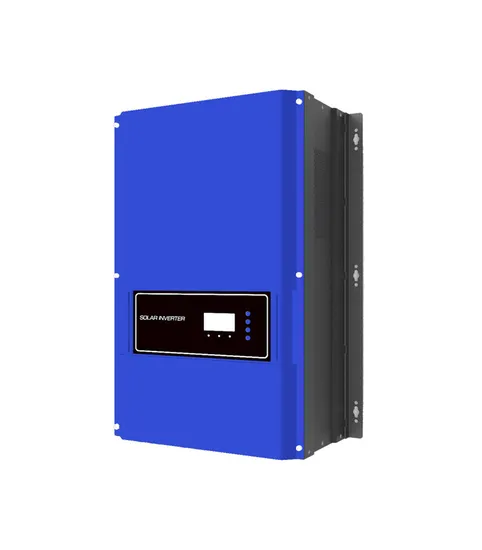

Solar Power Inverter in a Variety of Colors Good Design 3kw off Grid Pure Sine Wave Inverter

Product Description

Solar Power Inverter in a Variety of Colors Good Design 3kw off Grid Pure Sine Wave InverterProduct Description
This is a multi-function machine, combining functions of inverter, MPPT solar charger and UPS module to offer uninterruptible power support with portable size. With the CubeWiFi/CubeGPRS accessory, you can monitor the status anytime anywhere
Features:Rated power 2KW to 5KW
MPPT solar charge controller to maximize the solar output
High frequency inverter with small size and light weight
Pure sine wave AC output
Overload, short circuit and deep discharge protection
Parallel operation
Configurable AC/ solar input priority via LCD setting
Compatible to mains voltage or generator power
WIFI/ GPRS remote monitoring
Power balance of solar and utility grid
Can work with or without batteryLCD Display Information1. LCD Display
2. Status indicator
3. Charging indicator
4. Fault display
5. Function buttons
Bottom Panel
System Connection
Product Parameters

SPECIFICATION	JNM3500H-48BP	JNM5000H-48BP	JNM3000H-48LV-BP
Rated Power	3500VA / 3500W	5000VA/ 5000W	3000VA / 3000W
System DC Voltage	48VDC	48VDC	48VDC
Parallel Option	Yes,up to 6 units	Yes,up to 6 units	Yes,up to 6 units
Monitoring Option	WiFI or GPRS	WiFI or GPRS	WiFI or GPRS
Inverter Output
AC Voltage	220V-230V-240VAC	220V-230V-240VAC	100V-1 10V-120VAC
Surge Power	7000VA	10000VA	6000VA
Peak Efficiency	93%	93%	93%
Transfer Time	10ms(For Personal Computeis);20ms(For Home Appliances)
Waveform	Pure Sine Wave	Pure Sine Wave	Pure Sine Wave
Solar Charger & AC Charger
Max.PV Array Open Circuit Voltage	450VDC	450VDC	250VDC
Max.PV Array Power	4500W	6000W	4000W
Operating Voltage MPPT Range	1 20- 430VDC	120 ~430VDC	120~245VDC
Battery Overcharge Protection	60VDC	60VDC	60VDC
Max.Solar Charge Current	80A	100A	80A
Max.AC Charge Current	60A	80A	40A
Max.Charge Current	80A	100A	80A
Physical
Dimension	470*320135mm	470*320*135mm	470*320*135mm
Net Weight	11.kg	12kg	11.5kg
Communication Interface	USB/CAN/RS485	USB/CAN/RS485	USB/CAN/RS485
Environment
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0C-50C	-15C-60'C	0°C~50°C
Storage	0C~50°C	-15°C~60C	-15°C ~60°C

Company Profile
Jingnoo New Energy Co., Ltd. is a large-scale high-tech enterprise integrating R & D, production and sales of lithium-ion batteries. The main products are a full range of lithium-ion batteries.
Headquartered in Bantian, Shenzhen. The factory is located in Qingxi Town, Dongguan and Yongkang, Zhejiang. The total construction area is 10000 square meters, and there are more than 300 employees, including more than 30 engineers and technicians. Mature product technology, complete specifications, the company has a sound production management system and quality control system, has a strong research and development and management team, most of the company's products have passed the FCC, CE, MSDS, ROHS, ISO9001 and other professional certification. In order to better meet the different needs of users, we better combine advanced production technology and equipment, professional testing center, mass production and efficient after-sales service to give full play to the overall effect. After years of development, the company is at the top level in terms of product performance, technological innovation and all-round services, and has established a leading position in the domestic industry.
The company has a number of lithium battery PACK production lines, aging, capacity and other production equipment and a large number of experienced industrial workers. The combination of exquisite craftsmanship and scientific process ensures the qualified quality of each (offline) product. The company has built a large battery testing center, and advanced battery testing equipment has become a reliable guarantee for "safe batteries". Therefore, the company's products have passed the certification of many authoritative organizations at home and abroad, and become an excellent representative enterprise of the reliability of lithium-ion battery module products.
Over the years, the company has been pursuing the business purpose of "honesty and pragmatism, win-win development, excellence and continuous improvement", and is committed to providing customers with innovative, easy-to-use, powerful, safe and reliable green rechargeable secondary energy products. Based on the precise positioning of "lithium battery customization", a group of lithium battery industry experts have been gathered to form a systematic R & D team including electrochemistry, electronics, technology, structure and other categories. The company's technological innovation ability can fully meet the diversified and personalized needs of customers.Through unremitting efforts, Jingnoo Energy has become a long-term friendly supplier of some well-known brands at home and abroad. It mainly produces smart lithium batteries such as scooters, electric bicycles, high-speed electric motorcycles, smart furniture, smart wearing products, smart sweepers, electric balancing vehicles, model airplanes, etc. Its products are exported to European and American countries and regions, and have been recognized by more than 50 foreign enterprises and users.
Jingnoo Energy adheres to the business philosophy of "good batteries start from the core", devotes itself to offering super value to customers, and looks forward to working hand in hand with customers at home and abroad to create a better future.Certifications
FAQ
1. Can I have samples order? And what is delivery time for sample order?
Yes, we offer samples.
The delivery time for samples is 3-10 days.You can test our batteries to know more about its performance and quality.
2. Can you produce the order with the customer's brand?
Yes, of course. OEM & ODM service is warmly provided. 3.What's the MOQ? There is no MOQ for samples. For bulk order quantity, the more, the cheaper. 4.How about the delivery time? Usually, we have stable stock in warehouse. The goods can be sent within 2-7 days. 5.Are you battery real capacity? Yes, we can offer you the testing data of each cell to show its actual capacity, IR and so on.The actual capacity are more than its nominal capacity 6.How about the quality & warranty time? All products provided 5 years warranty. Lifepo4 cells with 3 year warranty. if there is any quality problem,we can send the new to replace it. 7.Can these battery pack be compatible with my inverters? Yes, our battery pack can be compatible with most brands of inverters on the market 8.Can it be series or parallel for use? Yes, The number of batteries in series or parallel depends on your battery parameters. 9.Why JINGNOO guys ask me so many questions? I just want to know the price !! Sorry for annoying you. But the discharge current, voltage etc. Information is very important for us to produce the correct battery for you. If we produce the battery which can not achieve the real application discharge current, size etc. That will put both of us in a very embarrassing and lose-lose condition. We also have price list, but it is only for your reference. We should confirm the discharge current etc. Information before we produce your orders.
