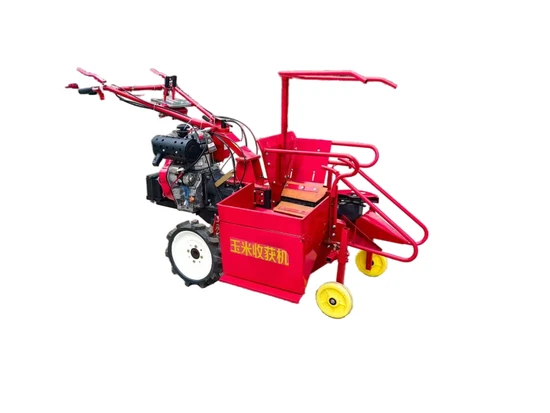

Agricultural Mini Corn Maize Single Row Harvesting Machine with Walking Tractor

Product Description

Agricultural Mini corn maize single row harvesting machine with walking tractor: This single row coHand walking Tractor front maize corn harvester with sheller pelling machinern harvester is diesel or gasoline engine power supported combine type, which can corn packing,straw crushing and return stalks to filed as fertilizer at one time.
This machine completes a row of corn picking and straw crushing. Supporting a set of spike can be removed under the filling bag, stubble height adjustable, tension clutch work safety, small turning radius of small operation. The aircraft per hour of corn corn smelting a month of direct smashing, peeling skin is not clean, ear height of 60 cm above can be harvested, the higher the straw the greater the rate of light bar.
Main Features
1. small size,adaptability,widely used in hills and mountains and other large corn harvesters can not pass the sporadic block
2. Almost the same function with large combined corn harvester, including picking, peeling, straw crushing. 3. Diesel engine or gasoline engine power, energy saving.
4. easy to install and disassemble, really a car more use. 5. flexible operation, cutting crop height can be adjusted, turning radius is small.

Product Parameters

GASOLINE MODEL
Item	170	177	190
Engine	7hp	9hp	12hp
Transmission type	Gear drive/belt drive
Start model	Manual/electric starter
Working width	500mm	≥960mm	1050-1350mm
Working depth	≥100mm	200mm	200mm
Size of wheel	400-8/350-6
Adjustment of handle bar	360 degree horizon and 45 degree vertical
Fuel consuption	≤10kh/ha
Fuel Tank	5L
Weight	120kg	132kg	150kg
Working efficiency	o.1-0.2acre/h	o.1-0.2acre/h	0.3-0.4acre/h
Working speed	>0.3m/s

DIESEL MODEL
Item	173	178	186
Engine	7hp	9hp	12hp
Transmission type	Gear drive
Start model	Manual/electric starter
Working width	500mm	≥960mm	1050-1350mm
Working depth	≥100mm	200mm	200mm
Size of wheel	400-8/350-6
Adjustment of handle bar	360 degree horizon and 45 degree vertical
Fuel consuption	≤10kh/ha
Fuel Tank	5L
Weight	164kg	178kg	182kg
Working efficiency	o.1-0.2acre/h	o.1-0.2acre/h	0.3-0.4acre/h
Working speed	>0.3m/s

Detailed Photos

Installation Instructions

Scope of Application

Packaging & Shipping

FAQ
Q: What's your delivery time? A: Generally, 15-20 days after receipt of deposit, but the specific time depends on order quantity.
2. Q: What are your terms of package?
A: Carton Box.
3. Q: What is your terms of payment?
A: 30% T/T as deposit, 70% before delivery.
4. Q: WHat are your terms of Trade?
A: EXW, FOB, CFR, CIF
5. Q: Can I get some samples?
A: Yes, we are honored to offer you samples.
6. Q: Do you test all your goods before delivery?
A: Yes, we will 100% test before delivery.
