Bsdf Industrial Spice Grinder Dry Ginger Black Pepper Grinding Machines Powder Grinders Machine

Product Description

Bsdf Industrial Spice Grinder Dry Ginger Black Pepper Grinding Machines Powder Grinders Machine

Product Description
BSDF advanced hammer mill unit includes:
1) crusher part
2) cyclone (discharge system)
3) pulse dust collecting system
4) blower
5) electrical control box
Material is sent to mill chamber to be crushed, by force of blower, powder will go to cyclone and be discharged, the ultra-fine powder will be seperated to dust collecting box.
The production process is dust-free and continuous. BSDF advanced hammer grinding set is suitable for grinding spices, like ginger, garlic, chilli...etc.
Technical data of Bsdf Industrial Spice Grinder Dry Ginger Black Pepper Grinding Machines Powder Grinders Machine:

Model	BSDF-350	BSDF-450	BSDF-550	BSDF-750
Rotor speed (rpm)	3500-4500	3300-4200	2900-3600	2100-2700
Grind motor (kw)	22	37	45	75
Discharge motor (kw)	0.75	0.75	1.1	1.5
Blower (kw)	7.5	11	15	18.5
Fineness (mesh)	20-120	20-120	20-120	20-120
Capacity (kg/hr)	100-200	300-500	600-800	800-1300

Details Images

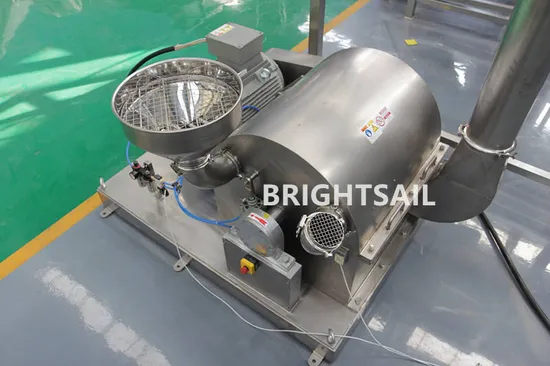

Crusher part:
It combines coarse crushing area, middle fine milling area and super fine milling area together. Each group has one unit of knives and one liner. Material is fed into the mill chamber, pass through the high speed rotation caused by the three groups of knives one by one. Material is crushed three times in one mill chamber, then become fine powder. Between middle fine crush knife group and fine mill knife group, there is a device designed for preventing coarse granule going to fine milling area, so powder fineness is assured.
The rotor speed is controlled by inverter, different particle size is achieved by adjusting rotation speed.
Advantages of Bsdf Industrial Spice Grinder Dry Ginger Black Pepper Grinding Machines Powder Grinders Machine:
1) No need screen or sieve in mill chamber, change powder particle size by changing speed through inverter;
2) Because it has no screen in mill chamber, it can make finer powder than common hammer grinder machines.
3) The mill part combines coarse crusher, middle fine mill and fine mill together, which means it can makes fine powder directly
from big raw material, very effective. Then, no need to crush big material firstly.
4) It can save more power, its capacity is much bigger than other traditional hammer mills.
Overall powder solutions for our clients:
These are the BSDF-750 grinding machine with conveyor machines and sifter machine for our Pakistan client, they use this line for making spices and chickpea powder.
Clients' feedbacks:
This line is for our client in New Zealand, they purchased the BSDF-750 grinder machine, screw feeder and sifter machine for grinding chickpeas into fine flour.
If you need small capacity or if you don't need fine powder, there are other different grinders for your choices.
Applications
Packaging & Shipping
*Usually small machine will be packed in the wooden case, and we can also pack it according to customers special request.
*If machine is big, we will fix the machine inside container with steel wires and nails. Machine won't move inside the container.
Our Service
Company Information
Brightsail spice & herb machinery Co.,Ltd focuses on one-stop overall solutions for spice&herb product processing.
The solution covers from cleaning machine,cutting machine,dryer, roaster, crusher, grinding mill,mixer,to filling and packing machines...etc.
Till 2022 year, we have exported our machines to more than 75 countries around the world and have received a lot positive feed-backs from our customers.
Besides, we also provide other solutions for food and chemical powder processing.
