High Quality Stone Engraving Machine CNC Router for Sale

Product Description

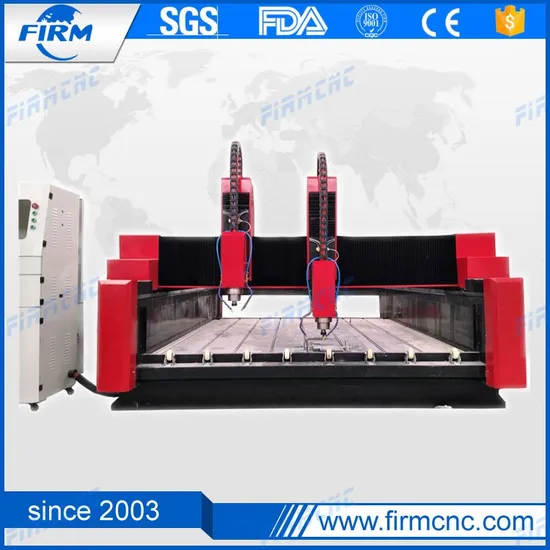

High Quality Stone Engraving Machine CNC Router for sale
This kind of machine is the main products of Jinan Firm CNC Equipment co, . Ltd which specialize in producing cnc machine. The material that the machine can process including tile, marble, granite, white marble, sandstone, glass, metals, 3D natural marble, artificial stone, tombstone, milestone, etc.
Description of the machine
1. Cast heavy-thickness square tube structure, solid without distortion.
2. Germany Ballscrew for Z axis, high-efficiency working. Rack gear for X Y axis, high-speed with best rigidity.
3. Taiwan HIWIN Square orbits, ensure the machine's movement stable and smooth and long-life using.
4. Water-cooling spindle, can be working for a long time.
5. Broken-point memory, ensures the continuity of work when inciddent happens.
6. DSP Controller system, conveniently to operate.
7. Spindle power 3KW/4.5KW/6KW/7.5KW/8KW/9KW, fasting-speed & working-efficiency.
8. U flash interface.
9. Auto-oiling system. Extra time can be saved.
10. Heavy-thickness water-tank device, guarantee the marble materials under water-cooled function. Meantime also improve the blades life-time.
Samples
Technical Data.:

Discription	FM-1212
Working Area (X*Y*Zmm)	1200mm*1200mm*200mm
X, Y Structure	Rack gear
Z Structure	Ball Screw
Max Moving Speed	8000mm/min
Max Engraving Speed	6000mm/min
XYZ traveling positioning accuracy	± 0.04/300mm
XYZ repositioning accuracy	± 0.04mm
Spindle power	2.2KW/3KW/4.5KW/5.5KW/6KW/7.5KW
Spindle Speed	6000-24000rpm
Diamerer of cutter	3.175, 6mm, 12.7mm, 2, 1, etc.
Voltage	AC220V, 50Hz/60Hz(option, AC380V, 50Hz/60Hz)
Drive type	Stepper/Servo(option)
Working Dictate	G Code*. u00*. mmg*. plt. 2D 3D
Operating system	Ncstudio control card/DSP system
Operating environment	Windows98/2000/xp
Interface	PCI, USB
Flash memory	128M(U Disk)
Software Compatability	Type3, Ucancam, Artcam Software
Running Enviroment	Temperature: 0-45
	Relative humidity: 30%-75%
Machine necessary	Water-tank device

Package
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
Service
# Two years warranty for the machine
# Replacing all parts for free during warranty
# If nessessary, provide door to door service to your country
# 24 hours on line service
# Replying your email and offer tecnical service within 24 hours
Company Info
Jinan Firm CNC Equipment Co., Ltd is situated in Jinan city, Shandong province. We are a professional and good reputation manufacturer of CNC router (router cnc, cnc wood router), laser engraving machine, CNC plasma cutter, laser cutting machine, laser marking machine in China to the new and existing customers that are spread throughout the South America, Middle East, Southeast Asia, Africa, Europe and other counties of the world and the machines has passed the EU CE certificate.
FAQ
How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
How is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package with Steel Belt
Save space as much as possible for container loading
If some problems happened to this machine during warranty period,what should i do?
We will supply free parts in machine warranty period if machine have some problem.While we also supply free after-service forever,so any doubts,just us know,we will give you solutions in 30 minuts.

What is the MOQ?
MOQ for our products is 1 set machine,we could send it to your country port if you tell detail information about your country port. Contact information:
