Efficient Concrete Vibrator, Durable Poker Vibrator Shaft

Product Description

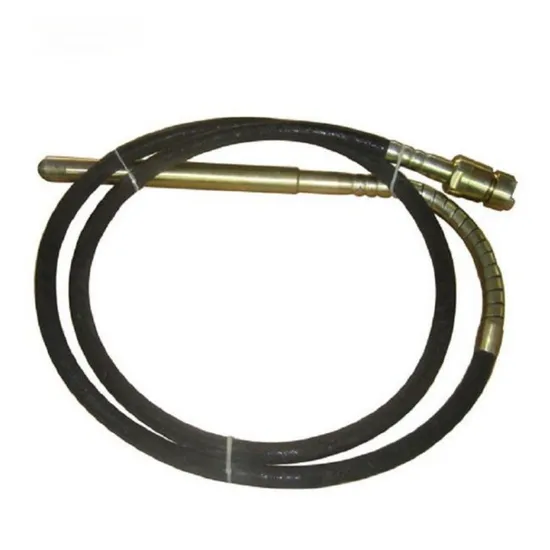

1 to 12 m Length Concrete Vibrator Shaft
Product Uses

Concrete Vibrator Shaft drive by Electric motor,gasoline engine and Diesel engine. It is suitable for common concrete compaction, widely uesd in many places such as the bridge, the harbor construction, the large-scale dam, the high-level building base irrigation pile acted as a column, the crowded mat reinforcement coagulation dirt wall, the major and medium small architectural engineering.

Characteristics:

Design in conformity with international and Simple standards
Excellent results on light duty jobs
Economical solution when it comes to internal vibration
Good mechanical performance
Low noise


Product Description

The Concrete vibrator needle is also known as vibrating poker. It is available in various diameters,including 25mm,28mm,32mm, 35mm, 38mm,45mm,50mm,60mm,70mm and 75mm . It also can be attached to flexible tubes of various lengths ,varying form 1mtr to 12mtr . To be compatible with specific job requirements, the vibrator needle may take different type. Usually driven by the electric vibrator ,the poker also can be used in combination with gasoline vibrator or diesel vibrator .
Specification Date

Model	ZX 35	ZX 50	ZX 70	ZX 28
Diameter	35	50	70	28
Vibrating Frequency (HZ)	183	183	183	183
Outside dia of flexible hose (MM)	30	36	36	30
Inner dia of flexible hose (MM)	10	13	13	10
Packing Way	Carton	Carton	Carton	Carton
Packing Size (MM)	750*750*55	750*750*55	750*750*55	750*750*55
Length (M)	1 to 12	1 to 12	1 to 12	1 to 12
Max. vibration force (KN)	5.293	6.251	7.157	4.846
Vibrating Amplitude (MM)	1.15	1.21	1.32	1.11
Available Motor or Engine	Electric Motor, Gasoline Engine, Diesel Engine
