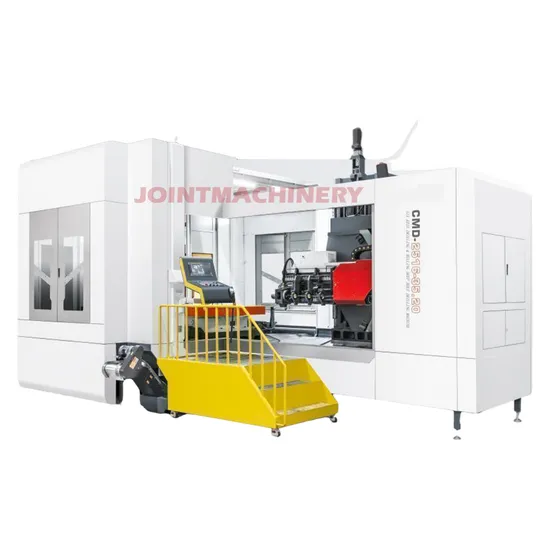

Six-Axis Drilling and Milling Composite CNC Deep Hole Drilling Machine

Six-Axis Drilling and Milling Composite CNC Deep Hole Drilling Machine

US$32,000.00-60,000.00 1 set (MOQ)

Basic Info.

Model NO.
CMD-2016-35.20
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Drilling Diameter of Gun Drill
3-50mm
Drilling Diameter of Single Pipe Drill
18-65mm
Max Drilling Depth of Gun Drill (W)
1600mm
Left and Right Stroke of Workbench (X)
2000mm
Sliding Table Stroke (Y)
1650mm
Column Stroke (Z)
1000mm
Swing Axis Rotation Angle (a)
Upward 20 Degree, and Down to 35 Degree
CNC Rotary Workbench (B)
360 Degree
CNC Indexing Table Max Load Capacity
18000kg
CNC Indexing Table Size
1800*1600mm
Spindle Taper Hole
Bt50
Max Spindle Speed
4500rpm/Min
Spindle Motor
15/18.5kw
X/Y/Z/W/a/B Axis Feed Servo Motor
36 N.M
Total Power
65kw
Transport Package
Wooden Pallet and Wooden Case
Specification
9350*5500*5600mm
Trademark
JOINT
Origin
China
HS Code
8459210000
Production Capacity
300

Product Description


Drilling is the most basic process in machining operation, is also the process with the most wide range in application field. Bench drill, miling machine, radial dill nd other traditional driling equipments have laborers' hands bound in the machine to repeat the work without quality.Security environment, efficiency and processing limis have influenced manufacturers and operators. With the arival of the CNC era,the birth of CNC depth drill has thoroughly changed the situation, it not only frees the laborers' hands, but also soves the botleneck of depth drll rocessing, and make it possible that one-time d rlling can achieve the processing quality of common drlling machine in drling, enlarging, expanding and also eaizes automatic chip removal, CNC positioning & automatic processing.
3 Axis CNC Deep Hole Drilling Machine 4 Axis Vertical CNC Deep Hole Drilling Machine Multi-Spindle CNC Deep Hole Drilling Machine 6 Axis CNC Deep Hole Drilling Machine

The CMD series six axis drilling and milling composite machine tool is a multifunctional machine tool that can process deep holes and milling. It's characteristic is equipped iwth a rotating workbench and a winging A-axis, which can perform precisjon machining of complex parts with inclined and double inclined holes, inclined and double inclined surfaces. It's applied in multiple fields.
Such as automotive mold manufactureing, engine cyliner blacok, shipbuilding, aerospace, petroleum hydraulics, new energy power, nuclear power and chemical engineering, etc. Especially the inclined top rod on the mold, the double inclined water parths of the hot forming mold, the hot runner plate, the engine cylinder body, the rolling roller, the rotary table, the flywheel, etc.
Six-Axis Drilling and Milling Composite CNC Deep Hole Drilling Machine
Model Unit CMD-2016-35.20
Machining Capacity
Drilling diameter of gun drill mm 3-50
Drilling diameter of single pipe drill mm 18-65/optional
Max drilling depth of gun drill (W) mm 1600
Machining Stroke
Left and right of workbench (X) mm 2000
Sliding table stroke (Y) mm 1650
Column stroke (Z) mm 1000
Max drilling depth of gun drill (W) mm 1600
Swing axis rotation angle (A) ° Upward 20°, and down to 35°
CNC rotary workbench (B) ° 360
CNC Indexing Table
Max loading capacity kg 18000
Size (L*W) mm 1800*1600
Spindle
Spindle taper capacity BT50
Max spindle speed rpm/min 4500
Power
Spindle motor kw 15/18.5
X-axis feed servo motor N.m 36
Y-axis feed servo motor N.m 36
Z-axis feed servo motor N.m 36
W-axis feed servo motor N.m 36
A-axis feed servo motor N.m 36
B-axis feed servo motor N.m 36
Total power kw 65
Cooling System (Gun Drill)
Coolant pressure range mpa 2-15
Coolant flow range L/min 6-85
Size & Weight
Machine size (L*W*H) mm 9350*5500*5600
Machine weight (About) kg 25000
System
Control system Standard:FANUC / Optional:SYNTEC
Milling Ability
Milling range mm 1600+1000

Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.

Q1: Are you trading company or manufacturer?A1: We are factory.Q2: What is your terms of payments?A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.Q4: What is the package? Is it suitable for shipment?A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.Q5: How long is the warranty for machines?A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.
