High Precision Custom Wood Drill Machine with CE Certification

Product Description

Product Description

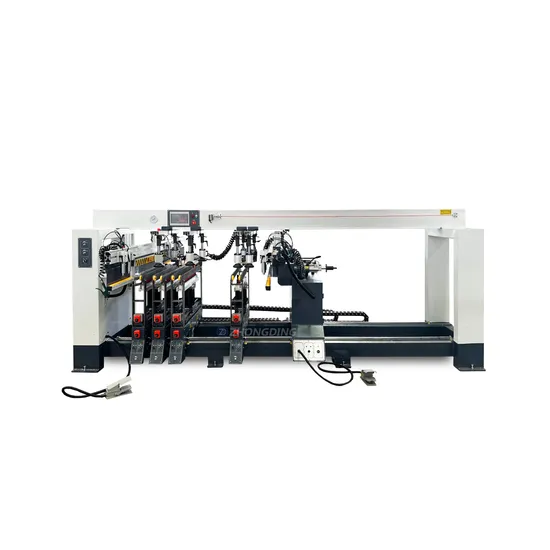

The MZ73216 drill base is arranged in 2 rows horizontally, each with 21 drill bits, and 4 rows vertically, each row consists of two independent drill bases, each with 2×11 drill bits. The widest workpiece width that can be processed is 800mm, the length of the workpiece to be processed is 250mm~2500mm, and the thickness of the workpiece that can be processed is 20-96mm. The drill base of the MZB73216 standard 6-row drill is equipped with 2 rows of vertical drill bases. This type of drill is suitable for processing panels with many holes and a large number of holes. When drilling, after one alignment benchmark, the drilling requirements of the panel can basically be completed. Therefore, the hole position accuracy of the drilling is high and the production efficiency is high. It is a commonly used drilling equipment for large-scale panel furniture companies.
In short, the drilling of panel furniture parts is the last production process of panel furniture machining. In terms of design, the hole positions of the parts must be reasonably arranged according to the type of drilling and the production process to achieve the drilling requirements after the benchmark is set once. The purpose of multiple holes without multiple benchmarks is achieved to ensure the processing accuracy of the drilling.
Detailed Photos
Tablet made of high quality cast iron, to ensure the stability of the machine . Vertical box,horizontal seat,left and right panels,motor base and other key parts are also made of cast iron.

Widened machine body, lengthened rip fence, to position the plate horizontally and vertically


Product Parameters

Name	wood drilling machine	HS code	84659500
Model No.	MZ73216	Certification	CE,ISO
rated power	9kw	After-sale service	1 year
overall dimensions	4500*1200*1600mm	max working length	2500mm
max working width	800mm	working thickness	20-96mm
max drill diameter	35mm	spindle speed	2800rpm
virtival spindle head	140-3500mm

Our Advantages
The wood drilling machine can drill in a wide range of sizes. And the bits are braced in the quick connectors ,so it's convenient.
According to your requirment,the digital display calculator can be used on the machine that can increase your work efficiency.
The drills in row and the motors of the drilling machine are all famous-Brand ,very durable. The body of the machine is made of good steel which the high heat treatment is crossed. So it will not be out of shape forever.
Horizontal drilling can be 0-90 ° free rotation, and can be hover at any angle to meet the needs of special angle drilling.

Company Profile
Qingdao Zhongding Machinery Co., Ltd. is a company specializing in the production and export of woodworking machinery. It can provide customers with professional woodworking machinery products. The company has professional technology, a full set of testing lines and 4 professional woodworking machinery production lines.
The company has established a complete sales system and the products have been sold to many countries and regions in the world, such as Europe, Russia, Southeast Asia, the Middle East, North America, and Australia. The company adheres to the tenet of "quality first, customer first", strictly implements quality management, actively develops and manufactures new products, and provides comprehensive pre-sales and after-sales services.
Certifications
Our Customers

FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request.
2. Where can we get replacement parts?Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?Our machines have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers.6. Can you customized the machine?
Our machines can be customized made according to buyers' request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sliding table saw,CNC beam saw machine, wood drilling machine, CNC router ,vacuum laminating machine, sanding machine, hot press machine and so on can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese , English , Español , Português , Français , Русский язык , Italiano , Deutsch , Nederlands and so on .
