Plastic Waste Scrap Machine PP PE Film Recycled Granulating Pelletizer

Product Description

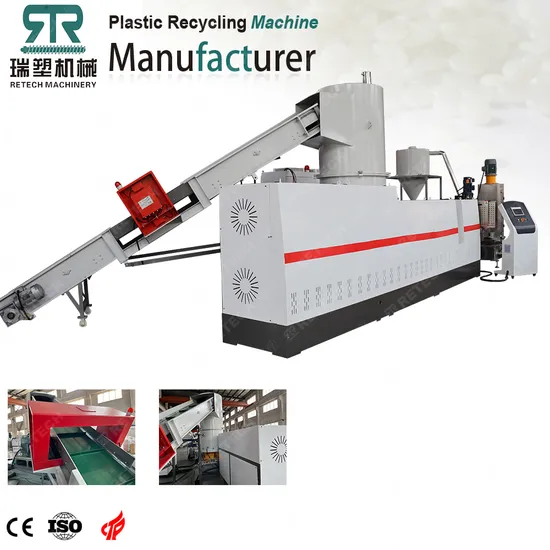

Plastic Waste Scrap Machine PP PE Film Recycled Granulating Pelletizer Product Overview
Plastic waste scrap machine pp pe film recycled granulating pelletizer with compactor is the recycling machine which make the plastic into pellets. RETECH series compacting pelletizing system, it is a three in one recycling machine designed for low density plastic articles. We're very professional manufacturer of plastic recycling machinery, and We have been working in this industry for over than 15 years, We have developed many different kinds of plastic granulators for different material, such like PP PE PVC PET PC ABS EPE EPS, Printed and non-printed PE, PP film, multi-layered film, shrink film, stretch film, PE and EPE foam, Thermoformed PS, PP, Soft irrigation pipe, Pre-shredded regrind, Washed and dried film flakes from washing line,Hard Plastic Regrind, Washed Material, Granules, HDPE-milk-bottles etc. And adopt different feeding ways for rigid flakes and for soft fluffy scraps. Output capacity will be from 100kg/H up to 1000kg/H.
Our Machine
Product Parameters

Model	Screw Diameter	Screw L/D	Main Motor Power	Capacity
RSJ85	85mm	28-33:1	75KW	150-200kg/hr
RSJ100	100mm	28-33:1	90KW	200-300kg/hr
RSJ130	130mm	28-33:1	132KW	300-400kg/hr
RSJ160	160mm	28-33:1	160KW	500-600kg/hr
RSJ180	180mm	28-33:1	200KW	600-800kg/hr
RSJ200	200mm	28-33:1	220KW	800-1000kg/hr

Detailed Photos
1.Belt conveyor
(1)Belt conveyor as standard feeding device for plastic film, raffia, filament, woven bag, nonwoven fabric, etc.
(2)Metal detector can be installed on conveyor as optional item, Detecting and separating the metal to protect the compactor and extruder effectively.

2.Compactor
(1)With optimal design of rotary blades and stationary blades.
(2)The material got cutting, mixing and compacting in the compactor uniformly, to ensure the material heated and dried effectively which guarantee a fast and stable feeding from the compactor into the extruder.

3. Single screw extruder
(1)Referring to the Germany design concept and method, designed for single screw extrusion machine, with the structure of in-volute gear teeth.
(2)High efficiency and low noise, Long use life and low maintenance cost.

4. Hydraulic screen changer & Extrusion mould(1)Structure: Plate and double stations
(2)Temperature control zone:2zones
(3)Pressure: 0-15MPa
(4)Material of mould: 38CrMoAIA
(5)Heating processing: Nitrogen treatment
(6)Hardness HV850-950,depth: 0.4-0.7mm

5.Dewatering Device
(1)This drying system can get final pellet humudity less than 1%.
(2)Horizontal design of dewaterer with small floor area.
6.Silo
(1)The function of the blower is to transport particles to the silo through stainless steel pipes.
(2)Pipes and silos are wrapped
with black sound insulation cotton, which reduces the volume from 82dB to 68dB.
(3)New design makes it easier to operate.
