Basic Info.
Press Series
Hydraulic Press
Batch Working Time
8-15 Minutes
Capacity Per Hour
26-65 Kg/H
Transport Package
Wooden Case Package
Specification
750*1010*1640mm
Origin
Henan Province, China
Production Capacity
1000 Sets/Month
Packaging & Delivery
Package Size
117.00cm * 111.00cm * 190.00cm
Package Gross Weight
1330.000kg
Product Description
Product Description

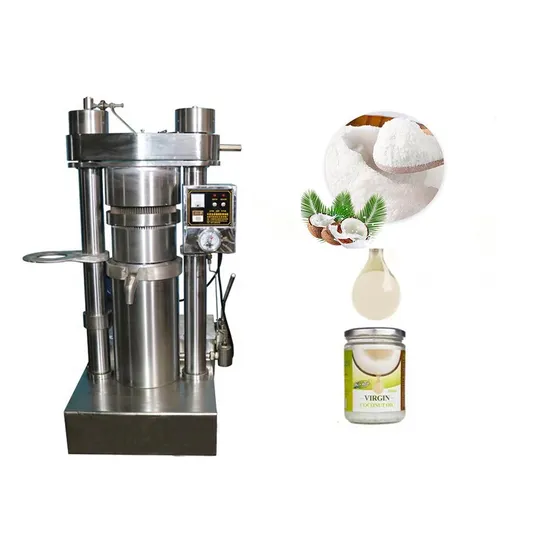

Hydraulic Avocado Oil Extraction machine Cold Linseed Sesame Castor Cocoa Butter Coconut Oil Press Machine
Model | Capacity | Power | Voltage | Max working pressure | Size | Weight |
6YY-185 | 8-20 kg/h | 2.2kw/1.1kw | 220V/380V | 60MPA | 600*880*1150mm | 590kg |
6YY-230A | 16-40 kg/h | 2.2kw/1.1kw | 220V/380V | 60MPA | 670*950*1460mm | 920kg |
6YY-230B | 18-45 kg/h | 2.2kw/1.1kw | 220V/380V | 60MPA | 670*950*1560mm | 950kg |
6YY-250 | 22-55 kg/h | 2.2kw/1.1kw | 220V/380V | 60MPA | 710*950*1560mm | 1070kg |
6YY-270 | 26-65 kg/h | 4.0kw/2.2kw | 220V/380V | 60MPA | 750*1010*1640mm | 1230kg |
6YY-300 | 32- 75 kg/h | 4.0kw/2.2kw | 220V/380V | 60MPA | 1000*1100*1660mm | 1600kg |
6YY-335 | 40-85 kg/h | 4.0kw/2.2kw | 220V/380V | 60MPA | 1100*1240*1730mm | 1750kg |
6YY-355 | 46-100 kg/h | 4.0kw/3 kw | 220V/380V | 60MPA | 1160*1200*1810mm | 2350kg |
There are different types that can meet your demands, customization can also be accepted. |
You can write to us to get price list!
The material:
Raw material: This cold oil press machine can press various material: sesame, avocado, walnut, perilla seed, castor and etc material.
Hydraulic oil press working principle:
The motor provides power to the hydraulic box to squeeze kinds of materials up and down in the kettle, through the control system control of working pressure and temperature, it stops working when the pressure exceeds the set point. adjust (60mpa) automatically, when the pressure is reduced to about 50mpa the machine will work again, This cyclic processing can tighten materials thoroughly and improve oil performance.
Main features:
Eco-friendly health & energy saving & labor saving & long life & high oil recovery
Widely used, small footprint and fast cost recovery
Operation step:
Usage:
Our Advantages
Structure of hydraulic oil presser:
1. Pressure kettle
Precision oil line, only 0.36mm, filtering residue, finally the oil can reach the cooking grade directly, the oil is transparent and edible.
High quality steel and special heat treatment make it strong and safe enough.
2. Electrical control panel
Internal temperature control parts to solve the problem of low oil performance in winter (normal performance will be lower in winter oil machine).
Only two buttons control all working pressure and temperature, very easy to operate. The buttons were tested very strictly before shipping, make sure they are safe and last for a long time.
3. Large screw nut
Our large screw nuts adopt high-quality steel to bear the large pressure and make sure the long using life.And our screw nuts don't need to be adjusted before pressing,so it can save your time and effort.
4. Hydraulic system
The hydraulic system is the key part of the machine. It adopts double-pump technology, achieve the high-low pressure exchange, thus improving the working efficiency and oil output rate.
High quality machine, more safety and low-cost maintenance
Service
1. Factory direct price
2. Nice package, quick delivery and quality guarantee.
3. Pre-sale service
* Offer the professional quotation, solution and design drawing.
* Accept the customized model machine
* Accept to visit factory
* Free testing
* Free consult and technical support
After-sale service
* Online technology support.
* Free video support.
* Free spare parts and maintenance service during the warranty period. (Except the breakdown and destroy caused by person and force majeure)
* Field maintenance and repair service (paid)
*We can install the oil presser for you for free.
Packaging & Shipping
We use double films and standard wooden boxes to pack the machine, which can avoid rusting and reduce the tear on the machine, thus protecting the machine. If the customer has their own needs, we can customize the packaging according to the customer's requirements.
Company Profile
Click here to begin your order!
FAQ
Q: Which machine is best for oil extraction? Hydraulic or screw oil presser? A: It depends on the oilseed. High value oil fit for hydraulic oil press, it is better to use screw oil press machine. If Want to get edible and more oil yield, it's better to use screw oil presserQ: What are the different types of oil pressing machines?A: From the working principle of oil presser, there are 2 types of oil press machine on the market, one is hydraulic oil presser and another called screw oil presser.
Q: Can i test the machine before ordering?
A: Yes, of course. We accept customized.
Q: The power supply in our country is unstable. If there is a power outage during the pressing process, will the machine be damaged?A: Generally it not damaged the machine, when power outage, keep off the machine, when have power, operate the machine is okay. But noted, need let the material in the press system out if power outage.
