Single 1.5 Double 2.5 Layer Mesh Screen Polyester Forming Fabric Wire for Paper Machine Clothes

Product Description

Product Description

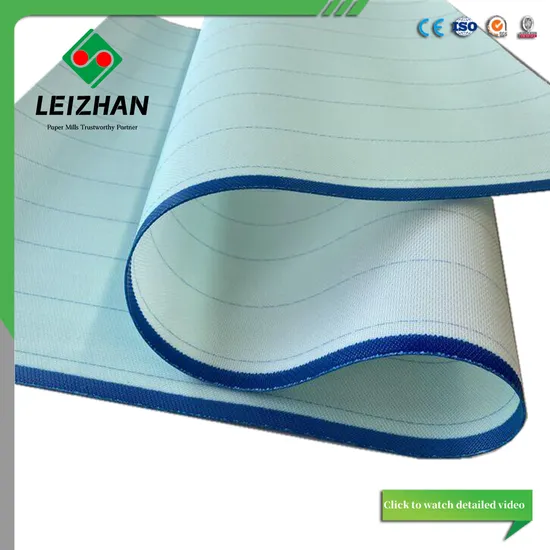

Paper Machine Polyester Forming Fabric
4-shed , 5-shed series single layer polyester forming fabrics are the two widely used polyester forming fabric in paper making, mainly used for producing cultural paper (single glue, double glue and color glue), printing paper, glazed paper, packing paper, common newsprint. Suitable for common fourdrinier paper machine.
8-shed single layer polyester forming fabric is suitable for kraft paper, cardboard , corrugated paper making. Also could be used for producing common printing paper. Suitable for common fourdrinier paper machine.
8-shed double layer fabric is suitable for producing quality printing paper. For example ,dictionary paper, offset printing paper, newsprint and wrap paper. It can be used for tissue paper making and the surface pulp, lining pulp, core pulp and bottom pulp of the board paper etc. Suitable for medium and high speed paper making machine.
16-shed double and a half layer polyester forming fabric is suitable for producing quality printing paper, such as offset printing paper, copper plate paper, newsprint and cigarette paper series (wrap paper and filter tips paper), Also is could be used for producing toilet paper, tissue paper and surface pulp, lining pulp, core pulp and bottom pulp of the board paper etc. Suitable for medium and high speed paper making machine.
Multi-shed three-layer fabric is suitable for producing quality printing paper, tissue paper and cigarette paper etc. Suitable for high speed paper making machine.
Product Parameters
Parameter of single and 1.5 layer is as following:

Single & 1.5 layer paper making forming wire
Weaving series & types	Fabric Model	Wire Diameter mm		Density(root/cm)		Tensile strength		Tickness mm	Air Permeability M3/m2h	Force elongation (in 50N/cm Tension,Tension rate not more than)
		Warp	Weft	Warp	Weft	Surface	Joint
4-shed single layer forming fabric	SFW27254	0.20	0.25	29	22	≥600	≥400	0.49	7500±500	0.60%
	SFW27274	0.20	0.27	30	22.5	≥600	≥400	0.51	7600±500	0.60%
	SFW31254	0.20	0.22	35	28	≥600	≥380	0.43	6500±500	0.68%
5-shed single layer forming fabric	SFW27215	0.20	0.25	30	23	≥600	≥350	0.5	7600±500	0.60%
	SFW27285	0.22	0.28	30	23	≥600	≥500	0.48	7800±500	0.60%
	SFW31205	0.20	0.21	35	32	≥600	≥400	0.48	6700±500	0.60%
Application : cultural paper (single glue, double glue and color glue), printing paper, glazed paper, packing paper, common newsprint and etc.
Suitable for common fourdrinier paper machine
8-shed 1.5 layer forming fabric	SFW25358	0.22	0.35	28	19.5	≥700	≥500	0.86	9000±500	0.65%
	SFW25458	0.22	0.38	29.5	19	≥700	≥500	0.88	8500±500	0.65%
	SFW27358	0.22	0.35	29	20	≥700	≥500	0.86	8500±500	0.65%
	SFW27408	0.22	0.40	31.5	19	≥700	≥500	0.88	8000±500	0.65%
Application:packing paper,kraft paper, cardboard , corrugated paper,printing paper and etc
Suitable for common fourdrinier paper machine

Parameter of double layer is as following:

Double layer paper making forming wire
Weaving series & types	Fabric Model	Wire Diameter mm		Density(root/cm)		Tensile strength		Tickness mm	Air Permeability M3/m2h	Force elongation (in 50N/cm Tension,Tension rate not more than)
		Warp	Weft	Warp	Weft	Surface	Joint
8-shed double layer forming fabric	DFW56108	0.17	0.19/0.22	60-61	49-50	≥850	≥650	0.60	6800±500	0.68%
	DFW56016	0.18	0.18/0.20	65-66	49-50	≥900	≥650	0.63	6000±500	0.60%
	DFW62108	0.15	0.16/0.17	70-71	50-51	≥900	≥650	0.65	5700±500	0.68%

Parameter of 2.5 layer is as following:

2.5 layer paper making forming wire
Weaving series & types	Fabric Model	Wire Diameter mm		Density(root/cm)		Tensile strength		Air Permeability		FSI	DI
		Warp	Weft	Warp	Weft	Surface	Joint	M3/m2h	CFM
16-shed double layer forming fabric	2H5608	0.17	0.18 0.13/0.25 0.25	62.5-63.5	51.0-52.0	≥850	≥650	6000	380	121	26.9
	2H5616	0.17	0.20 0.13/0.30 0.30	62.5-63.5	60.5-61.5	≥1500	≥1300	4500	285	139	23.9
			0.20 0.13/0.30 0.30		53.5-54.5	≥1500	≥1300	5500	350	126	26.0
			0.20 0.13/0.35 0.35		59.5-60.5	≥1500	≥1300	3950	250	137	20.6
			0.20 0.13/0.35 0.35		56.6-57.5	≥1500	≥1300	4500	285	131	22.3
			0.20 0.13/0.35 0.35		53.5-54.5	≥1500	≥1300	5050	320	126	23.7
			0.20 0.13/0.35 0.35		50.5-51.5	≥1500	≥1300	5500	350	120	24.6
			0.20 0.13/0.35 0.35		47.5-48.5	≥1200	≥1000	6000	380	115	25.1
			0.20 0.13/0.40 0.40		48.5-49.5	≥1250	≥1050	5050	320	117	21.5
	2H3216	0.22	0.22 0.13/0.35 0.35	47.0-48.0	47.0-48.0	≥1500	≥1300	6000	380	107	24.8
			0.25 0.17/0.40 0.40		46.0-47.0	≥1500	≥1300	5500	350	105	22.4
			0.25 0.17/0.40 0.40		40.0-41.0	≥1500	≥1300	7000	445	94	24.8
	2H3616	0.26	0.30 0.20/0.50 0.50	40.5-41.5	38.5-39.5	≥1500	≥1300	5500	350	89	18.8
					36.5-37.5	≥1500	≥1300	6350	400	85	20.4
					34.5-35.5	≥1500	≥1300	7000	475	82	21.4
Application:printing paper,newsprint ,cigarette paper series (wrap paper and filter tips paper),kraft paper, cardboard , corrugated paper ,toilet paper, tissue paper and surface pulp, lining pulp,core pulp and bottom pulp of the board paper etc.
Suitable for medium and high speed paper making machine.

Parameter of 3 layer is as following:

SSB 3 layer paper making forming wire
Fabric Model	Wire Diameter mm		Density(root/cm)		Tensile strength		Air Permeability		FSI	DI
	Warp	Weft	Warp	Weft	Surface	Joint	M3/m2h	CFM
3LSSB4224	0.22/0.30	0.22 0.22/0.45 0.45	41.5-42.5	43.5-44.5	≥1600	≥1400	5500	350	110	19.6
				41.5-42.5	≥1600	≥1400	6350	400	107	21.3
				39.5-40.5	≥1600	≥1400	7000	445	103	22.6
				37.5-38.5	≥1600	≥1400	8000	505	100	24.4
3LSSB4220	0.22/0.30	0.22 0.22/0.45 0.45	41.5-42.5	49.5-50.5	≥1600	≥1400	5500	350	119	22.2
				47.5-48.5	≥1600	≥1400	7000	445	115	27.1
	0.22/0.28	0.22 0.22/0.50 0.50		45.5-46.5	≥1600	≥1400	6350	400	113	23.4
				42.5-43.5	≥1600	≥1400	7000	445	108	24.3
				39.5-40.5	≥1600	≥1400	8000	505	103	25.7
Application :printing paper, tissue paper and cigarette paper etc.
Suitable for high speed paper making machine.

Detailed Photos

Installation Instructions
1. Before installing the forming wire, kindly check the equipment if it is in good condition, the surface of wires should be forbidden from unevenness, slanting, burr, sand, etc.
2. The running direction must be in accordance with the direction of the arrow on the wire, the wire should be placed in the correct position, and the rollers should be paralleled with each other to prevent the wires from being deflected.
3. There should be a swinging high-pressure water device that used to wash wire. Water pressure is not lower than 6-10 kg/cm² for the medium and low-speed paper machine; speed more than 350m/min, water pressure is not lower than 10-15 kg/cm²; When using multi-layer forming wire, water pressure is not lower than 15-30 kg/cm², meanwhile water should be clean and without sand.
4. When installing the forming wire, firstly let the wire be slightly tensioned, add water to lubricate the operation, adjust the tension to normal after sizing, keep the tension of the low-speed paper machine at 3-4 kg/cm², and high speed one at 4-6 kg/cm².
