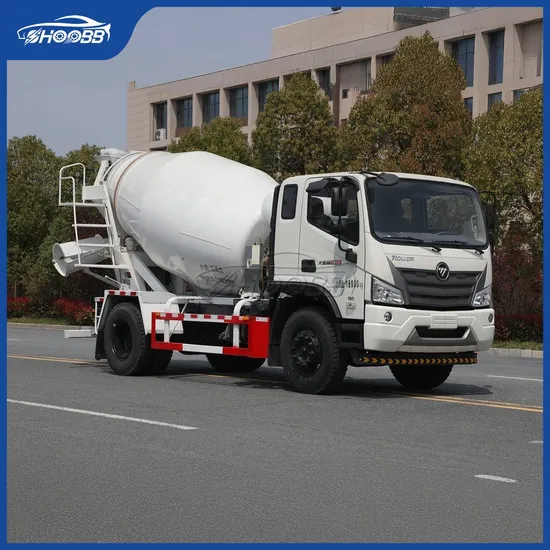

SHOOBB Heavy-Duty Mixing Truck DLQ5180GJBBJ6/China Distributors Right Handed Drive Cement Mixer Trucks

Product Description

SHOOBB Heavy-Duty Mixing Truck DLQ5180GJBBJ6/China Distributors Right Handed Drive Cement Mixer Trucks
Product Description
Concrete Mixer Truck
A mixer truck is also called a concrete mixer truck or cement mixer truck. It is a special vehicle used to transport concrete for construction. A concrete tank truck is also called a snail truck because of its appearance similar to a snail. It refers to a special concrete transportation equipment equipped with a concrete mixer on the chassis of a truck, also known as a truck-type concrete mixer. A concrete mixer truck is a supporting equipment specially used to transport commercial concrete produced by a concrete factory. During the transportation process, the cement mixer truck will always keep the mixing drum in a rotating state to ensure that the transported concrete will not solidify. After the mixer truck transports the concrete, it usually rinses the inside of the mixing drum with water to prevent the residual cement from hardening and occupying space, and to prevent the volume of the mixing drum from decreasing. The upper part of the concrete mixer truck mainly includes the mixing drum, power take-off, front and rear brackets of the mixing drum, hydraulic system, reducer, operating mechanism, cleaning system, etc.The characteristics of concrete mixer trucks are that they can maintain uniform quality of concrete without bleeding,stratification, segregation, and premature setting under the condition of large transportation volumes and long transportation distances.
They are suitable for the construction of roads, airports, water conservancy projects, and large-scale construction projects, and are indispensable equipment for the development of commercial concrete. As supporting transportation machinery for concrete factories or mixing stations, mixer trucks connect concrete factories and mixing stations with many construction sites. If used in conjunction with concrete delivery pumps, "relay" delivery can be carried out at the construction site, the intermediate turnover of manpower can be completely eliminated, and the concrete can be continuously delivered to the construction pouring point, realizing high efficiency and full mechanization of concrete delivery. This not only greatly improves labor productivity and construction quality, but also facilitates civilized construction on site, and shows its superiority for urban construction, especially narrow construction sites.

Working Principle Of Concrete Mixer Truck

The working principle is to take out the power of the vehicle chassis through the power take-off device and drive the variable pump of the hydraulic system to convert mechanical energy into hydraulic energy and transmit it to the quantitative motor. The motor then drives the reducer, which drives the mixing device to mix the concrete.
Product Parameters

CONCRETE MIXER TRUCK
Product Name	Mixer Truck
Keywords	Concrete Mixer Truck
Model	DLQ5180GJBBJ6
Drive Type	4X2
Wheelbase	3600 mm
Body Length	7.45 m
Body Width	2.35 m
Body Height	3.6 m
Rated Load	10.105 T
Vehicle Weight	7.7 T
Maximum Output Power	140 kw
Number Of Cylinders	4 Cylinders
Maximum Horsepower	190HP
Displacement	4.088 L
Rated Speed	2600rpm
Tank Volume	3.98 m3
Front Axle Load	/
Rear Axle Load	/
Tire Specifications	10.00R20 18PR
Front Track	1740 mm
Rear Track	1755 mm
This Parameter Ls For Reference Only. The Actual Vehicle Configuration Shall Be Subject To The Actual Vehicle In The Store.

Detailed Photos
High-Efficiency And Energy-Saving Technology

The engine operates in dual power mode to meet the needs of different working conditions such as full load and no-load. By collecting driving data of various working conditions, matching the optimal power configuration, saving fuel for customers, and coordinating system matching, lightweight and synchronous design technology, Dayun's unique economic transmission combination for mixer trucks is formed, which greatly reduces fuel consumption.
Low Center Of Gravity And Lightweight Technology
Through recalculation, analysis, verification, and optimization of various systems of the mixer truck, the center of gravity and weight of the mixer truck are both reduced, with the center of gravity reduced by more than 140mm, the weight of the whole vehicle reduced by an average of 3%-5%, the weight reduced by more than 1 ton, and the fuel consumption of the whole vehicle reduced by about 1%, which can not only ensure the driving stability and safety of the mixer truck, but also reduce fuel consumption by lightweight.
Reliability And Comfort Technology
Frame structure, robot-welded body, the cab is solid and reliable as a whole, the cab adopts a suspended structure, and the seat can be adjusted according to the road conditions to achieve the best shock absorption effect.
Steering Matching Technology
The mixer truck has better steering coordination, more stable operation, better tire durability, and further optimization of chassis pipelines and front axle steering angles, reducing the turning radius of the vehicle by more than 10%, making the vehicle lighter and more flexible, and the system coordination better.
Super Adaptability
The chassis of the mixer truck is professionally adjusted to achieve seamless matching with the upper body. It has the characteristics of strong maneuverability, environmental protection and energy saving, high efficiency and reliability, and good vehicle controllability. It has super adaptability to construction under various extreme environmental requirements such as high temperature, high cold, and tunnels.

The Structure Of The Concrete Mixer Truck

The concrete mixer truck is mainly composed of chassis and upper parts, which can be simply divided into ten parts: chassis system, hydraulic transmission system, mixing tank, discharging system, cleaning system, subframe, control system, support wheel system, feeding system, and circuit system.
1. Chassis system: the main component of the mixer truck, the transportation function of the entire concrete mixer truck is realized by the chassis.
2. Hydraulic transmission system: the engine power taken out by the power take-off is converted into hydraulic energy (displacement and pressure), and then output into mechanical energy (speed and torque) through the motor to provide power for the mixing drum to change.
3. Mixing tank: the mixing drum is the key component of the entire mixing and transporting truck. It is a container for storing concrete and plays a decisive role in preventing concrete from solidifying and segregating. There are blades inside the tank, which mainly play the role of mixing and guiding materials.
4. Discharging system: It is mainly composed of the main discharge trough, auxiliary discharge trough, locking rod, etc. The auxiliary discharge trough plays the role of extending the length of the main discharge trough.
5. Cleaning system: The cleaning system is mainly composed of pressure water tank, water gun, water pipe, valve, etc. The air pressure water supply is used. The main effect is to flush the hopper after loading and the mixing drum and discharge trough after discharging to prevent concrete adhesion.
6. Subframe: The subframe of the mixer truck is the main load-bearing part. The load during operation is almost supported by it and then transmitted to the chassis.
The subframe also plays the role of reducing the impact load caused by the fluctuation of the road surface and deceleration. The entire subframe consists of the main beam, the front support frame, and the back support frame.
7. Control system: The operation system consists of a controller, a linkage shaft, a flexible shaft and a connecting rod mechanism, which mainly controls the speed and rotation direction of the mixing drum.
8. Support wheel system: The part where the rear of the mixing tank is connected to the subframe mainly plays the role of supporting the drum body.
9. Feeding system: It is mainly composed of a feed hopper and a bracket. The feed hopper is subject to greater impact wear, and the material requires good wear resistance. The bracket mainly plays the role of reducing impact force.
10. Circuit system: mainly refers to the entire circuit of the mixer truck, including the taillights, side marker lights, corridor lights, cooling fan motors, etc.
Cai Body Display
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer with over 40 years of experience in research and development, design, and manufacturing in China.
Q 2: How long is the delivery time for bulk orders?
A4: It depends on the order quantity. Generally, the delivery time is 15 to 40 working days. Please contact us before placing an order.
Q3: Do you provide OEM/ODM services?
A4: Yes, we accept OEM/ODM.
Q4: Can I customize transportation vehicles of various models?
A4: Yes. We have the most advanced modern production equipment and manufacturing processes. We can make products according to your special requirements.
Q5: How do you guarantee quality?
A5: Yes. We strictly control the quality of raw materials and finished products according to the ISO9001 quality control system. We guarantee that all products are 100% qualified.
Q6: How will you deliver my order?
A6: Generally, different shipping methods are adopted according to the quantity, volume, and weight of the order. For orders weighing 1 to 200 kilograms, we recommend air freight. For bulk orders, we will ship by sea. It depends on the specific situation. We will compare and find the best solution.
07: What's your MOQ?
A7: One Unit Trailer or Truck.
