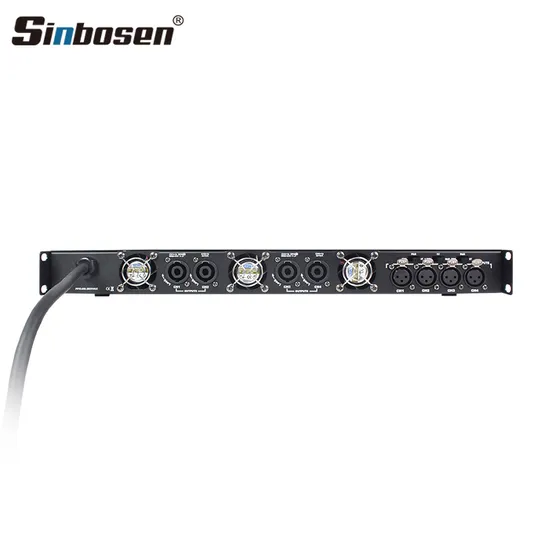

K4-1000DSP Professional Audio 4 Channel Class D 1000 Watts DSP Power Amplifier

Product Description

3 Years Warranty Professional Audio Amplifier 1000 watt 4 channels Digital 1U class d home audio dsp power Amplifier Product Description

Model	K4-800 dsp	K4-1000 dsp	K4-1400 dsp	K4-1700 dsp
8Ω Stereo Power:	4x800W	4x1000W	4x1400W	4x1700W
8Ω Stereo Power:	4x1200W	4x1400W	4x2200W	4x2800W
8Ω Stereo Power:	2x2400W	2x2800W	4x2200W	2x5000W
4Ω Bridge Power:	2x3100W	2x3500W	2x5500W	2x6100W
THD (20Hz-20kHz for 1W):	<0.1%
THD (1kHz and 1 dB below clipping):	<0.05%
DSP Processor:	YES
Signal Noise Ration:	>106dB
Frequency Response(+/-0.1dB):	10Hz-34kHz
Damping coefficient:	>600
Impedance(balanced/unbalanced):	20KΩ/10KΩ
Gain (optional):	0.775V/1V/32dB
Output socket:	Speakon Connectors(NEUTRIK)
Input socket:	Combo XLR type,3pin(NEUTRIK)
Link socket:	No
Protection:	Short circuit, open circuit, thermal, overload, DC, super audio protection
Power Requirement:	90-265V~50Hz(PFC)
Size(W x H x D):	483x429x44mm
Weight(net):	8kg	9kg	10.5kg	11kg

PROFESSIONAL POWER AMPLIFIER
1 Performance overview
a,High efficiency and energy saving, operation cost is low,
b,Compact and light weight,structure is firm.
c,Comply with the safety and EMC standards.
d,90~260VAC / 50~60HZ Wide range power supply.
e,First-class quality, thanks for the components from international high-end manufacturers.
f,Temperature control fan for quiet operation.
g,Modular design and maintenance is convenient.
h,Very suitable for mobile show.
i, Reasonable design makes you feel relaxed in the process of using.
2 Environmental protection, energy saving, cost saving
Advantages of high efficiency:
* Low working temperature, rlability will be improved obviously.
* The size and weight are only 1/3 of tradition amplifier.
" The cost for transportation, handling, installation will reduce obviously.
* Saving energy, reducing operating costs
* Environmental protection
3. Cooling instructions: Good heat dissipation /High quality fans
The cooling mode of the equipment is as follows: the cold air is sucked through the ventilation hole of the front panel, and the heat is taken out from the rear panel.
DSP Software Features:
1. Output channel temperature is visualized on the display, monitoring the temperature status of the amplifier at any time.
2. Output amplifier protection indicator, PRO indicator is always on in amplifier protection state.
3. 1U panel equipped with 2 inch color screen, can directly adjust the parameters to be adjusted or connected to the computer through PC control software to control, very convenient, intuitive and simple.
4. Operation panel can store 30 kinds of user programs, quick call, convenient and fast
5. Panel locks the device to prevent misuse.
6. Quick copy function; copy the tuned parameters to other channels
Attention!
Normally rating power should be amp-power x 1,5times comparing power of tops speaker and amp-power x 2times for the subwoofer.
To protect and extend your amplifier's working life, please don't use this amplifier under 2 ohms.
K series amplifier are suit for Middle and High speaker, not good for Subwoofer.
