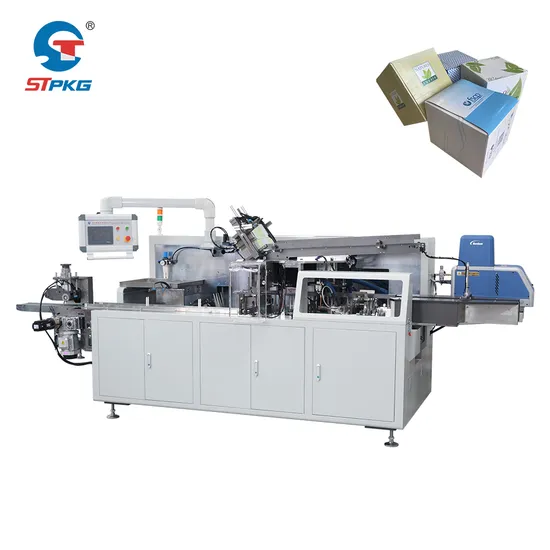

Household Paper Packaging Equipment, Hot Sale Automatic Cube Box Facial Tissue Packing Machine
| US$35,000.00 | 1 sets (MOQ) |
Basic Info.
Model NO.
ST-100F
Application
Tissue
Type
Tissue Packaging Machine
Forming Species
Box Molding
Forming Function
Tissue Packaging
Driven Type
Electric
Material Type
Tissue
Packaging
Tissue Box
Packaging Material
Paper
Usage
Fill Paper Tissue to Carton and Close or Seal
Packaging Type
Cartons
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Machine Name
Automatic Box Facial Tissue Packing Machine
Dimension(L*W*H)
3600X1900X1600mm
Packing Speed
50-80 Boxes/Min
Weight
2000kg
Packing Material
Paper
Certification
CE Certificate
Name
Facial Tissue Packing Machine
Function
Automatic Fill and Seal or Close Carton
Applicable Industries
Hotels, Restaurant
Product Name
Facial Tissue Paper Box
Voltage
380V/50Hz
Transport Package
Export Standard Wooden Case Packing
Trademark
SHENGTAI
Origin
Zhejiang, China
HS Code
8422309090
Production Capacity
20 Set/Sets Per Month
Product Description
Hot Sale Automatic Cube Box Facial Tissue Packing MachineProduct Description
Product profile Performance technical parameters:
| Item/model | ST-100F | |
| Paper quality of carton | 350-400g/m³ | |
| Maximum packing specification | L115mm×W115mm×H130mm | |
| Packing speed | 30-70 boxes/min | |
| Hot melt machine power | 4KW | |
| Motor power | 2.7KW | |
| Total power | 6.7KW | |
| Power supply type | 3phase 4wire 380V 50Hz | |
| Machine noise | ≤80dB | |
| Air supply | 0.5-0.8 Mpa | |
| Air consumption | 120-160L/min | |
| Outline dimensions | Main machine | L4312×W1300×H1800mm |
| Conveying mechanism | L2000×W660×H1200mm | |
| Machine weight | 2500Kg | |
Electrical List:
| Item | Name | Brand | Country |
| 1 | Touch screen | Omron | Japan |
| 2 | PLC | Panasonic | Japan |
| 3 | Encoder | Omron | Japan |
| 4 | Combination switch | Schneide | French |
| 5 | Frequency | Panasonic | Japan |
| 6 | photoelectric switch | SICK | Germany |
| 7 | proximity switch | Omron | Japan |
| 8 | Intermediate Relay | Omron | Japan |
| 9 | Breaker | Schneide | French |
| 10 | Button switch | Schneide | French |
| 11 | AC contactor | Schneide | French |
| 12 | Emergency stop switch | Schneide | French |
| 13 | Switch power supply | Delta | Taiwan |
| 14 | Air switch | Schneide | French |
| 15 | Magnetic valve | JELPC | Germany |
| 16 | Vacuum generator | JELPC | Germany |
| 17 | Vacuum cup | AIRBEST | Swiss |
| 18 | Decelerating motors | HANXING | China |
| 19 | Servo Motor | Delta | Taiwan |
| 20 | Conveyor motor | DELI | China |
| 21 | Timing belt | SONTIAN | Japan |
| 22 | Timing belt | EHRE | Germany |
(This list is for reference only,in the actual production there may be some difference with this list)
