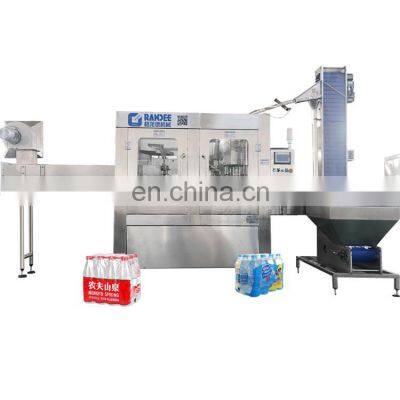

Best price 2000bph 3 in 1 PET bottle mineral water filling machine bottling line

Product Description

Product Description
Best price 2000bph 3 in 1 PET bottle mineral water filling machine bottling lineProduct DescriptionMachine description:1.The automatic water filling machine use direct connection technology between air conveyor and in-feeding starwheel to substitute in-feeding screw and conveyor to ease the process of bottle-size-changing. 2.Neck-hanging technology is applied in bottle transportation of the automatic water filling machine. Instead of traditional starwheel, we use neck-hanging gripper to make bottle-size-changing easily , without equipment height adjustment ,only arch board and starwheel such little nylon parts need to be changed. 3.Specially-designed rinser grippers which are made of stainless steel are firm and endurable, with no contact to screw part of the bottle to prevent second pollution in this automatic water filling machine. 4.Rapid gravity filling valve with high flow makes filling faster with accurate liquid level and without any liquid loss. 5.Splint of starwheel using twist descending way to simplify the process of bottle-size-changing. The automatic water filling machine applies to the production of purified water and mineral water. Features:1.It is adopted that direct connection between air conveyor and inlet starwheel instead of screw and conveyor chains, which is easier for bottle changing.2.There is no need to adjust the height of equipments through neck holding tech for bottle transportation. And what is only to change some spare parts.3.High speed filling line is of clamp transferring technology. Bottle shapes are more varied, and the working table inside the machine is more laconic.4.By 3-in-1 monoblock, the bottle goes through rinsing, filling and capping with little abrasion, and the transferring is stable, bottle changing is easier. Specially designed stainless steel bottle clamp dose not contact the thread parts of the bottle neck, avoiding the second contamination.5.High speed and large flow filling valve assures the high filling speed and exact fluid level.6.Parts contact with the liquid are all of excellent stainless steel or food level plastic. The electric system is of international brand and achieves the national food sanitary standard. 7.The bottle-out starwheel is of screwdown shape. When bottle size is changed, there is no need to adjust the transferring chain's height. 8.3-in-1 monoblock is composed of rinser, filler, capper, frame, sealing window, main motor and transferring system, cap unscrambler and electric control system etc. Main technical parameter:ModelCGF8-8-3CGF14-12-5CGF16-16-6CGF18-18-6CGF24-24-8CGF32-32-10CGF40-40-12Capacity(500ml/BPH)200030004000600080001200016000Suitable bottle shape and sizeBoth round of square bottle, 220ml-2000ml, Dia: 50-108mm, Height: 150-340mmCompressed air pressure0.3-0.7MPaBottle washing mediumSterile waterWashing pressure0.25MPaMain motor1.52.22.22.235.57.5Dimension(mm)2000*1600*23002200*1800*23002400*1900*23002500*2000*23002700*2100*23002970*2260*27003780*2800*2700Weight(KG)2000250030003500450065008500 Machine show: Detailed ImagesWashing Part:The bottle enters into the rinsing part of three-in-one machine through air conveyor.The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position againFilling valve: Long tube filling type with 2 times filling process to make sure perfect filling level Liquid tank, filling valves, controlling rings, upgrading cylinder.High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic. Capping Part: Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. The heads are raised and lowered by the action of a follower that is riding on a shaped cam.RO SystemBesides Water filling machine, this RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department.This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. Blowing Machine with different options: 1. Semiautomatic Blowing Machine for 800BPH-2000bph from 0.2-2.5L bottle with 2 or 4 cavities. 2.Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity,etc from 2500BPH to 12000BPH for 500ml bottle.Automatic sleeve shrink labeling machineCapacity: 100-350bottles/min can be choosedLabel material: PVC PET OPS,etcBottle material: PET PE PP GlassBottle Diameter: 28 ~ 120mmBottle Height: 15~320mmBottle shape: round, square, ellipse, rectangularLabel length: 30~250mm(max)Label thickness: 0.03~0.13mm Automatic L PE Film Shrink Packing Machine shrink film material: PE Maximum packing size: 420*300*350mmMax. sealing size: 650mmLevel of conveyor: 950±30mmMaximum shrink temperature: 160-260℃Capacity: 8-12packages/min Power: 26KW/16KWWeight: 1500KG Company information Workshop detail Our exhibition Project cases FAQQ1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: Are you a trading company or a manufactory?A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q3: Do you have technical support after we purchased your machines?A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q4: If you buy our machines, can you offer us wear-out spare paRts?A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
