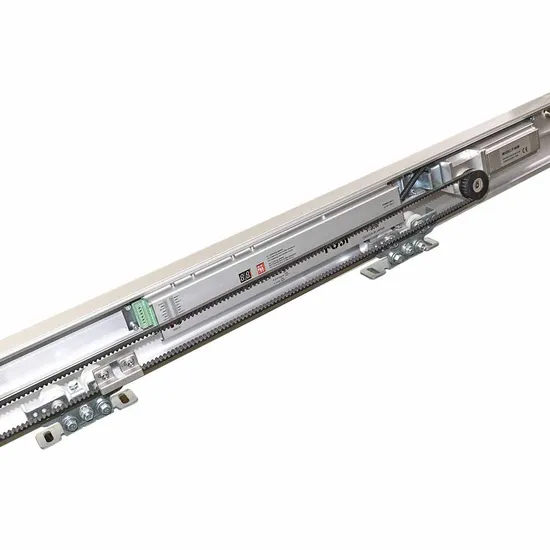

90kg Automatic Sliding Door Operator, Small Motor Automatic Door Driver
Basic Info.
Model NO.
F-90W
Material
Aluminum Alloy
Type
Sliding
Open Style
Sliding
Opening Type
Sensor , Bean Sensor , Remote Control
Color
Silver
Certification
CE
Position
Commercial
Surface Finishing
Finished
Single Door Leaf Widths
700mm to 1500mm
Bi-Parting Door Leaf Widths
650mm to 1350mm
Single Door Leaf Weights
90kg
Bi-Parting Door Leaf Weights
100kg
Single Slide or Bi-Psrting Action
up to 3000mm Clear Opening Widths
Sound-Damping with Replaceable Track Rai
Back-up Battery Use on Emergency
Transport Package
Stardand Carton Package
Specification
CE, RoHS, SGS, UL
Trademark
Caterly/FUJI
Origin
Shenzhen, Guangdong, China
HS Code
83026000
Production Capacity
1000sets/Month
Product Description
90KG Automatic Sliding Door Operator , Small motor automatic door driver Competitive Advantage:1, Wide voltage (AC80-250V)low power consumption when at work,energy saving when at leisure .
2, Intelligent design, easy to install and adjust .
3, Digital programs, running parameters can be revised easily.
4, Specially designed noise-reduction track rail produces noise greatly,ensure the rollers run smoothly .
5, Advanced brushless DC motor and the worm-reduction gear are integrated together .which has advantages such as higher efficiency, large torque and longer life span ,no need for mechanical lock .
6, Different triggering modes are available, such as fire warning, safety beam sensor, handle button, etc.
7, 1 millions times of tests passed.
8, CE,SGS,IS09000,CQC
9, Super quite, safe
Specifications:
| Type | Single-Winged | Bi-parting | |
| Model | F-90W | F-90WS | |
| Door Weight | 100kgX1(door) | 90kgx2(door) | |
| Door Width | DW=700mm to 1500mm | DW=650mm to 1350mm | |
| Installation | Surface Install | Surface Install | |
| Motor | DC24V Brushless DC Motor | DC24V Brushless DC Motor | |
| Controller | The Micro-controller | The Micro-controller | |
| Power Consumption | 55W | 55W | |
| Voltage | AC80 to 250V (Regulate) | AC80 to 250V (Regulate) | |
| Environmental Temperate | -20'c to +50'c | -20'c to +50'c | |
| Volume | 60decibel(max) | 60decibel(max) | |
| Starting Speed | 450mm/second to 750mm/second | 450mm/second to 750mm/second | |
| Starting Times | Regulate from 0.5 second to 15 second | Regulate from 0.5 second to 15 second | |
| Transmission | Rack belt 150 S8M | Rack belt 150 S8M | |
| Open door range : Full-open /Half-open(The distance can be regulated) | Full-open /Half-open(The distance can be regulated) | ||
| PFC Power efficiency : 0.95 (AC100 Full load) | 0.95 (AC100 Full load) | ||
