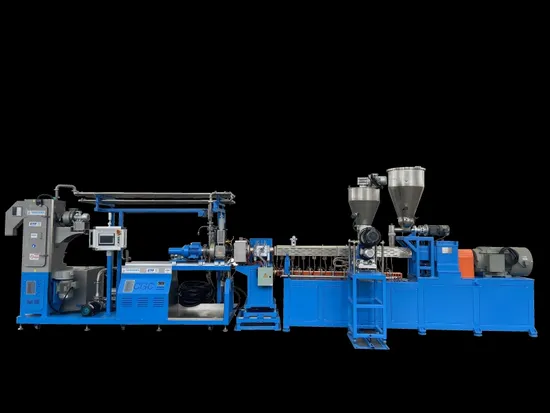

Plastic Compounding Extruder PP Production Line
Basic Info.
Model NO.
PSHJ & SHJ
Type
Granulation
Plastic Processed
Polyester
Product Type
Granulating Extruder
Feeding Mode
Multiple Feed
Assembly Structure
Separate Type Extruder
Screw
Twin-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
Capacity
500-800kg/H
Applications
All Kinds of Polymer Mixing
Electric Brands
Siemens
Control
PLC + Touch Screen
Extruder Weight
800kg
Transport Package
Pallet and Wooden Box
Specification
other
Trademark
XINDA
Origin
China
HS Code
84772010
Production Capacity
200sets/Year
Packaging & Delivery
Package Size
1000.00cm * 1000.00cm * 1000.00cm
Package Gross Weight
1000.000kg
Product Description
Jiangsu Xinda has 30 years of experience plastic machinery twin screw extruder for making plastic granules
Product Description
Advantage
The clamshell design makes screw changes and cleanout quick and easy, adding to its versatility
Parameter
| Twin Screw Diameter:mm | 21.7 | 35.6 | 50.5 | 62.4 | 71 | 92 | 126 | 132 |
| Screw Central Distance:mm | 18 | 30 | 42 | 52 | 60 | 78 | 102 | 110 |
| Twin Screw Length:L/D | 28-52 | 28-52 | 28-52 | 28-52 | 28-52 | 28-52 | 13-18 | 13-18 |
| Main Extruderr Motor Power:kW | 4-5.5 | 18.5-30 | 55-110 | 75-200 | 95-250 | 250-450 | 160-200 | 200-280 |
| Twin Screw Speed Max.:rpm | 600 | 600/800 | 600/800 | 600/800 | 600/800 | 600/800 | 300 | 300 |
| Reference Output kg/hour | 5-10 | 30-120 | 100-300 | 250-450 | 350-700 | 800-2000 | 1000-2000 | 1500-3000 |
Application
