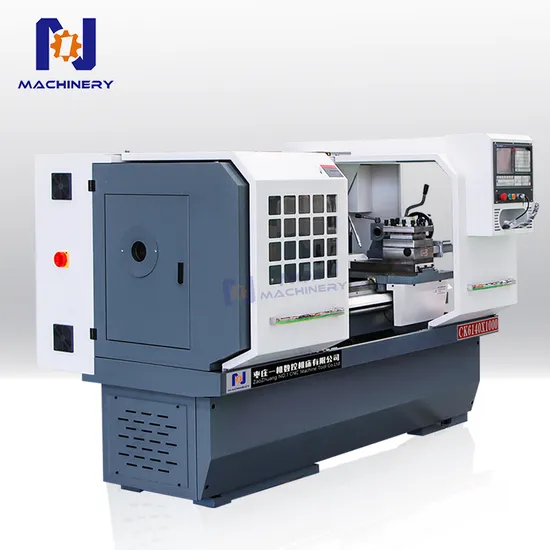

CNC Lathe Ck6140 CNC Lathe High Quality Siemens Control System Machine

Product Description

Product Description
The CK6140 CNC lathe ensures extremely high - precision processing. It can accurately machine various rotary surfaces such as outer circles, inner holes, conical surfaces and threads, meeting the strict requirements of part machining accuracy. Equipped with an advanced CNC system, this lathe enables automated processing. By programming, it can continuously and stably complete a series of machining operations, which significantly improves production efficiency and reduces labor intensity.

Specifications

Machine Model	Unit	CK6140	CK6150
Swing over bed	mm	400	500
Swing over cross slide	mm	210	260
Distance between centers	mm	750/1000/1500/2000	750/1000/1500/2000
Spindle bore	mm	52(Optional 80)	52(Optional 80)
Spindle bore taper	-	MT6	MT6
Spindle nose type	-	C6	C6
Spindle speed steps	-	Manual 2 steps	Manual 2 steps
Spindle speed range	rpm	L:100-500 H:500-1800 (Optional 90-1800 stepless)	L:100-500 H:500-1800 (Optional 90-1800 stepless)
Turret/tool post	-	Electric 4 position	Electric 4 position
Tool size	mm	25 x 25	25 x 25
X axis travel	mm	230	280
Z axis travel	mm	750/1000/1500/2000	750/1000/1500/2000
X axis rapid traverse	mm/min	6000	6000
Z axis rapid traverse	mm/min	8000	8000
Tailstock quill diameter	mm	65	65
Tailstock quill taper	-	MT4	MT5
Tailstock quill travel	mm	130	130
Main spindle motor	kw	4	5.5
Coolant pump motor	kw	0.09	0.09
Weight for 750	kg	1700	1800
Weight for 1000	kg	1800	1900
Weight for 1500	kg	1900	2000
Weight for 2000	kg	2000	2100
Dimension for 750	mm	2200x1650x1700	2200x1700x1750
Dimension for 1000	mm	2500x1650x1700	2500x1700x1750
Dimension for 1500	mm	3000x1650x1700	3000x1700x1750
Dimension for 2000	mm	3500x1650x1700	3500x1700x1750

Details Display


Packaging & Shipping
Company Profile
Zaozhuang NO.1 CNC Machine Tool Co.,LTD is located in the beautiful city, Tengzhou,Shandong Province,China.We specialized in manufacturing & exporting machine tools to the world for more than 30 years. Our factory has More than 30,000m² of the factory with more than 200 workers.We have got many international certifications such as lSO, WIPO, CE, EAC,BV, TUV, SGS, and patents, Our machines have been exported to more than 100 countries and regions, and provide long-term overseas technical guidance and after-sales service for these countries .We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management. Strictly QC control with more than 24 steps testing processes.We wish to cooperate sincerely with friends all over the world to realize mutual development.





FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,I can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as lathe machine ,cnc lathe machine ,milling machine ,cnc milling machine ,vertical machining center ,drilling machine ,radial drilling machine ,sawing machine ,shaper machine and so on .
3: Where is our factory located? How can I visit there?
A: Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A: FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
