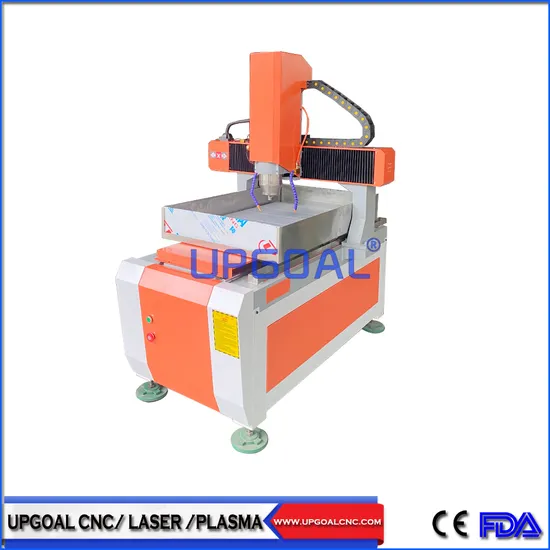

Metal CNC Router Engraving Milling Machine Heavy Duty Type with Mach3 Controller 600*900mm

Product Description

Metal Cnc router Engraving Milling machine heavy duty type with Mach3 Controller 600*900mm
Features
1. Heavy duty cast Iron structure( cast iron machine bed & working table & gantry & Z-axis) with vibration temper aging treatment ensures no deformation for long time.
2.Cast iron T slot working table with platform moving type. Durable without deformation enable positioning more precision .

3.Stainless steel water slot cooling system with program control the water spraying, ensuring the cooling for the metal & hard materials.
4.Equipped with Hiwin Taiwan linear square guide rail for XYZ-axis, effectively improved the precision.
5.Three axis with precision TBI ball screw transmission ensure the engraving speed and accuracy.
6.High variable speed powerful 5.5kW water cooling spindle, big torque, longer life, strong cutting ability and continuous work for long time.
7.Powerful Leadshine hybrid servo motor and driver H2-758 for XYZ-axis, compared with the stepper motor, ensuring high speed and precision working
8.Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adopt high quality electronic parts, minimizing fault rate.
9. Mach3 control system(WXHC), with USB port for desktop or laptop computer, showing the processing path , more convenient.
10. Dust proof design for XY-axis
11. With the function of break-point memory ,power failure resuming and automatic home/origin correction function.Effectively ensure long time working precision.
12. Working Pause, Speed adjust, Working depth adjust at any time while working. Preview the 2D&3D working result With simulation function. Variable Speed is suitable for various materials and industry.
13. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection.
13..Auto tools calibration, conveineint for working .
14. Auto lubrication system, more convenient for machine lubricating.

Technical Parameters

Effective working area	600(X)mm*900(Y)mm*200(Z)mm
Feeding height	200mm
Materials	Heavy duty cast iron structure for machine bed & working table & gantry & Z-axis
Working table	Cast iron T slot
Moving type	Platform moving
Guide rail	Linear square guide rail ( Hiwin, Taiwan)
Transmission	Lead ball screw for XYZ-axis( TBI)
Driving mode	Leadshine hybrid servo motor and driver (H2-758)
Spindle motor	5.5kw water cooling(ER25,HQD)
Spindle speed	18000-24000rpm
Inverter	Fuling
Voltage	AC 220V, 50/60Hz, single phase or AC 380V, 50/60Hz, three phases
Traveling speed	8000mm/min
Engraving speed	6000mm/min
Machine accuracy	0.02mm
Control system	MACH3 control system( WXHC, 3 axis)
Suitable software	Artcam, Type3, Ucancam V9,etc
Carving Instructions	G code *Uoo *mmg *plt HPGL
Running environment temperature	0-45 ºC
Relative humidity	30%-75%
Cooling system	Stainless steel water slot cooling
Tool calibration	Auto
Lubrication system	Auto
Certificate	CE

Application
Mould of Copper, Iron, aluminum, stainless steel. Shoe mould, mobile mould, Red Copper electrode, Building model, name tag, copper stamp.
Accessories & Packing
Reference Working Videos
https://youtu.be/EN4Vk4H4dvA?si=Pz03KC6kCYiAdlC6

For more information, just feel free to contact us!
