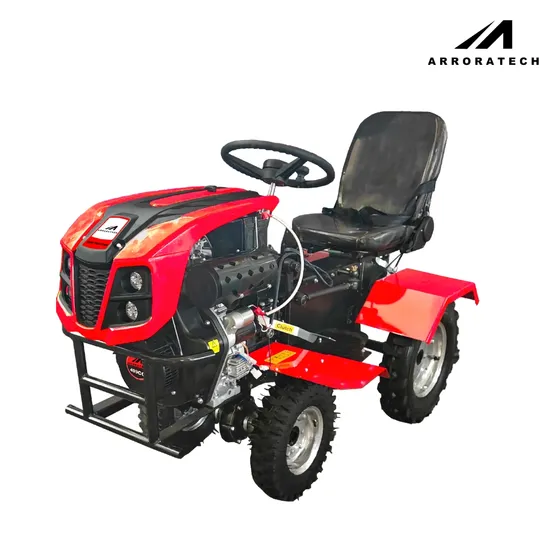

Multifunctional Mini Tractor 4WD Farm Tractor Power Tiller Rotary Tiller Motocultor Cultivator
Basic Info.
Model NO.
AR-MT135D-1
Application Field
Agriculture, Livestock, Aquaculture, Fisheries, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Traction
Drive Type
Gear Drive
Arbor Configuration
Horizontal Axis
Certification
CE
Color
Red
Warranty
One Year Guarantee
Engine
188fe Diesel Engine
Rated Power
10.0HP
Fuel Capacity
5.5L
Wheel Size
400-8 and 500-12
Blades
4PCS 5 Groups with
Start
Electric Start / Key Start
Battery
Yes
Transport Package
Wooden Box
Specification
158*88*77cm
Trademark
Arroratech
Origin
Chongqing, China
HS Code
84322900
Production Capacity
150000
Packaging & Delivery
Package Size
158.00cm * 77.00cm * 88.00cm
Package Gross Weight
290.000kg
Product Description
Product DescriptionSPECIFICATIONS:
| MINI TRACTOR SPECIFICATION | ||||
| S.N | ITEM | UNIT | SPECIFICATION | |
| 1 | MODEL | \ | AR-MT135D | |
| 2 | STRUCTURE | \ | SEAT | |
| DRIVE | \ | 4×4 | ||
| 3 | ENGINE | MODEL | \ | 188FE |
| STRUCTURE | \ | diesel,Single cylinder,vertical,four-stroke,direct injection,air-cooled | ||
| RATED POWER | kW | 6.5 | ||
| RATED REVOLUTION | r/min | 3600 | ||
| STARTING SYSTEM | \ | MANUAL/ELECTRIC START | ||
| OIL TYPE | \ | DIESEL | ||
| 4 | MACHIANE SIZE(L×W×H) | mm | 1680×970×1200 | |
| 5 | STANDARD ACCESSORIES | \ | 40PCS DRYLAND BLADES(4PCS *5 GROUPS *2 SIDES) | |
| 400-8 wheels (pair) | ||||
| 500-12 wheels (weight bearing type) (pair) | ||||
| 500-12 iron wheels(pair) | ||||
| 6 | N.W | kg | 248 | |
| 7 | G.W | kg | 275 | |
| 8 | PACKAGE | mm | 1580×770×880 | |
| 9 | ROTARY BLADES | \ | DRYLAND BLADES | |
| 10 | DRIVE TYPE | \ | FULL-GEAR DRIVE | |
| 11 | TURNING SYSTEM | \ | BEND AND TURN | |
| 12 | CONNECTING SYSTEM | \ | UNIVERSAL | |
| 13 | REAR GEARBOX | REVOLUTION -WALKING | r/min | 3 GEAR:106.6 2 GEAR: 62.5 1 GEAR: 15.6 REVERSE GEAR:22.3 |
| REVOLUTION -ROTARY WORKING | r/min | 3 GEAR: 26.8 2 GEAR: 15.7 1 GEAR: 3.9 REVERSE GEAR:5.6 | ||
| WHEEL MODEL | \ | 500-12 | ||
| SPEED -WALKING | km/h | 3 GEAR:11.05 2 GEAR: 6.48 1 GEAR: 1.62 REVERSE GEAR:2.31 | ||
| OIL CAPACITY | L | 2.2 | ||
| 14 | FRONT GEARBOX | REVOLUTION | r/min | 3 GEAR:145.2 2 GEAR: 85.1 1 GEAR: 21.3 REVERSE GEAR:30.4 |
| WHEEL MODEL | \ | 400-8 | ||
| SPEED | km/h | 3 GEAR:11.05 2 GEAR: 6.48 1 GEAR: 1.62 REVERSE GEAR:2.31 | ||
| OIL CAPACITY | L | 2.2 | ||
| 15 | ROTARY BLADES | REVOLUTION | r/min | 3 GEAR:145.2 2 GEAR: 85.1 1 GEAR: 21.3 REVERSE GEAR:30.4 |
| MAX. DIAMETER | mm | 180 | ||
| QTY OF BLADES | PCS | 40 | ||
| 16 | WORKING WIDTH | mm | 1350 | |
| 17 | WORKING DEPTH | mm | 100-200 | |
| 18 | CLUTCH TYPE | \ | FRICTION DISC TYPE | |
| 19 | CLUTCH CONDITION | \ | OPEN | |
| 20 | ROTATY TYPE | \ | FRONT ROTARY | |
| 21 | PRODUCTIVITY | hm2/h.m | ≥0.04 | |
| 22 | FUEL CONSUMPTION | kg/hm2 | ≤30 | |
FAQ
1. who are we?
We are based in Chongqing, China, with more than 10 years export experience for the agricultural machines and general machines. And our main market: Europe,Southeast Asia ,Africa ,South America and Mid East .
2. how can we guarantee quality?
Pre-production sample before mass production for internal and customers' confirmation
Final Inspection before packing and shipment.
3.what can you buy from us?
Gasoline engine,Gasoline water pump,Gasoline Power tiller,Diesel Power Tiller,Gasoline Generator
4. why should you buy from us not from other suppliers?
Over 10 years' focusing the field. We always make priority of the customers' demands.
Follow the requests and provide more suggestions and solutions perfectly.
Keep all details updated to buyers, like the buyers control all of the process of production.
Good control of the production to make sure of the in-time delivery.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Type: T/T,L/C,Credit Card,Western Union;
Language Spoken:English,Chinese,Russian, Spanish, French
24/7 on-line service.
