Q1330 Metal Lathe Pipe Threading Lathe Machine for Cutting

Product Description

Product Overview
Product Description
-This series of pipe thread lathes is mainly used to process internal and external threads of pipes, and they can also be used as an ordinary lathe to process the outer circle, inner hole, and end face of shaft, pipe, and disk parts.
-This machine tool is widely used in the petroleum industry, which can process and repair parts such as drill pipes, joints, and casings. It is also used for the thread processing of various pipes and drill pipes in industries such as coal, chemical engineering, water conservancy, and geological exploration.
Standard configuration :
1-With 3 jaws double manual chuck (630mm) ;
2-With 4 station manual tool post and manual tailstock ;
3-With Whole casting bed ;
4-Voltage 380V/220V/415V ,3 Phase;
Optional configuration :
1-Steady rest ,follow rest , back steady rest;
2--Digital readout ;
3- Processing length: 2000mm,3000mm,4000mm;5000mm...

Product Parameters

Item	UNIT	Q1330
Max dia.swing over bed	mm	800
Max dia.swing over cross slide	mm	470
Max.length of work-piece	mm	1500
Maximum machining length	mm	1250
Pipe threading range	mm	φ80-295
Width of bed	mm	600/650
Spindle bore	mm	305
Spindle center height	mm	400
Power of spindle motor	KW	15
Spindle speed	RPM	VF2 STEPS 20-100/100-300
Z axis feed grade/range	Mm/r	32/0.095-1.4
X axis feed grade/range	Mm/r	32/0.042-0.7
Carriage rapid traverse speed	mm/min	3740
Cross slide rapid traverse speed	mm/min	1870
Traverse of Cross slide	mm	430
Max.traverse of turret	mm	250
Tailstock quill travel	mm	250
Tailstock quill Dia/taper		100mm /Morse NO.6

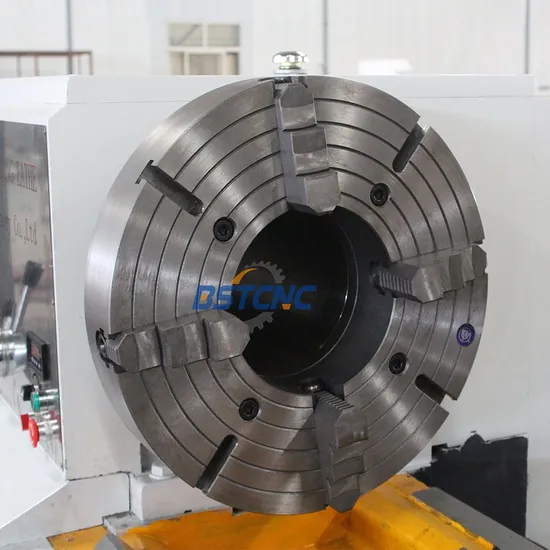

Chuck		φ630 3-jaw chuck φ780 4-jaw chuck
Overall dimensions(L*W*H)	mm	3850x1650x1600
Machine weight	T	6.5/7.2
