High Speed Milk Bottle Blow Moulding Machine for Hot Fill Bottles

Product Description

High Speed Milk Bottle Blow Moulding Machine for Hot Fill Bottles

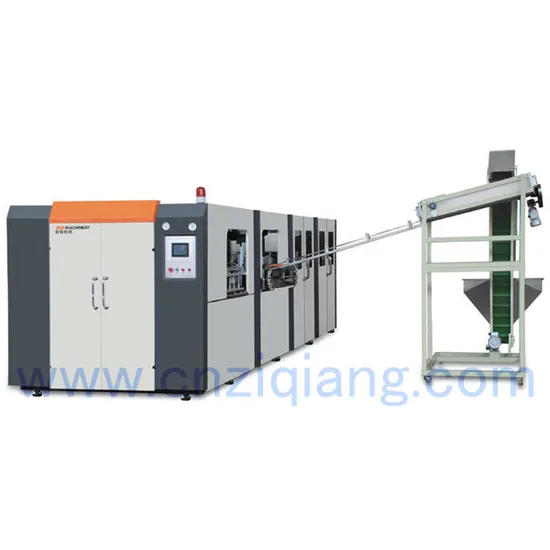

ZQ-B600-8 Full-automatic PET stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine. It has one to two cavities and the maximum capacity of the products is 0.6L. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET and PP etc.
High Speed (Output MAX): >11000 Bottles/Hour.
High Speed Milk Bottle Blow Moulding Machine for Hot Fill Bottles
Advantages:
1. Stable performance with advanced PLC.
2. Conveying preforms automatically with conveyor.
3. Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
4. High adjustability to enable the preheater to preheat preforms in shapes by adjusting the light tube and the length of the reflecting board in the preheating area, and eternal temperature in the preheater with an automatic thermostatic apparatus.
5. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
6. No contamination and low noise.
7. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
8. Strong clamping force with high pressure and double crank links to lock the mold.
9. Two ways of operating: Automatic and manual.
10. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
11. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
12. Contamination is avoided for the bottle body.
13. Ideal effect of the chilling with the chilling system.
14. Easy installation and starting
15. Low rejection rate: Less than 0.2 percent.
High Speed Milk Bottle Blow Moulding Machine for Hot Fill Bottles,machine information.

TYPE	ITEM	ZQ-B600-6	ZQ-B600-8
CONTAINER	Number of cavity	6 cavities	8 cavities
	Output	7000-8000 pcs/hr	9000-11000 pcs/hr
	Max.container volume	0.6L	0.6L
	Max.neck diameter	28-30mm	28-30mm
	Max.container diameter	60mm	60mm
	Max.container height	260mm	260mm
ELECTRICAL SYSTEM	Number of lamp	56pcs	48pcs
	Max.heating power	34kw	48kw
	Installation power	48kw	56kw
	Actual power consumption	24kw	45kw
AIR SYSTEM	Operatating pressure	7-8kg/cm²	7-8kg/cm²
	Low pressure consuming	1600Ltr/min	2000Ltr/min
	Blowing pressure	25-35kg/cm²	25-35kg/cm²
	High pressure consuming	2000-2200 Ltr/min	2300-2500 Ltr/min
CHILLER WATER	Operating pressure	5-6 kg/cm²	5-6 kg/cm²
	Temperatuer	10ºC	10°C
	Consuming	8000kcal/hr	8000kcal/hr
	Flow rater	88Ltr/min	200Ltr/min
MACHINE	Machine dimension	5.0x2.1x2.1(m)	6.9x2.2x2.1(m)
	Machine weight	5.0ton	6.5ton

Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.
