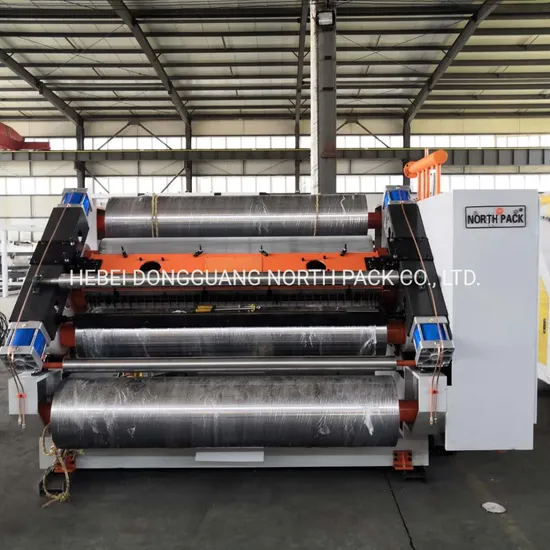

SF-320S/360S Corrugated Flute Make Careboard Sheet Fingerless Single Facer Machine

Product Description

SF-320S/360S Corrugated Flute Make Careboard Sheet Fingerless Model Single Facer Machine
Paper feeding: fingerless vacuum suction, with high pressure powerful draught fan. With silencer, air supply and electric control focus on the same operation counters, not less than 1.5m away from the main engine, operation side is totally closed and full guarding.
Engine base and wall plate: iron casting structure, thickness of the wall plate: 200mm, adopt independent speed changing box, and gimbal transmission.
Diameter of main corrugated roll: ¢320mm, and are made of 48CrMo alloy steel, after hardening and tempering, inner holes fine boring, NC grinding, mid frequency quenching, surface grinding, the rigidity of surface is higher than HRC58. Corrugated roll and pressure roll of pivotal section adopt heat resisting bearings which are manufactured by TWB
Pressure roll diameter: ¢320mm, surface are grinding and plate chrome, cylinder control up-down, raw material is 45# medium carbon steel, hardening and tempering
Glue wall plates adopt sliding structure, pneumatic control glue supply and glue back, diameter of the applicator glue roll : ¢242mm, surface are treated by polished and chrome plated.
Press roll adopt ¢160 cylinder
Pre-heater roll adopt seamless steel pipe which is produced by Tianjin Iron & steel group co,.ltd. Diameter ¢320mm, are all connected with metal soft pipe.

Working width	1600mm
Design speed	120m/min
Temperature scope	160-220 C
Pneumatic working pressure	0.4-0.9Mpa

Parameter of Main roll:

Diameter of corrugated roll	¢320mm
Diameter of pressure roller	¢320mm
Diameter of applicator glue roll	¢242mm
Diameter of preheater roll	¢320mm

Sample for reference:
This kind of flexo printing machine for the corrugated cardboard carton box make, there can choose single color,,double color, three color, four color and so on, According to different needs can be customized for customers.
Packaging & Shipping
After the machine is finished and running well, it will be coated with anti-rust oil, which makes the machine not easy to rust in the container, and winding film to prevent moisture. Each unit of the machine will be fixed in the container to ensure a stable and safe arrival at the destination.
About us:
NORTH PACK company is a comprehensive company integrating design, R & D, production, sales and service. Our mainly produces corrugated board production line, high-definition high-speed flexo printing machine, automatic carton gluing and stitching machine ,and other corrugated packaging machinery.
NORTH PACK company's products have passed the technical qualification certification, and are exported to more than 70 countries and regions such as Southeast Asia, Eastern Europe and South America. NORTH PACK will always be your trustworthy friend.
Exhibitions:
Our company has actively participated in various domestic and foreign exhibitions in Shanghai, Turkey, Egypt, India and other countries and regions to show our products and services.
Our Services
1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
PS: Normally our machines are uneasy to broken because of our professional machine making team and strict QC team, we will also send you our manual and video, what you need to do is just learn some basic thing such as machine maintenance.
FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.
3. Where is your factory located ? How can I visit there?
Our factory located in Dongguang County, Hebei Province, China., near to the
capital city Beijing and port Tianjin. You can fly to Beijing airport directly and we
will pick you up there.
4. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.
