Pizza Box Corrugated Paperboard Digital Printing Slotting Machine

Product Description

Product Description
The machine is specially designed for corrugated cardboard boxes. The printing area adopts a digital nozzle, which does not require plate making and can be easily printed through software; Water based ink, safe and environmentally friendly; The die-cutting part adopts servo blade arrangement, achieving one key change of length, width, and height, eliminating waste of cardboard. The operation is simple, easy to learn, and easy to master, making it very suitable for high value-added, small and medium-sized batch orders.
Designed according to Taiwan's philosophy, it is more reliable in terms of functionality and safety. No need for plate making, one finished product, zero waste. The main transmission gear is made of 20 CrMnTi high-quality alloy steel and subjected to high-frequency quenching treatment. It is processed by high-precision grinding with a Swiss imported gear machine, and the gears are precision machined High hardness, strong wear resistance, stable and reliable transmission, Rockwell hardness HRC58-62 degrees (same level accuracy as automotive transmissions) PLC touch screen control, including automatic counting, speed, quantity display, separation, and alarm light functions. High quality materials and accessories are selected, and all transmission rollers are made of high-quality steel. They have been calibrated for dynamic and static balance, and polished with hard chrome plating after grinding. The main transmission gear is made of 20 CrMnTi high-quality alloy steel and subjected to high-frequency quenching treatment. It is processed by high-precision grinding with a Swiss imported gear machine, and the gears are precision machined High hardness, strong wear resistance, stable and reliable transmission, Rockwell hardness HRC58-62 degrees (same level accuracy as automotive transmissions) The main transmission bearing adopts Harbin, Renben, AAA factory bearings. The main control electrical equipment adopts Taiwan's famous brand Delta as the main body, combined with accessories such as Siemens and Omron. Apply keyless connection rings to reduce center wear and maintain long-term printing accuracy.
Application
Product Parameters

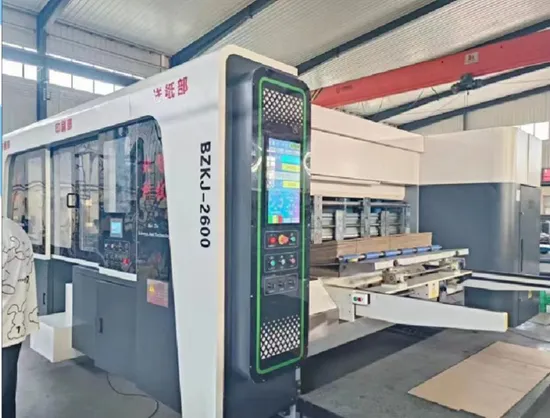

Model	BZKJ-2600
Nozzle Type	HP A4 II
Nozzle Height	2~3mm
Material Thickness	2~50mm
Max. Printing Width	2600mm
Max. Feeding Width	2800mm
Ink Type	CMYK water-friendly ink
Ink Color	Y M C K
Ink Supply	Automatic continuous
Printing Accuracy	≥300×600DPI
Normal Printing Speed	<=60m/min
Chromatic Accuracy	<=±0.5mm
Min. Slotting Distance	240×80×240×80mm
Slotting Accuracy	<=±1.5mm
Power Requirement	AC380V,50Hz,≈50KW
