Hard Alloy Tungsten Carbide Nozzle Coil Winding Machine Coil Winder Wire Guide Nozzle

Product Description

Hard Alloy Tungsten Carbide Nozzle Coil Winding Machine Coil Winder Wire Guide Nozzle
Product description Coil winding wire guide Nozzles(TungstenCarbide nozzle)also call wire guide tubes, wire guide eyelets, wire guide needles.

it is used on coil winding machine. It is made precisely of hard alloy and enjoys the hardness up to HRA90.

Two terminals and innerle are all receive mirror surface treatment to ensure enameled wire makes no scrape. High hardness, resistance to flexure, block and impact.
Product Features:
1. High Wear Resistance
This is assured by the choice of materials for wear elements possessing. Hardness Value: 1800 ~ 2200Vickers, or 3times that of case hardened steel. Body material is stainless steel for structural supports, not wear-bearing.
2. Scratch-Proofing
Eliminate wire insulation film damage, low friction resistance, stable wire tension. The wire-guiding surfaces are mirror finished by diamond lapping to a surface roughness of 2 -4 micro inches Ra or better, material permit.
3. Straightness and Stiffness
Straightness and Stiffness are defined by the wire exit being concentric and inflexible with respect to the nozzle locating? . In plain terms, the wire should exit from the nozzle concentric to the locating? To within 0.02 mm, with or without load. A geometric characteristic presentation is shown at upper left. Concentricity to within 0.01mm.
4. Precise Exit Radii
Because the coil winding nozzle's Exit Radii governs the angle of the wire exit from one coil to the next, it should be monitored to + / - 0.025 mm. This is done by digital measurement, shown at upper right.
Prodict Specification:
Measurements:
Customize available by requested, outside diameter is governed by nozzle wall thickness. See the measurements drawing to confirm your nozzles measurements according to your winding machine and coil products.
Processing limit: D1≥ 0.2mm, D1≥ 0.7mm

NO	Model	L	L1	D	D1	d	d1	H
1	W0220-0.8-0602	20	2	0.8	0.6	0.2	0.2
2	W0530-1.5-1007	30	7	1.5	1	0.5	0.5
3	W0530-2-1007	30	7	2	1	0.5	0.5
4	W0535-2-1210	35	10	2	1.2	0.5	0.5
5	W0435-2-1007	35	7	2	1	0.4	0.4
6	W0330-2-0808	30	8	2	0.8	0.3	0.3
8	W0326-2-1007	26	7	2	1	0.3	0.3
9	W0530-2-1010	30	10	2	1	0.5	0.5
11	W835-2.5-2011	35	11	2.5	2	0.8	0.8
12	W0330-2-1006	30	6	2	1	0.3	0.3
13	W0635-2-1215	35	15	2	1.2	0.6	0.6
15	W0530-3-1010	30	10	3	1	0.5	0.5
16	W0630-3-1008	30	8	3	1	0.6	0.6
17	W03303-0807	30	7	3	0.8	0.3	0.3
19	W0630-3-1309	30	9	3	1.3	0.6	0.6
21	W0614-3-1509p	14	9	3	1.5	0.6	0.6	5
22	W1014-3-1509p	14	9	3	1.5	1	1	5
23	W0414-3-1009p	14	9	3	1	0.4	0.4	5
24	W1030-3	30		3		1	1
25	W0326-3-0808	26	8	3	0.8	0.3	0.3
29	W0626-3-1208	26	8	3	1.2	0.6	0.6
30	W1030-3-2014	30	14	3	2	12	12
31	W1230-3-2514	30	14	3	2.5	1.2	1.2
33	W0330-3-0502	30	2	3	0.5	0.3	0.3
34	W0626-3-1208	26	8	3	1.2	0.6	0.6
36	W0330-3-0504	30	4	3	0.5	0.3	0.3
37	W0823-3	25		3		0.8	0.8
38	W0435-1211	35	11	3	1.2	0.4	0.4
39	W03535-3-0811	35	11	3	0.8	0.35	0.35
41	W1025-3-1608	25	8	3	1.6	1	1
42	W0845-3-2017	45	17	3	2	0.8	0.8
43	W1535-3	35		3		1.5	1.5
44	W1036-3-2016	36	16	3	2	1	1
45	W0630-3-1212	30	12	3	1.2	0.6	0.6
46	W0830-4-2015	30	15	4	2	0.8	0.8
47	W1243-4-2515p	43	15	4	2.5	1.2	1.2	20
48	W0843-4-2015p	32	15	4	2	0.8	0.8	20
49	W1232-4.5	43		4.5		1.2	1.2
50	W1543-4-2512p	43	12	4	2.5	1.5	1.5	20
51	W0843-3.9-2019p	20	19	3.9	2	0.8	0.8	19
52	W2020-5	20		5		2	2

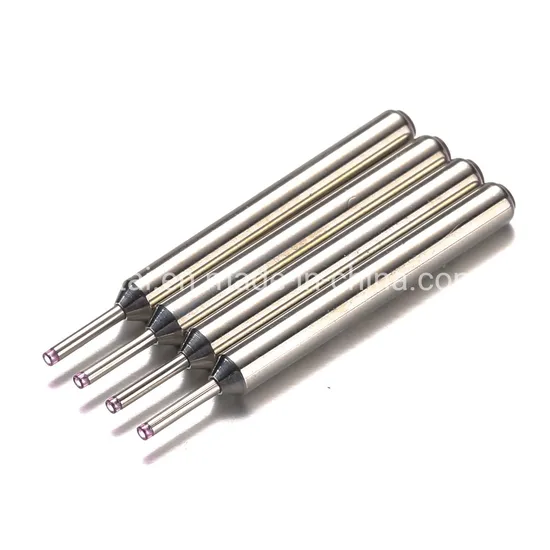

Display of Product
Information of our company
HARTAI Technology Industry Co., Ltd , found in 2001, is located in the beautiful city of China's manufacturing industry Dongguan City. It is committed to nozzle, ruby products, tungsten carbide products, ceramic products, plastic crochet hook and precision machinery manufacturing .Our main products are nozzle, ceramic roller, jump wire preventer, various sizes of ceramic eyes, combination wire roller, ceramic wheel and non-standard parts, all kinds of tension and so on.

FAQ
1. How can I get a quotation?
You can find our contact information below this page and some detail information will be very helpful to get an exact quotation. We will give quotation within 24hours, if urgent, please tell us and we will regard your inquiry priority.
2. How can I get a sample?

As the price confirmed, you can require for samples.
3. Can you do the design for us?

Yes, we have our factory and we can make OEM order.


4. How long can I expect to get the sample?

Normally it takes 7-15days to produce the sample.

5. What about the lead time for mass production?

It depends on what kind of products you ordered. Generally, 15-25days for mass order.
We sincerely hope to get your inquiry of this voice coil actuator! If any questions, please feel free to contact us. Thanks for visiting our website!O(∩_∩)O
