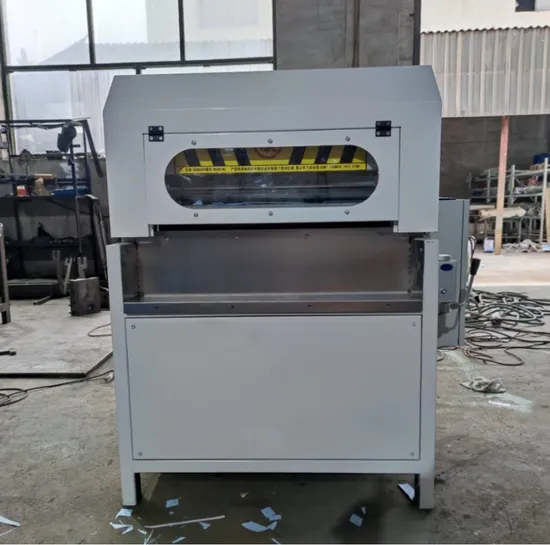

Automatic Rubber Strip Cutters Slitter Rubber Cutting Slitting Machine

Product Description

Product Description 1.Our Horizontal Rubber Strip Cutting Machine (Rubber Strip Cutter ) is optimized in structure and easy to operate.With glass plates positioning in front make the operation more secure. Feeding platform is made of pure mirror stainless steel, truly beautiful appearance and guarantees safe production, high automation, easy operation and low noise and has a good safety device, automatic lift feed roller device is also a friendly design.
2.Feed roller of Rubber Strip Cutting Machine (Rubber Strip Cutter) adopts high-precision dual-clutch, free to adjust the width of strip material from 1mm to 50 mm, at high precision cutting.
3.The blade of the machine is alloy inlaid high speed wear-resistant material, sharp and long life service.
4.More humanity NC electrical control system. (You can control the start switch(button) only cut one time ,after confirming the weight in need already, then converted to a continuous strip cut) and significantly increased the electrical life ,a simple operation, more convenient to use.
5.CNC type Rubber Strip Cutting Machine (CNC Rubber Strip Cutter) is available for options:rubber feeding is controlled by PLC and stepper motor,with mechanical-spring material press roller to make the rubber sheet feeding more accurate and smooth,improving the cut precision for the rubber strip.Easy operation, operator just input the desired width in the computer,the right width strip will be cut continuously.During cutting process, you can freely adjust the width of cut material as per your actual need.This CNC type Rubber Strip Cutting Machine,combining advanced CNC automatic mechanical and electric integration system,it overcome the problem for the normal strip cutting machine whose transmission parts could be wore after long time use.
Technical Specification:

Model	XQ-450	XQ-620	XQ-820	XQ-1000	XQ-1220
Max. feeding rubber width(mm)	450	620	820	1000	1220
Max. cutting thickness (mm)	20	20	20	20	20
Max. Cut efficiency (times/min)	86	86	80	80	65
Cut precision	±0.1mm	±0.1mm	±0.1mm	±0.1mm	±0.1mm
Motor power(KW)	1.5	1.5	2.5/3	2.5/3	4/5.5
Dimension (LxWxH:cm)	105x70x110	115x85x110	140x96x120	165x100x123	180x100x142
Weight(Kg)	500	750	840	1050	1200

Notes: the form only list out the normal standard model, more horizontal rubber strip cutting machine with special requirements can be customized to order. Packaging & Shipping The machine is packaged well by the stretch film first,and fixed professionally by the strong wooden case,ensuring the machine non damage during the long distance of land and sea transportation, and reach the clients factories safely.
After Sales Service We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
Our business principle is that :
Move ahead along with the spirit of "Responsibility& Sincerity for Customers" and "Cooperative&Enterprising Team" to "Mold a Better Future Together ".
Company Information
All of our manufacturing partners have more than 10 years of experiences in the field of rubber&plastic
machineries,dozens of experienced engineers and around 200 skilled workers, as well as a considerable number
of precise,digital control, advanced processing machine tools. All ensure every part and details of our machines
with good performance and qualified running test before delivery to our customers on time.
