PP Baler Twine Spool Winder Machine

Product Description

Inflow Twister

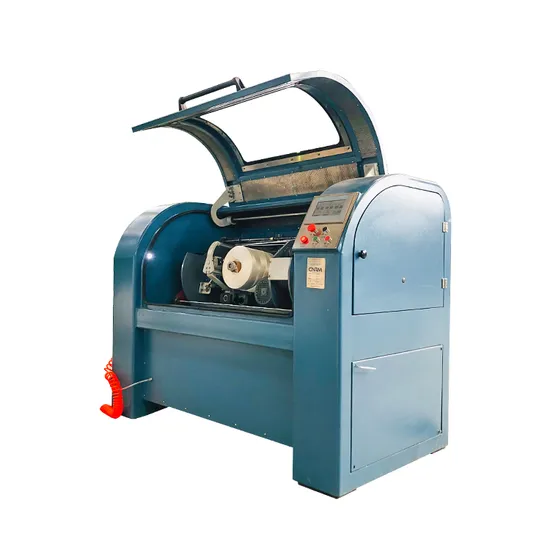

CNRM HDSW-01 Inflow Twister
Inflow twister is a kind of newly-designed machine with high speed, low noise, and spool tube or tubeless. Twisting and winding can be finished at the same time. The machine is suitable for different material of fiber, such as plastic monofilament yarn, raffia yarn, flat yarn, split film yarn and etc. It is equipped with counter, frequency converter and digital display.
Performance & Advantage:
Special tension design and adjust part, for different type material feeding.
Adjustable part for changing the gaps between twine on spool, to suit different twine size need to achieve good precision winding.
Different spool type, tubeless, carton tube type, plastic tube type for you choosing.
High speed Japan NSK bearing, Timing belt for transmission, Seimens ac invertor and PLC for easy adjusting.
Twist change easy, changed by plc, no need change gear.
Technical data

Item	Specification
Model	HDSW-01
Maximum output power of the motor(KW)	13
Machine dimensions(L*W*H,mm)	2350*1050*1450
Applicable yarn range(Dia)	1-5mm
Twist rang(TPM)	20-135
Twist direction	S or Z
Twisting speed(RPM)	3500
Machine weight(KG)	1330
Upper cover open total height(mm)	2100
Production capacity	150m/min-200m/min
Transmission	Timing belt

Company info: Taian Haidai Rope Machinery Science Technology Co., Ltd. has achieved industrialization and large-scale production from the research and innovation with 10 years' experience in the rope and net machinery field. Our rope and net machinery mainly includes: extruder, ring twister, twisted rope making machine, braided rope machine, ball winder, spool winder, coiler machine, hank winding machine and package machine and more than 10 kinds series production; Our product performance has reached international and domestic advanced technology level with unique design concept, advanced manufacturing technology, perfect quality guarantee.
