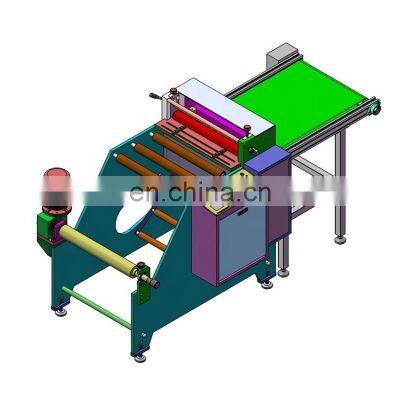

Plastic PE PP PET PVC OPP Film Paper Roll to Sheet Cutting Machine with Conveyor Belt and Static Eliminator

Product Description

Product Description
Plastic PE PP PET PVC OPP Film Paper Roll to Sheet Cutting Machine with Conveyor Belt and Static Eliminator Functional Characteristics:1.DELTA servo motor pull the material,high precision.2.MITSUBISHI PLC with touch screen to set any length,quantity,speed. 3.3 inch inflatable shaft for unwinding.4.Pulling roller coat thick PU rubber and won't scratch the material.5.Polished and anodized aluminum guiding roller,very smooth and never harm the material.6.Long service life of the SKD11 cutting blade and cut the sheet edge smoothly. 7.Electrical static eliminator to remove static electricity.8.With 700mm length conveyor belt.9.Other standard machine:360mm,600mm,800mm,1000mm,1400mm. Purpose:This machine can cut flexible materials from roll to sheet,such as plastic,paper,label,film,foam,aluminum foil etc. Technical Data: ModelDP-500Max. workable width ( mm )500Max. unwind roll diameter(mm )600Max. unwind roll weight(kg)40Unwind shaft diameter3 inch or 6 inchspeed ( times/minute )70 (Cut 320mm)Total Power1.5kwPLCMITSUBISHIServo Motor Servo Driver DELTA Precision ( mm )±0.10 Voltage380V 50HZ Electrical listing:Touch ScreenKUNLUNTONGTAIMade in ChinaProgrammable ControllerMITSUBISHIMade in JapanServo DriverDeltaMade in TaiwanServo MotorDeltaMade in TaiwanMotor of cutting knifeSHENLIMade in ChinaAC ContactorCHNTMade in ChinaSolid State Relay 20AGOLD ELECTRICAL CONTROL Made in China
