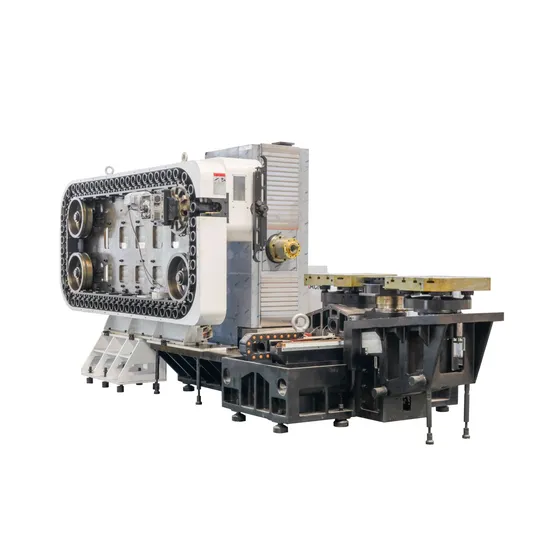

High-Precision CNC Lathe and Milling Machine for Metal Fabrication

Product Description

Company Profile
Suji Intelligent Equipment Jiangsu Co., Ltd
Suji Intelligent Equipment Jiangsu Co., Ltd was established in 2018 and is located in Jiangsu Shuyang National Economic Development Zone. We specialize in CNC machine tools, including vertical machining centers, horizontal machining centers, gantry machining centers, and flat rail CNC lathes. Our products are known for their high speed, rigidity, performance, and efficiency, making them the top choice for industries such as communication, consumer electronics, medical, LED, automotive, aerospace, and more.
With a professional technical team and years of experience in CNC machine tool manufacturing, we provide cost-effective machine tools that offer great value for your investment. Our company is ISO9001 certified, ensuring high-quality products and services.
At Suji Intelligent Equipment Jiangsu Co., Ltd, we believe in the importance of quality and service. Our business philosophy is to create value for customers, opportunities for employees, and benefits for society. We are committed to providing professional and sincere service, including high-quality pre-sale, sale, and after-sales support, as well as technical assistance. We strive to meet the needs of our customers and partners to create a better future together.
Product Description
Detailed Photos
Quality Control
Product Parameters

Item/Model	Unit	H500	H630	H800
WorkBench
Workbench (L× W)	mm	600*500	630*630	800*800
Max load	kg	800	1200	1500
Workbench indexing	Degree	1	1	1
Number of workbenches	piece	1	1	1
Max Size workpiece	mm	Ø800×650	Ø1000×900	Ø1100x850
Travel
X-axis	mm	800	1050	1100
Y-axis	mm	600	800	850
Z-axis	mm	785	900	900
Spindle center to table face	mm	50-650	80-880	100-950
Spindle nose to table center	mm	120-908	120-1020	180-1080
Spindle
Spindle hole taper		BT40/Φ150	BT50/Φ190	BT50/Φ190
Spindle speed range	r/min	50-8000	50-1000 (1:3.5 deceleration), 1000-5000 (1:1.28 deceleration)	0-6000
Spindle output torque Max	Nm	116	408	236
Speed
X/Y/Z axis fast movement	m/min	24	24	24
4-axis rapid movement	r/min	10	10	10
feed rate	mm/min	10000	10000	10000
Outline
Dimensions	mm	3000*4200*3500	3000*4200*3500	4500*3500*3500
Weight	kg	8000	9500	11000
Protective cover		Fully enclosed	Fully enclosed	Fully enclosed
Accuracy
X/Y/Z positioning accuracy	mm	±0.005/500	±0.005/500	±0.005/300
X/Y/Z repeated positioning accuracy	mm	±0.003/500	±0.003/500	±0.003/300
B-axis positioning accuracy	sec	±6	±6	12
B-axis repeated positioning accuracy	sec	±2	±2	6
Other
Guide rail type X/Y/Z		X/Y/Z heavy-duty 45 roller track	X/Y heavy-duty 45 roller line rail/Z heavy-duty 55 roller guide rail	X/Y/Z heavy-duty 55 roller track
Chip removal method		Double screw and chain chip removal	Double screw and chain chip removal	Double screw and chain chip removal
Cleaning method		Manual air gun	Manual air gun	Manual air gun
Spindle protection/cooling method		Air curtain/annular water spray	Air curtain/annular water spray	Air curtain/annular water spray
Accuracy level of linear roller guide rail		P4	P4	P4
Accuracy level of ball screw		C3	C3	C3

Brands of Main Parts

Part Name	Origin	Manufacturer	Model
CNC system	FANUC, Japan	FANUC	0i-MF PLUS(Type 3)
Servo feed motor	FANUC, Japan	FANUC
Servo spindle motor	FANUC, Japan	FANUC
Servo integrated driver	FANUC, Japan	FANUC
Spindle group	Taiwan	Royal/Kenturn	BT40-φ150
Roller screw	Taiwan	HIWIN/PMI	FDC4012
Linear guide rail	Taiwan	HIWIN/PMI	45#/45#/45#
Spindle bearing	China mainland	NSK
Unclamping Cylinder	Taiwan	Haocheng	4.5T
Disk type tool magazine	Taiwan	Ammach/Tokuda/Okada	BT40-24T
Locking nut	Taiwan	Svit	M30×1.5P/ M35×1.5P
coupling	China mainland	Sanmu
heat exchanger	China mainland	Miki Pully	EA-02W/220V
Screw bearing	China mainland	NSK	30TAB062
Oiling machine	China mainland	Ishan
Main electrical components	France	Scchneider
Pneumatic components	Taiwan	TWSNS
Chain chip conveyor	China mainland	SUJI
