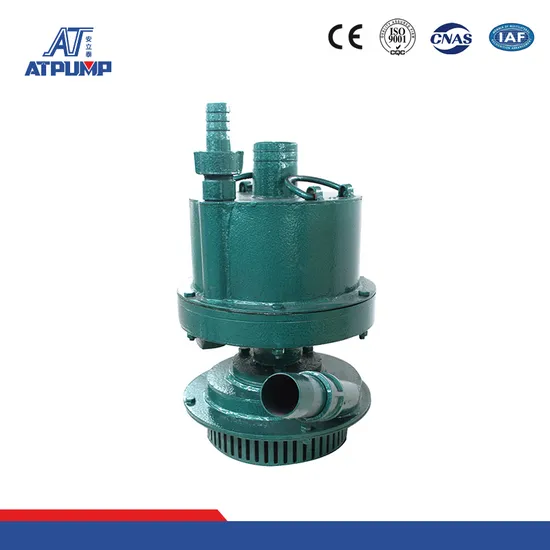

ATPUMP Mining Pneumatic Submersible Pump

FQW Series mining pneumatic submersible consists of three parts: pump body, air motor and flow parts:
1.Pump body: it consists of upper and lower two cavities, the seal ring separates the gas and water in the middle. The seal ring uses a spring seal, and it uses the steam and water pressure to drive high pressure steam and water respectively into the upper and lower two seals,making them expand. Thus, the seal effect is enhanced.
2.Air motor:it consists of rotor, turbine, upper and lower cylinders and bearings, etc. It uses compressed air as the driving force to push the turbine in order to rotate the rotor with high speed.
3. Flow arts: it consists of water turbine, pump cover, suction inlet and pump seat, etc, The water turbine is installed on the rotor shaft of the shell in the lower shell cavity, the compressed air enter through the inlet, the rotation of the rotor drives the water turbine through which water is pumped into vortex street of the shell under the centrifugal force and is discharged via pipe.
FOW series mining oneumatic submersible pump (original BOF and FWOB series) is a new product developed independenty by our company, product executive standard: Q/NAT001-2016. This product uses coaxial connection between the rotor and the body, vertical struclure and downward position, it enjoys the features of compact struclure, portablity, easy assembly & disassembly and maintenance, its vortex street uses energy-saving, high-eficient hydrauic model, and its impeller is also specially designed. This product possesses the advantages of strong sewage discharge capacity, high flow rate and high head, etc. This model can be widely applied to the any underground mine with gas or coal dust (dangerous explosive working conditions) for pumping water containing powdered coal and sediment particles,etc. lt is safe and reliable, and it also can effectively improve the air quality at site.Product Parameters

Model	Rated Flow	Rated Head	Working Pressure	Air consumption	Weight	Overall dimension
	(m3/h )	(m )	(MPa)	(m3/min)	(kg)	(mm)
FQW15-16	15	16	0.5	3.5~4.5	18	302*233*347
FQW10-19	10	19	0.5	3.5~4.5	17	302*233*347
FQW 8-20	8	20	0.5	3.5~4.5	17	302*233*347
FQW25-10	25	10	0.5	3.5~4.5	18	302*233*347
FQW20-25/W	20	25	0.5	4.5~5	30	347*274*462
FQW70-30/W	70	30	0.5	4.5~5	32	347*274*462
FQW20-40/W	20	40	0.5	4.5~5	34	329*274*495
FQW40-20/W	40	20	0.5	4.5~5	31	347*274*462
FQW25-50/W	25	50	0.5	4.5~5	35	329*274*495
FQW30-18/W	30	18	0.5	4.5~5	35	329*274*495
FQW50-25/W	50	25	0.5	4.5~5	32	347*274*462
FQW48-12/W	48	12	0.5	4.5~5	31	347*274*462

FQW series mining pneumatic submersible pump is safe and reliable, also can effectively improve the air quality at site, it is widely applied to any underground mine with gas or coal dust, dangerous explosive working conditions.

FQW Type Features:

FQW series mining pneumatic submersible pump uses compressed air as the driving force and adopts a centrifugal pump structure. It has the advantages of small size, light weight, simple structure and easy installation and maintenance. It is safe and reliable to be used in mines containing gas and coal dust, which is one of the advanced pneumatic drainage equipments.

FQW/W Type Features:

FQW/W series mining pneumatic pump is a breakthrough in terms of design concept, it adopts pneumatic turbine to use compressed air as the driving force, and overcomes those drawbacks like loud noise, high air consumption and low efficiency that the conventional pneumatic pump suffers, it is widely used for sewage drainage in mines, its features:
1. Low noise, within 40db;
2. Low air consumption, high efficiency;
3. Small size, light weight, compact structure and portability;
4. Long service life, wear-resistant parts, easy maintenance.
