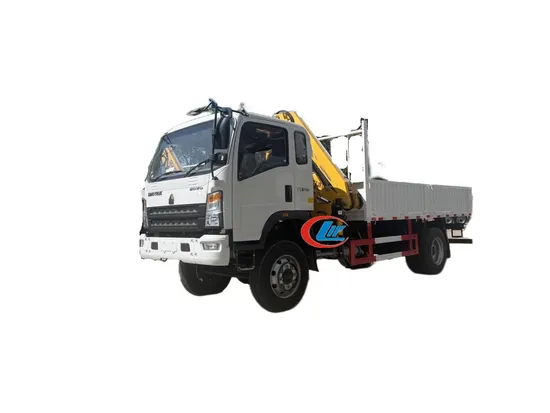

Sinotruk HOWO 4X4 off-Road 3t 3ton 3.2t Folding Crane Truck

Product Description

SINOTRUK HOWO 4x4 Off-road 3.2T Folding Crane Truck
I. SINOTRUK HOWO 4x4 Off-road 3T 3Ton 3.2T Folding Crane Truck
Truck crane ,also called boom truck crane,mobile truck crane , truck mounted crane , hydraulic folding truck crane,telescopic
straight boom crane,truck with crane , crane lorry,hydraulic arm crane for trucks,pickup truck mounted crane,light truck with crane,f
olding arm hydraulic lift platform,hydraulic crane telescopic boom,mobile crane price ,self loader truck with boom crane, new forland
lorry truck mounted crane,telescopic boom truck mounted crane,flatbed knuckle boom truck crane,6 wheelers truck with crane boom
truck cranes sale etc.
A crane mounted on a truck carrier provides the mobility for this type of crane. This crane has two parts: the carrier,often referred to
as the Lower, and the lifting component which includes the boom, referred to as the Upper. These are mated together through a turntable,
allowing the upper to swing from side to side. These modern hydraulic truck cranes are usually single engine machines, with the same
engine powering the undercarriage and the crane. The upper is usually powered via hydraulics run through the turntable from the pump
mounted on the lower. In older model designs of hydraulic truck cranes, there were two engines. One in the lower pulled the crane down the road and ran a hydraulic pump for the outriggers and jacks. The one in the upper ran the upper through a hydraulic pump of its own.
Many older operators favor the two-engine system due to leaking seals in the turntable of aging newer design cranes.
II. Specs of SINOTRUK HOWO 4x4 Off-road 3T 3Ton 3.2T Folding Crane Truck

Chassis		SINOTRUK
Cab		HOWO, single row cabin, allowable 2 passengers, with A/C
Wheelbase		4200mm
Wheels & tire		9.00R20
Tire number		6+1
RHD or LHD		optional
Overall Dimensions		5990×2300×3050mm
Engine	Horsepower	YC4D130 33
	Type	4 cylinders, in-line,4-stroke,water-cooled,turbo inter-cooling, diesel engine
Transmission	FAST, 8F+2R
Front Axle	2.5T
Rear Axle	9T
Color and LOGO	customized
crane	Max loading		3.2t
	Max lifting height		9m
	Max working radius		7.3m
	Type		Folding Arm
	Arms number		3 sections
	Turning angle		360 degree
Standard configuration	truck crane equipped between the cabin and van body, mechanical leg
Optional configuration	Any other famous brand crane, it can also be equipped in the rear of the truck, hydraulic legs, aerial working seat is optional.

III. ABOUT US CLW SPECIAL AUTOMOBILE CO.,LTD is an authorized special truck manufacturer which has many years in design ,
product ,sales and service in special trucks like as boom truck , fire truck, manlift truck, tank truck , garbage truck, tipper truck ,wrecker truck , refrigerated truck and etc.
Main info as below:
Established from 2004. 12 independents workshops. 1000 sets of equipment, 25 assemble lines. 300 senior engineers and technicians. About 8000 workers. 800kinds of LPG, trucks and semi-trailers. 20 years wholesale experience Turnover 250 million and Export 20million annually Turnover 2 billion trucks and semi-trailers annually. LPG/Truck Sold to 90 countries Cooperates with DONGFENG,SINOTRUK,I-SUZU,FOTON,FAW,BEIBEN etc.
