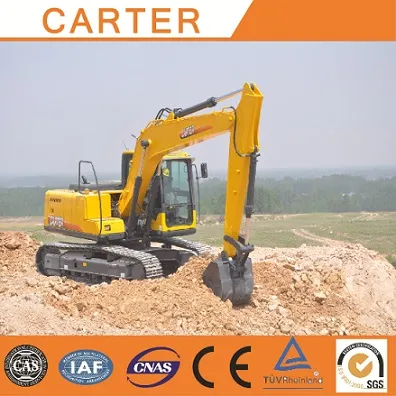

Powerful CT160-8c Hydraulic Excavator for Tough Job Sites
| US$51,000.00-53,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CT160-8C
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.5~1.0m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
7723*2495*2670(L*W*H)
Operating Weight 15, 200 Kg
Ground Pressure 42 Kpa
Bucket Capacity 0.70m3(SAE)
Arm Length 2.520 mm
Boom Length 4.600 mm
Arm Digging Force 65kn
Bucket Digging Force 99 Kn
Gradeability 35° (70%)
Swing Speed 12 Rpm
Max Digging Depth 5.569 mm
Max Dumping Height 6.200 mm
Transport Package
Nude Packing
Specification
CE, ISO9001
Trademark
CARTER
Origin
Shandong, China
HS Code
8429521200
Production Capacity
100 PCS/Year
Product Description
CT160-8C Crawler Excavator:1. Isuzu engine, In conformity with the EU II emission control regulations
2. Digital monitoring and control system GPS satellite position(optional)and remote diagnose system(optional)
3. Rubber pedrail(optional, or steel pedrail), no damage to the ground of road full opened engine hood and easy up-forward-lifted cab Cold&warm air conditioner(optional)
4. Guarantee for 3 yrs under normal use and maintenance
| Engine | Travel System | ||||||||||||||||
| Model | ISUZU 4JJ1X | Travel motors | KYB, Japan; | ||||||||||||||
| Type | Direct injection, With intercoolerfour-stroke; water cooled, turbocharged; With intercooler | Support roller quantities | 2×7 | ||||||||||||||
| Carrier roller quantities | 2×2 | ||||||||||||||||
| No. of cylinder | 4 | Travel shoes | 2X41 | ||||||||||||||
| Bore and stroke | 95.4X104.9(mm) | Travel speed | 2.7/5.0(km/h) | ||||||||||||||
| Displacement | 2.999L | Drawbar pulling force | 126kN | ||||||||||||||
| Power output | 84kw/2200rpm | Gradeability | 70%(350) | ||||||||||||||
| Max. torque | 375N.m/1800rpm | Ground clearance | 440mm | ||||||||||||||
| Hydraulic System | Cab & Electrical System | ||||||||||||||||
| Pump | KPM, Japan | Cab | Cab installed with silicon oil rubber, adjustable luxurious seat, cold and warm air-conditioning system plus flexible pilot control system | ||||||||||||||
| Type | axial piston pump | ||||||||||||||||
| Max. discharge flow | 2X138(L/min) | ||||||||||||||||
| Max. discharge pressure | |||||||||||||||||
| Boom, arm and bucket | 31.4/34.3 MPa | Voltage | 24V | ||||||||||||||
| Travel circuit | 27 MPa | Batteries | 2X24V | ||||||||||||||
| Swing circuit | 27 MPa | Battery capacity | 160Ah | ||||||||||||||
| Control circuit | 3.9 MPa | Boom, Arm & Bucket | |||||||||||||||
| Pilot control pump | Gear type | Boom cylinder | Ф105xФ70xS941-L1448 | ||||||||||||||
| Main control valves | KYB, Japan | Arm cylinder | Ф115xФ80xS1135-L1650 | ||||||||||||||
| Oil cooler | Air cooled type | Bucket cylinder | Ф100xФ70xS875- L1350 | ||||||||||||||
| Swing System | Refilling Capacity & lubrication | ||||||||||||||||
| Swing motor | KPM Japan | Fuel tank | 240 L | ||||||||||||||
| Swing motor type | Axial-piston motor | Cooling system | 22 L | ||||||||||||||
| Brake | Hydraulic oil released | Engine oil | 13 L | ||||||||||||||
| Parking brake | Hydraulic disc brake | Hydraulic oil tank | 120 L Tank Oil Level | ||||||||||||||
| Swing speed | 12.4 r/min | 185 L Hydraulic System | |||||||||||||||
| Bucket | |||||||||||||||||
| Type | Backhoe bucket | ||||||||||||||||
| Bucket capacity | 0.7m3 (SAE) | Bucket capacity scope | 0.55-0.60 m3 | ||||||||||||||
| Number of bucket teeth | 5 | Bucket width | 1020 mm | ||||||||||||||
| Working Ranges | |||||||||||||||||
| Boom length | 4600mm | ||||||||||||||||
| A | Max. digging depth | 5569mm | B | Max. dumping height | 6200mm | ||||||||||||
| C | Max. digging height | 8659mm | D | Max. vertical digging depth | 4500mm | ||||||||||||
| F | Max. digging distance | 8387mm | G | Max. digging reach at ground level | 8261mm | ||||||||||||
| H | Min swing radius of work equipment | 2509mm | |||||||||||||||
| Arm length | 2520mm | ||||||||||||||||
| A | Bucket digging force | 99.7 KN | B | Arm digging force | 73.8 KN | ||||||||||||
| Overall Dimensions | |||||||||||||||||
| A | Overall length | 7723mm | I | Track grounding length | 2930mm | ||||||||||||
| B | Ground contact length | 4073mm | J | Track length | 3630mm | ||||||||||||
| C | Overall height(to top of boom) | 2740mm | K | Track gauge | 1995mm | ||||||||||||
| D | Overall width | 2495mm | L | Track width | 2495mm | ||||||||||||
| E | Overall height(to top of cab) | 2767mm | M | Track Shoe width | 500mm | ||||||||||||
| F | Counter weight ground clearance | 932mm | O | Bonnet height | 1858mm | ||||||||||||
| G | Min Ground clearance | 440mm | P | Revolving frame width | 2490mm | ||||||||||||
| H | Tail swing radius | 2308mm | Q | Distance from swing center to tail | 2205mm | ||||||||||||
| Operating Weight and Ground Pressure | |||||||||||||||||
| Operating weight | 15200 Kg | Ground pressure | 42 KPa | ||||||||||||||
