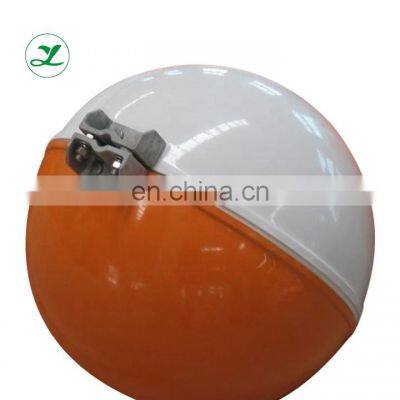

Composite Warning Spheres aerial warning ball warning marker aircraft
Products description
Warning globe is attached to the lines for warning.Warning area is between 25-40 meters.Warning globe is made of aluminum and is very light.Construction of the connectors provides easiness and safety to attach warning globe to the various lines.Aircraft Warning Sphere is Designed to use for high-rise transmission lines, eg. 110KV, 220KV, 500KV, transmission cables,
river-crossing transmission lines to provide the warning marks.

Opearation
Visible Distance	1200mm
Voltage Range	35KV-1000KV
Conductor Diameter	6.5-55mm
Mechanical Structure
Color	Orange,Red,White,Orange/White,Red/White
Sphere body	FRP(Fiberglass Reinforced Polyester)
Cable Clamp	Aluminum alloy
Bolts/Nuts/Washers	Stainless steel 304
Diameter	•300mm/400mm/600MM/800mm/1000mm/1200MM•340(Rotational)
Weight	6.9KG/9.0KG
Thickness	3mm
Drain Holes	Yes
Optional	•Prefromed Armor Rods •Reflective Strip
Warranty	2Years

Specification
1.At the mount point on the alerting ball, wrap cable protecting bars round cables for 1000-1200mm long, with two ends of
protecting bars extending 200-300mm beyond the surface of the ball.
2.Fix the plastic wires which are mounted on lower hemisphere of the ball onto the cables and twist them.
3.Combine the lower hemisphere with the upper hemisphere according to module codes. Turn the hemisphere during the assembly and
make sure two hemispheres are joined into position .
4.Insert stainless steel bolt(M12*35) and then put flat washers and spring washers around each bolt. Tighten each nut at last.
Product Specialties
Installation process
1. Aviation obstruction ball(Aviation warning ball) installed in the wire rope with thunder protected ground wire of the overhead tower, each obstacle ball's distance can't exceed 30 meters, and equal Interval setting.
2. Aviation obstruction ball(Aviation warning ball) have red(orange) or white, should be interphase setting.
3. Involved multiterm lines, cables situation, the height of the balls should not be lower than the height of the highest marked overhead line.
