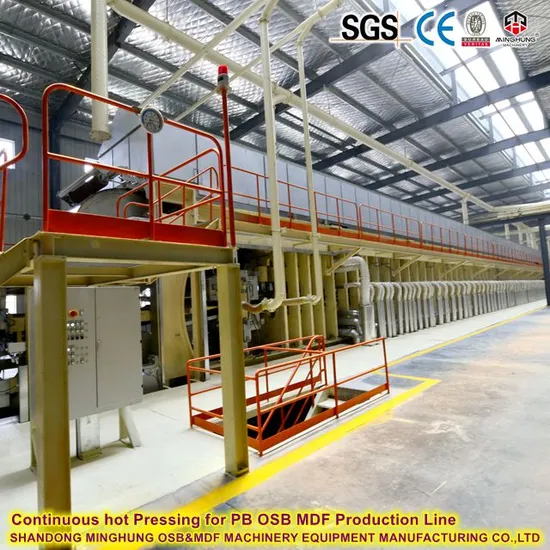

Chipboard/Particle Board/MDF/OSB Making Machine with Continuous Press for 100, 000-500, 000m3/Year

Product Description

Chipboard/Particle Board/MDF/OSB Making Machine with Continuous Press for 100, 000-500, 000m3/Year
How to make Big production capacity Chipboard /MDF/OSB?
you need The Continuous press by replace the Multi-opening Hot press. Why?
Particleboard continuous press is the core equipment for the production of particleboard, with the following significant features:
1. Continuous production
- High efficiency: can run uninterrupted, suitable for large-scale production, significantly improve efficiency.
- Stability: Continuous production process, stable plate quality, reduce batch differences.
2. High degree of automation
- Automation control: PLC and computer control system are used to achieve automated operation and reduce manual intervention.
- Accurate adjustment: temperature, pressure, speed and other parameters can be accurately controlled to ensure product quality.
3. Uniform hot pressing effect
- Multi-zone heating: The press is divided into multiple heating zones, and the temperature can be controlled in zones to ensure uniform heating of the plate.
- Uniform pressure: Uniform pressure through hydraulic or mechanical systems to ensure consistent plate density.
4. Energy saving and environmental protection
- Heat recovery: Some equipment is equipped with heat recovery system to reduce energy consumption.
- Environmental design: Low emission technology is used to reduce pollution in the production process.
5. Flexible production capacity
- Diversified production: Different thickness, density and specifications of particleboard can be produced to meet a variety of needs.
- Quick change: The equipment design is easy to adjust quickly to meet different production requirements.
6. High product quality
- Uniform density: Continuous press to ensure uniform plate density, stable physical properties.
- Flat surface: The high precision control of the press makes the surface of the plate flat and reduces subsequent processing.
7. Easy to maintain
- Modular design: The equipment adopts modular design, which is easy to maintain and replace parts.
- Self-diagnosis function: Some devices are equipped with self-diagnosis system to quickly locate faults and reduce downtime.
8. High security
- Multiple safety protection: equipped with a variety of safety devices, such as emergency shutdown, overload protection, etc., to ensure safe operation.
- User-friendly: The operation interface is intuitive, reducing the difficulty and risk of operation.
9. Adaptability
- A variety of raw materials: can handle different types and sizes of shavings raw materials, strong adaptability.
- A variety of adhesives: suitable for different adhesives to meet diversified production needs.
PB Making Process
Do you know how to make Particle board or MDF or OSB?
I will simple introduce the production step for you
Section1: Raw Materials & Screening
The first step in mdf particle board manufacturing is the preparation of raw materials. Wood logs or resides are collected and debarked to remove the outer layer. Then wood particles are sorted based on their size.
Section2: Drying & Glue Mixing
The original strands with high moisture is not suitable for next production step. Drying is ususally convection drying in a drum dryer: the particles slowly pass through an elongated, rotating drum that is inclined slightly downwards. Then they are mixed with a resin binder in a blending machine.
Step3: Forming & Pre Press & Hot Press
The blended mixture of wood particles and resin is spreaded evenly on a continuous conveyor belt or forming line. The thickness and density of particle board is controlled by adjusting the amount of mixture applied to the conveyor belt. Then the formed mat of wood particles and resin is tranferred to the pre press. In order to ensure a high panel qulity, pre-pressing is usually carried out before the hot pressing.
Step4: Trimming & Sanding
After the pressing process, the particle boards are trimmed to the desired dimensions using edge trimming saw. Then the finished boards are sanded to achieve a smooth surface and remove any imperfections.

Hot press
Pressure	1200 ton
Hot plate size	2650*1680*120mm
Layers	22
Heating medium	Oil
Heating temperature	≤180ºC
Closing time	10s

Company Profile
We China manufacturer and supplier of Particle board making machine+ MDF board making machine +OSB board making machine. if you want to produce these board, we can offer you the full necessary production line.
With many years production experience, and adhere to continuous innovation and improvement, with specialized R&D center, obtained a number of research and development patents, with experienced technians and engineers, and professional sales team and after-sales team, We have beome one China's high-end Wood based panel machinery manufacturing enterprise.
According to your own conditions like the budget, factory room and other factors, we can offer you the suitable, good and high quality machine for help you produce good quality panel.
For us, we know clearly that only keep machine good quality, can let us develop longer and better. Therefore, we always keep to choose good material and parts to make our machine, and during the whole machine production process, be made by experienced workers, and through many times test and monitor, to make sure each production step is good, to make sure the whole machine is good.
We offer comprehensive after-sales service assurance. If you are dissatisfied with your goods or discover any quality issues, please contact us promptly. We are dedicated to resolving issues and providing satisfactory solutions.
Welcome contact us for more information
