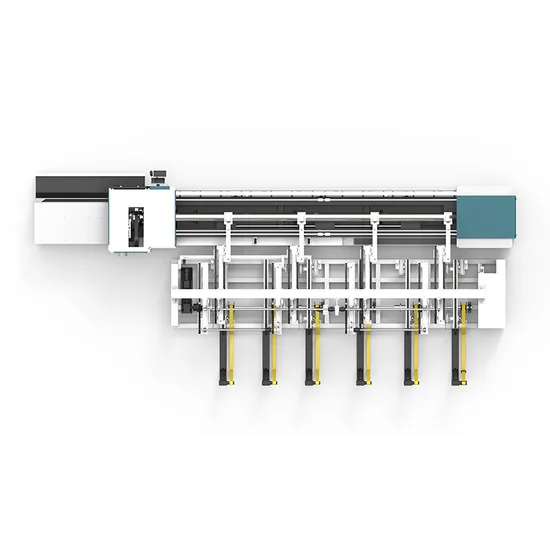

Lxshow 1500W Optical Top Fiber Laser Tube Cutting Machine Price for Beginners

Product Description

LX62THA is fast speed mild steel cnc fiber laser cutting machine with 3000*1500mm working area, which consist of machine tool,motion parts, electrical equipment control parts, and other assist parts. Via control system to operation three axis motion parts,so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis of aluminium stainless steel sheet cutting machine adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.

Model	LX62THA
Power	Raycus 1000w
Cutting speed	Max 80m/min (Depending on material thickness)
"y" axis single feeding length	1200mm
"z" axis adjustment range	65mm
"w" axis adjustment range	360°
Machine repeat positioning accuracy	±0.05mm/1000mm
Machine positioning accuracy	±0.1mm
Maximum acceleration	1.2G
Electricity demand	380V / 220V
Cutting accuracy	±0.1mm
Accuracy	±0.1mm
Max . raw material length (mm)	≤6200
Max. finished part length (mm)	1200
Pipe remain length (mm)	180
Multi-funtional cutting	Mitre cut ,rectangular ,slot,square, circular ,cold mouth ,special profiles

* About Jinan Lingxiu Laser Equipment Co., Ltd.is established in July 2004, owns more than 500 square meters of researching and office
space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and
are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries
and areas,and supply OEM service for more than 30 manufactures.
After-sales Team
Q: Do you have CE document and other documents for customs clearance? A: Yes, we have original. At first we will show you and after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.Q: Payment terms?A:****** trade assurance/TT/West Union/Payple/LC/Cash and so on.Q: I don't know how to use after i receive or i have problem during use, how to do?A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide door service if you need.Q: I don't know which one is suitable for me ?A :just tell us below information1) Max work size:choose most suitable model.2) Materials and Cutting thickness:Power of laser generator.3) Business industries:We sell a lot and give advice on this business line.
Q: If we need Lingxiu technician to train us after order,how to charge? A:1) If you come to our factory to get training,it is free for learning.And the seller also accompany you in factory 1-3 working days.(Every one learning ability is different,also according to details)2) If you need our technician go to your local factory to teach you ,you need to bear the technician's business travelling ticket / room and board/ 100 USD per day.
