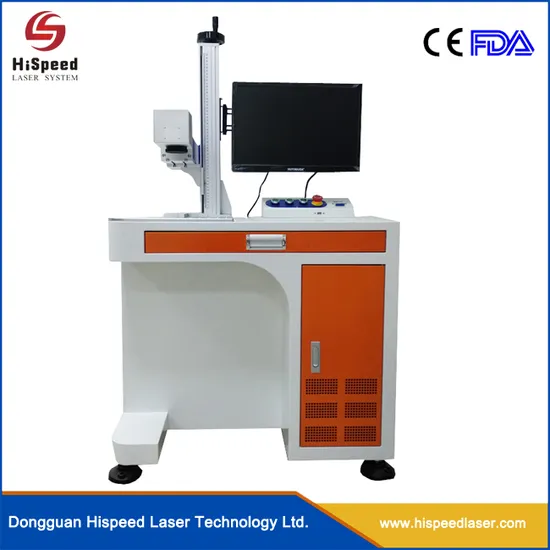

20W/30W/60W/100W Pet Tag Fiber Laser Marking Machine with Ce & FDA

Product Description

20W/30W/60W/100W Pet Tag Fiber Laser Marking Machine with Ce & FDA
>>>>>Equipment Description<<<<< Marking on various metal and some plastic material No consumables, free Maintenance Stable performance, no faulty in long time working Long lifetime upto 100,000hours High marking speed, high efficiency, high precision Software with powerful edit function but easy operation Air cooling design, compact structure >>>>>>>Application<<<<<<<
Fiber laser marking machine wide range application,mainly for all kinds of metal and plastic.Especially suitable for hardware tools,kitchenware knifes,plastic seals products ,metal jewelry,label,integrate ciruits,frames,plumbing fittings and other products.
>>>>>>Technical Parameters<<<<<<

Model	YLP-20J	YLP-30J
Power	20W	30W
Wavelength	1064nm	1064nm
Beam Quality	M2<1.3	M2<1.3
Output Power	10%-100%(continuously to be adjusted)	10%-100%(continuously to be adjusted)
Output Frequency	20KHz-100KHz(continuously to be adjusted)	20KHz-100KHz(continuously to be adjusted)
Power Stability(8h)	<±1%rms	<±1%rms
Focus Spot Diameter	<0.01mm	<0.01mm
Engraving Range	≤400*400mm(customized)	≤400*400mm(customized)
Engraving Depth	1.2mm	1.2mm
Engraving Speed	800 standard characters/second	800 standard characters/second
Minimum Line Width	0.012mm	0.012mm
Minimum Character	0.1mm	0.1mm
Repeated Accuracy	±0.003mm	±0.003mm
System Operation	Windows XP/2000/98	Windows XP/2000/98
Cooling Mode	Air Cooling	Air Cooling
Environment Temperature	10ºC~35ºC	10ºC~35ºC
Environment Humidity	20%-80%	20%-80%
Power Requirement	220V/Singlephase/50Hz/<400W	220V/Single phase/50Hz/<400W
Life of Laser Module	100000Hrs	100000Hrs
Host Size	800mmx650mmx1435mm	800mmx650mmx1435mm

Q1: What's the warranty?
A1: Two years for laser source, one year for other parts, change or repair the broken parts during warranty, our
FAE will teach you how to remove the broken parts by video.
Warranty excluding man-made damage.
We are real warranty based series number on the machine, not false or empty promises, any too long time warrantyis unreliable, ourt warrannty is effective and enforceable.
Q2: What's the package?
A2: We have 3 layers package. For the outside, we adopt wood craft case.
In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer,
the machine is covered by thickening plastic Bag for waterproof.
Q3: How to install and run the machine?
A3: You will get details in user manual, you only need install the column with laser path and put on monitor of computer.
You will get a CD of orginal marking software and online video about basic operation.
You also will get a software operation manual and you can be a laser marking master after reading and practics.
You can send your questions to our online after-serive 24 hours.
>>>>>>Company Information<<<<<<
Hispeed laser company is a professional Laser Marking Machine Manufacturer , The company focuses on the development and innovation of a complete set of laser processing and application solutions for customers. The core products are "Fiber laser marking machine, UV laser marking machine and CO2 laser marking machine" as the core products. The company has formed three major products series and targeted solutions for different segments, different sizes and different applications for advertising, industrial manufacture and so on. It is a more influential equipment manufacturer in the laser application industry.
The growth of Hispeed laser company is the process of serving customers and growing up with customers. With gratitude, we do everything in our heart and meet every challenge with confidence.
>>>>>>>>>Contact Us<<<<<<<<<
Hispeed Laser is a real manufacturer of fiber laser marking machine,contact us for further information if you are interested,thanks a lot.
