Humidity Temperature Measuring Equipment Temperature Humidity Control Equipment Environmental Chamber Environmental Testing Climate Test Chamber

Product Description

We are the main equipment supplier for simulated environmental testing equipment.
What is the main equipment for simulated environmental testing?
Simulated environmental testing equipment creates controlled laboratory conditions that mimic real-world environmental conditions in order to test and evaluate the performance of products and materials.
Some of the main equipment used for simulated environmental testing include:
Climate Chambers: used to simulate a wide range of temperature and humidity conditions, and are commonly used for testing electronic components, automotive parts, and other products that may be impacted by environmental conditions.
Altitude Chambers: used to simulate high-altitude conditions, such as those experienced by aircraft, spacecraft, and other products that must function at high altitudes.
Thermal Shock Chambers: used to test products' ability to withstand rapid changes in temperature, simulating conditions such as sudden exposure to extreme heat or cold.
Salt Spray Chambers: used to simulate the corrosive effects of salt spray and humidity on products, and are commonly used for testing the durability of metal products, such as automotive parts, electronic components, and more.
Rain and Water Spray Chambers: used to simulate the effects of rain and water exposure on products, such as the water resistance of electronic devices and building materials.
UV Aging Chambers: used to simulate the effects of long-term exposure to ultraviolet (UV) radiation on products, and are commonly used for testing the weathering resistance of plastics, coatings, and other materials.
Vibration Test Equipment: used to simulate the effects of vibration and shock on products, such as those experienced during transportation or operation.
These are some of the main types of equipment used for simulated environmental testing. The specific equipment required will depend on the environmental conditions being simulated and the purpose of the testing.
Humidity temperature measuring equipment Temperature humidity control equipment Environmental chamber Environmental testing Climate test chamber

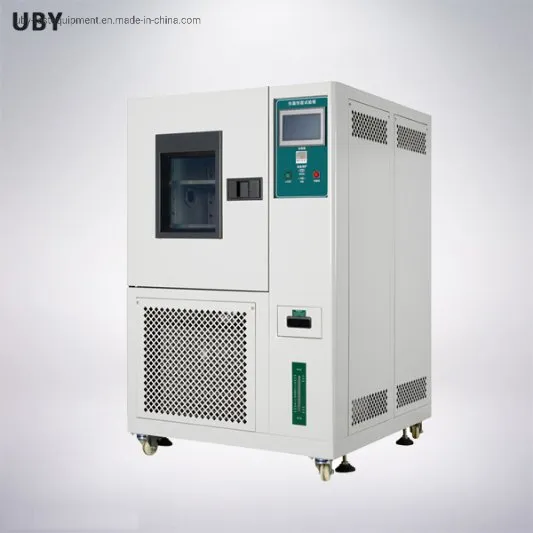

Pharmaceuticals Stability Test Chamber is perfectly designed for the high requirements of stability studies and climatic tests. Our Stability Chambers were specifically developed to meet FDA/ICH stability requirements generating exceptional control and uniformity of both temperature and humidity. Pharmaceuticals Stability Test Chamber feature various safety feature, audiovisual alarms, 21 CFR part 11 software, and a vast range of options and is the most preferred choice for stability studies. Every Pharmaceuticals Stability Test Chamber repeatedly produces required conditions, structural integrity that keeps the chamber working properly through years of demanding test cycles, and measuring equipment that precisely records all test data.
Long Term: 2-8°C, 25°C/60% RH, 25°C/40% RH, 30°C/35% RH or 30°C/65% RH
Intermediate: 30°C/65% RH
Accelerated: 40°C/75% RH, 25°C/60% RH
Pharmaceuticals Stability Test Chamber Features:
1. Graceful appearance, circularly shaped body, surface treated with mist strips. Easy to operate, safe, and reliable.
2. Rectangular double-paned viewing window for viewing the sample under test, with interior light
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh is used as a compressor, with environment-friendly refrigeration R23 or R404A
6. LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, with quick or ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.

Internal Dimension WxHxD (mm)	400x500x400	500x600x500	600x750x500	600x850x800	1000x1000 x800	1000x1000 x1000
External Dimension WxHxD (mm)	950x1650x950	1050x1750x1050	1200x1900 x1150	1200x1950 x1350	1600x2000 x1450	1600x2100 x1450
Temperature Range	Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 150°C
Humidity Range	20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional , need Dehumidifier)
Indication resolution/ Distribution uniformity of temperature and humidity	0.1°C; 0.1% R.H/±2.0°C; ±3.0% R.H.
Indication resolution/ Distribution uniformity of temperature and humidity	±0.5°C; ±2.5% R.H.
Temperature Rising / Falling Velocity	Temperature rising approx. 0.1~3.0°C/min temperature falling approx. 0.1~1.5°C/min; ( Falling Min.1.5°C/min is optional)
Inner and Outer Material	The interior material is SUS 304# stainless steel, the exterior is stainless steel or sees cold-rolled steel wit h paint coated.
Insulation Material	Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
Cooling System	Wind cooling or water cooling, (single segment compressor-40°C, double segment compressor -70°C)
Protection Devices	Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity, and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories	Inner door with operation hole, Recorder, Water Purifier, Dehumidifier
Compressor	French Tecumseh Brand, Germany Bizer Brand
Power	AC220V 1 3 lines, 50/60HZ , AC380V 3 5 lines , 50/60HZ
Approx. Weight (Kg)	150	180	250	320	400	450

Our service:
During the whole business process, we offer a Consultative Selling services.
1)Customer inquiry process:
Discussing testing requirements and technical details, suggested suitable products to customer to confirm.
Then quote the most suitable price according to customer requirements.
2)Specifications customize process:
Drawing related drawings to confirm with customer for customized requirements. Offer reference photos to show the appearance of the product. Then, confirm the final solution and confirm the final price with the customer.
3)Production and delivery process:
We will produce the machines according to confirmed PO requirements. Offering photos to show the production process.
After finishing production, offer photos to the customer to confirm again with the machine. Then do your own factory calibration or third-party calibration(as per customer requirements). Check and test all the details and then arrange packing.
Delivering the products is confirmed shipping time and informed the customer.
4)Installation and after-sale service:
Defines installing those products in the field and providing after-sales support.
FAQ:
1. Are you a Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are the one of professional manufacturers of Environmental Chambers, Leather shoe testing equipment, and Plastic Rubber testing Equipment... in China. Every machine purchased from our factory has 12 month warranty after shipment. Generally, we offer 12 months for FREE maintenance. while considering sea transportation, we can extend 2 months for our customers.
Moreover, If your machine doesn't work, you can send us an e-mail or call us we will try our best to find the problem through our conversation or by video chat if necessary. Once we have confirmed the problem, the solution will be offered within 24 to 48 hours.
2. What about the delivery term?
For our standard machine which means normal machines, If we have stock in the warehouse, is 3-7 working days;
If there is no stock, normally, the delivery time is 15-20 working days after payment is received;
If you are in urgent need, we will make a special arrangement for you.
3. Do you accept customization services? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines but also customized machines according to your requirements. And we can also put your logo on the machine which means we offer OEM and ODM service.
4. How can I install and use the machine?
Once you have ordered the testing machines from us, we will send you the operation manual or video in English version through Email.
Most of our machine is shipped with a whole part, which means it is already installed, you just need to connect the power cable and start to use it. And if it's necessary, we can also assist you to install your machine on-site.
