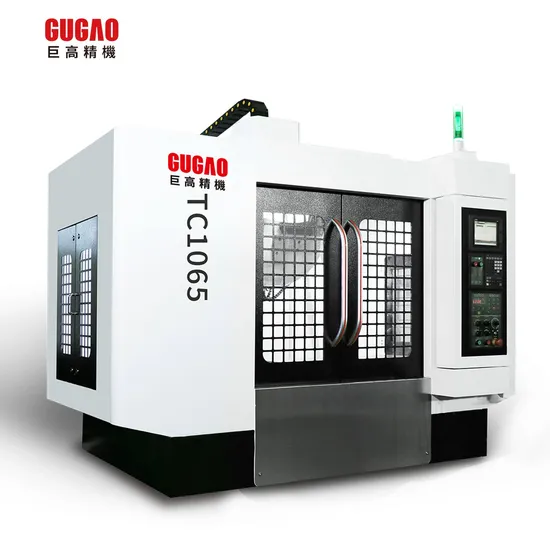

Tc1065 Premium 4 Axis CNC Milling Tools Reliable Pricing CNC Vertical and Horizontal Centers
Basic Info.
Model NO.
TC1065
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Performance Classification
High-End CNC Machine Tools
Certification
ISO 9001
Condition
New
Distance From Spindle End Face to Workta
150-450 mm
Worktable Size(L*W)
1100*650 mm
Spindle Diameter Spindle Bore Taper
100/ Bbt30
Max Spindle Speed
20000 Rpm
Magazine Capacity
21
(X/Y/Z) Positioning Accuracy
0.010 mm
Transport Package
Wooden Base + Vacuum Sealed Paper + Pearl Cotton
Specification
2700*3220*2900mm
Trademark
GUGAO
Origin
China
HS Code
84571010
Production Capacity
8000 Pieces/Year
Packaging & Delivery
Package Size
270.00cm * 322.00cm * 290.00cm
Package Gross Weight
4200.000kg
Product Description
Detailed PhotosProduct Description
TC1065 Production Description
The whole machine: The machine tool adopts a column fixed and a cross slide moving structure. The X, Y, and Z axes adopt linear rolling guides, and the whole machine has high rigidity, high stability and high reliability. The large-flow fully enclosed protection has a beautiful shape and is easy to operate and maintain.
Spindle box: It adopts a high-speed spindle unit, the spindle adopts BT30 specifications, and has a central blowing function.
Tool magazine: The tool magazine adopts a clamp arm tool magazine with reliable quality and stable performance. The tool magazine adopts a clamp arm tool change, the tool magazine capacity is 21, and the tool change time is fast.
Drive: The three-axis motor and the high-precision ball screw adopt a direct drive method to improve the transmission rigidity and positioning accuracy. The three linear coordinate axes all adopt linear rolling guides, and the machine tool has small vibration when feeding at high speed and no creeping when feeding at low speed.
Main Paremeters
| Name | Unit | Parameter | |
| Travel | Three axis travel | mm | 1000/650/300 |
| Distance from spindle end face to worktable center | mm | 150~450 | |
| Worktable | Worktable Size(L×W) | mm | 1100×650 |
| Maximum load-bearing capacity of worktable | kg | 450 | |
| T-shaped slot (width × spacing × quantity) | mm | 14×120×5 | |
| Spindle | Spindle diameter Spindle bore taper | ∅100/BBT30 | |
| Max. spindle speed | rpm | 20000 | |
| Motor power | kW | 3.7/5.5 | |
| Feed Speed | Three axis fast moving speed(X/Y/Z) | m/min | 30/48/48 |
| Three axis feed speed | m/min | 10/10/10 | |
| Magazine | Magazine capacity | 21 | |
| Max tool diameter/length/weight | ∅60mm/200mm/3kg | ||
| Maximum tool diameter (full tool/adjacent empty tool) | mm | 60/80 | |
| Tool exchange time (T-T) | s | 1.3 | |
| Accuracy | (X/Y/Z) Positioning accuracy | mm | 0.010 |
| (X/Y/Z) repositioning accuracy | mm | 0.006 | |
| Others | Linear rolling guide specifications(X/Y) | Ball 30/35/35 | |
| Ball screw specifications (X/Y/Z) | mm | 40/32/32 | |
| Servo motor specifications (X/Y/Z) | N.m | 9/13.7/22.5 | |
| Air source/pressure | 280L/min 6~8 Bar | ||
| Total electrical capacity | KVA | 15 | |
| (X×Y×Z)Machine size (X×Y×Z) | mm | 2700×3220×2900 | |
| Estimated weight | kg | 4200 | |
