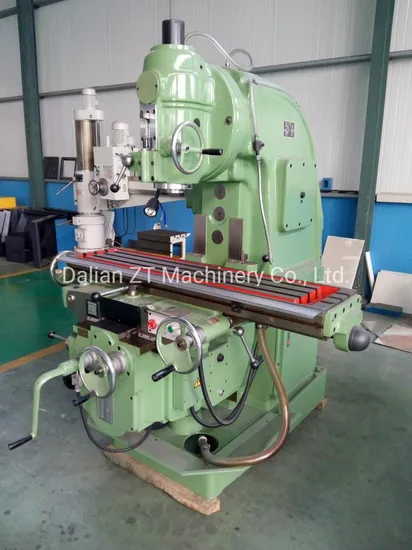

X5040 Conventional Vertical Knee-Type Milling Machine

Product Description

Features:
* Easy to operate; reliable performance;
* Used for machining kinds of surface, groove and gears
* With the optional rotary table, dividing head etc, the machine can have larger use range;
The knee type vertical milling machine is general purpose machine. The machine features easy operation and high stability. This model of milling machine are widely
suited for flat surfaces, grooves and gear machining in various mechanical machining sectors. When being provided accessories such as universal milling head, rotary working table and indexing head etc. can enlarge the application of the machine.

Specification	Unit	X5040
Table size	mm	400X1700
T-slots(NO./Width/Pitch)		3/18/90
Longitudinal travel(manual/auto)	mm	900/880
Cross travel(manual/auto)	mm	315/300
Vertical travel(manual/auto)	mm	385/365
Rapid feed speed	mm/min	2300/1540/770
Spindle pore	mm	29
Spindle taper		7:24 ISO50
Spindle speed range	r/min	30~1500
Spindle speed step	steps	18
Spindle travel	mm	85
Max.swivel angle of vertical milling head		±45°
Distance between spindle nose and table surface	mm	30-500
Distance between spindle axis and colomn guideway	mm	450
Feed motor power	kw	3
Main motor Power	kw	11
Overall dimensions(L×W×H)	mm	2556×2159×2258

FAQ
1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
