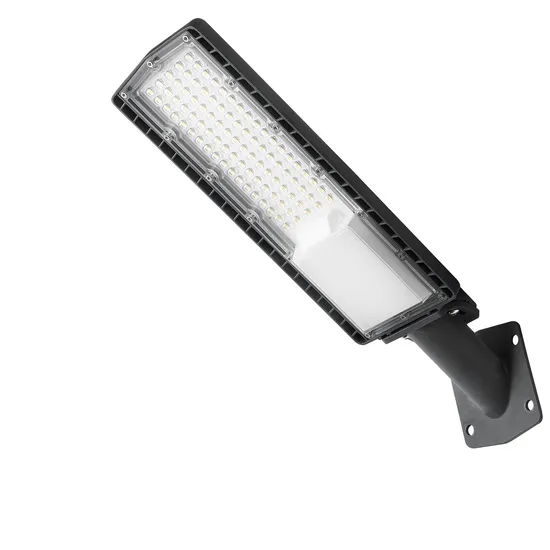

AC Dob PCB Design Low Price LED Street Light
Basic Info.
Model NO.
SF-50W
Lamp Body Material
Aluminum
Power
50-100W
Application
Square, Highway, Garden, Parking Lot
IP Rating
IP65
Input Voltage
160-260V
With Light Source
With Light Source
LED Chips Brand
Epistar
PCB
AC Dob Design
LED Chip
2835
Arm Size
50/60mm
Photocell
No
Lm/W
>140
Transport Package
Carton
Specification
460*122*75.6
Trademark
PTS
Origin
China
HS Code
9405499000
Production Capacity
30000PCS/Month
Product Description
Application This product is DOB design, no need seperate driver and product with competitive price. Small size with high power and lumen,Max power can be 100W.waterproof level is IP65. It can be widely used in urban roads, parks and squares, as well as commercial and residential area.
Detailed Photos
Product Size
| Model | LxWxH |
| SF-50W | 460*122*75.6mm |
| SF-100W | 537.2*166*75.6mm |
Product Parameters
| Element | SF-50W | SF-100W |
| Power(W) | 50W | 100W |
| Efficiency(Lm/w) | 140 | 140 |
| CRI | 80 | 80 |
| Input Voltage | AC 160-260V 50-60Hz | AC 160-260V 50-60Hz |
| Temperature Color(K) | 3000/4000/5000/6500 | 3000/4000/5000/6500 |
| Power Factor | 0.5 | 0.5 |
| Surge Protection(KV) | 4 | 4 |
| Lens | TypeI/II/III/IV | TypeI/II/III/IV |
| IP Rate | 65 | 65 |
| Working Temperature | '-40°~+50° | '-40°~+50° |
Product Features1. Product with DOB design PCB, no need seperate driver and with competitive price
2. Use High lumen 2835 led chip and finished product with good lumen
3. Small body with high power, maximum power can be 100W.
4. IP65 degree
5. Product with long lifespan and 3 years warranty
6. Professional optical design and excellent light distribution
7. 50mm and 60mm diameter pipe arm can be choosed
Installation Instructions
